SP-D10
Product Description

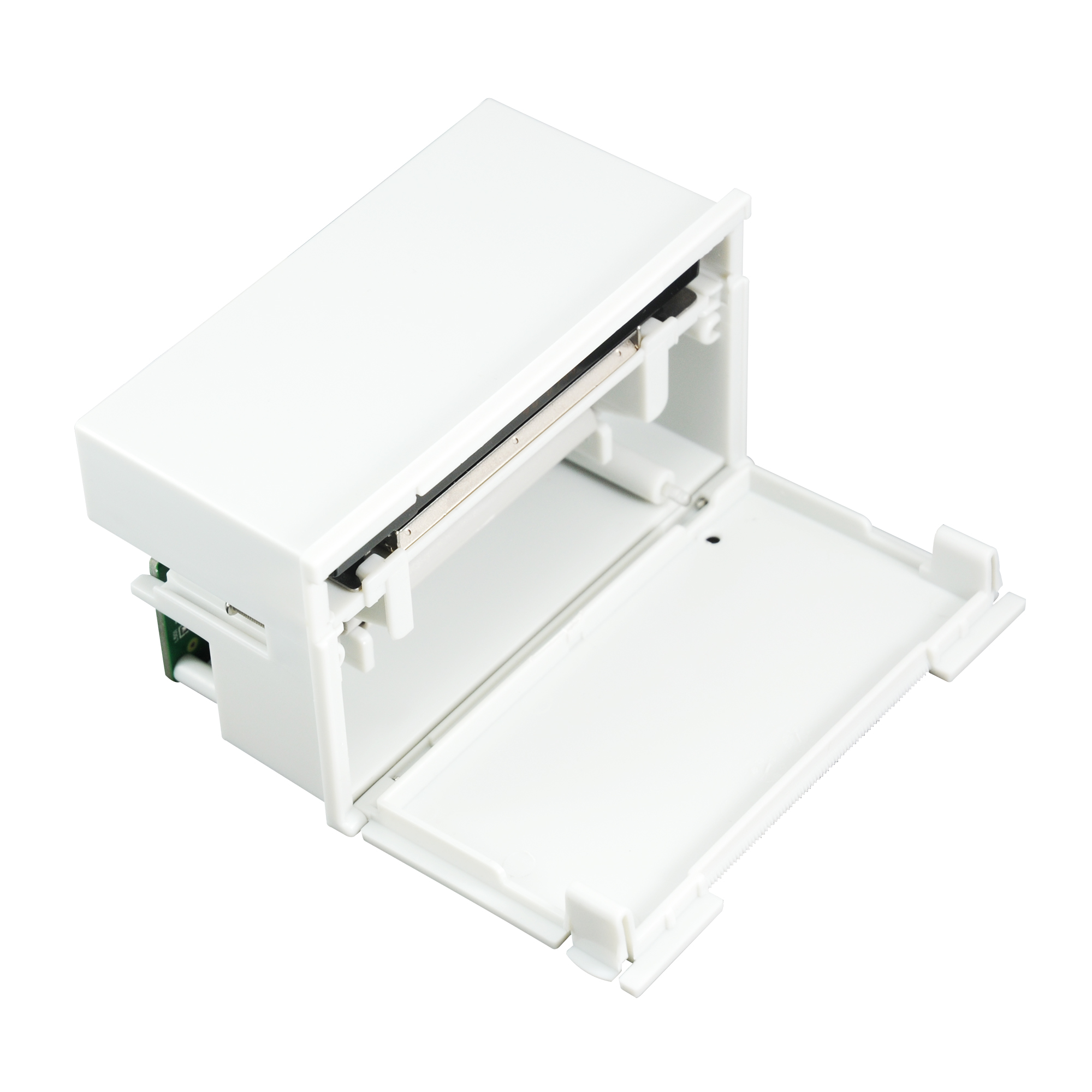

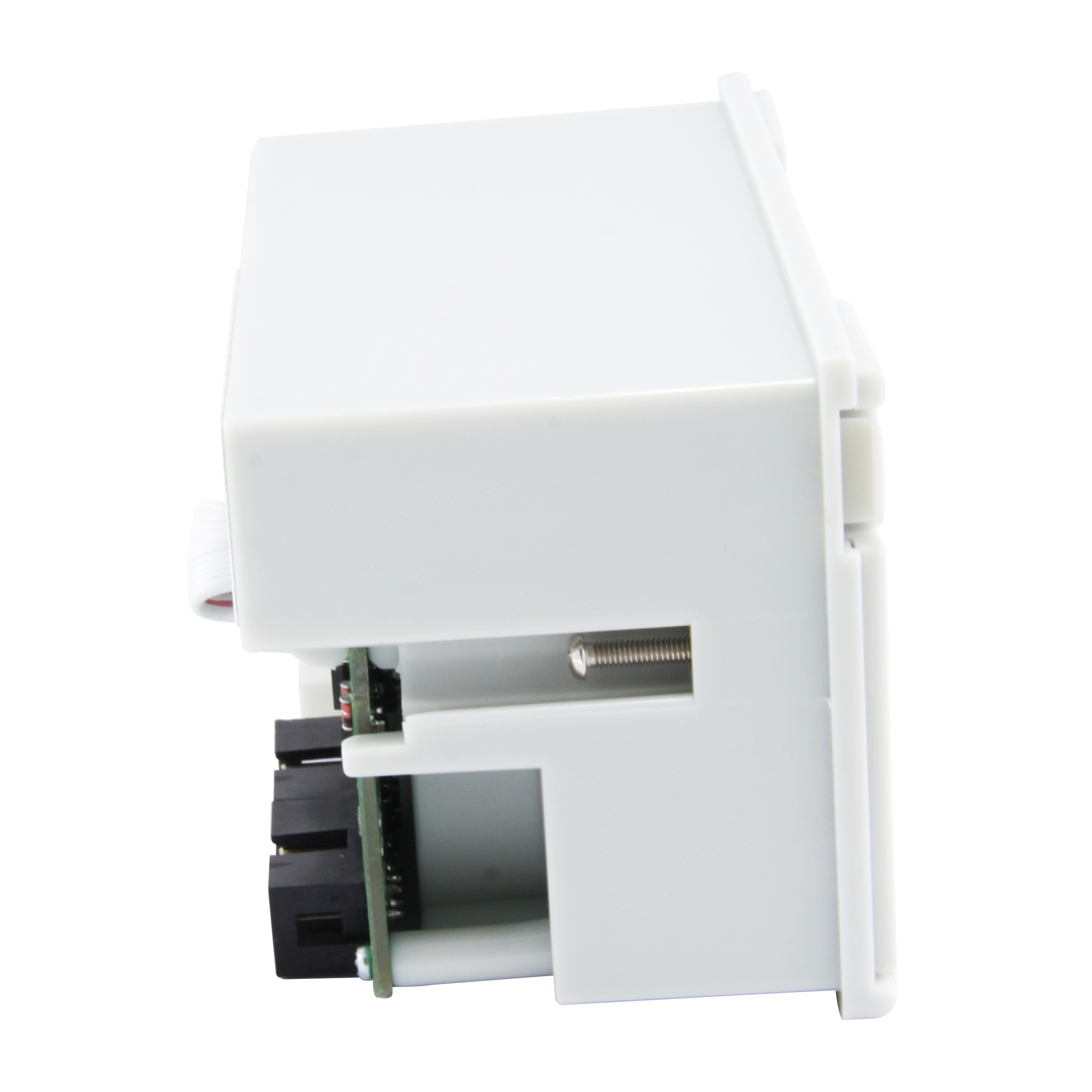

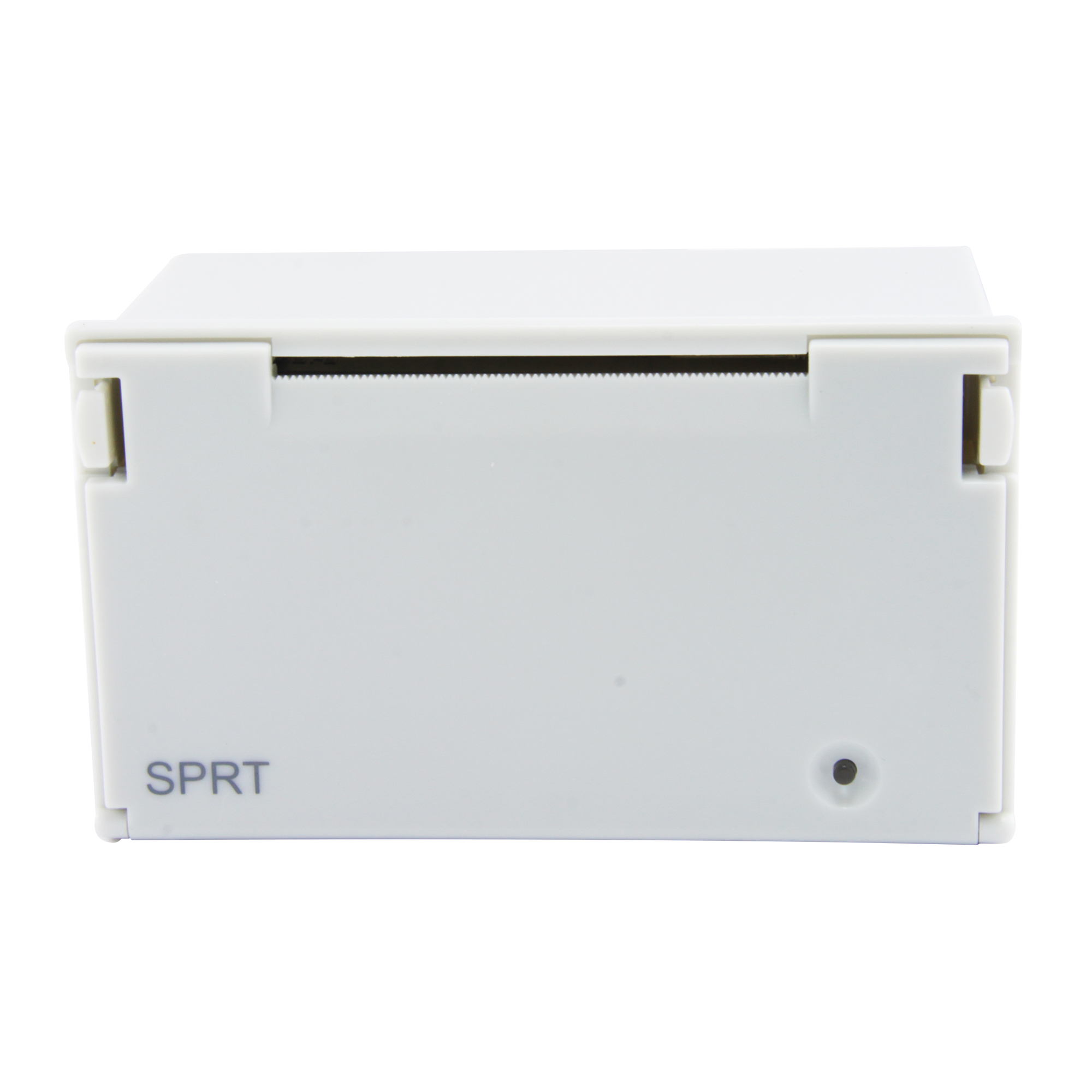

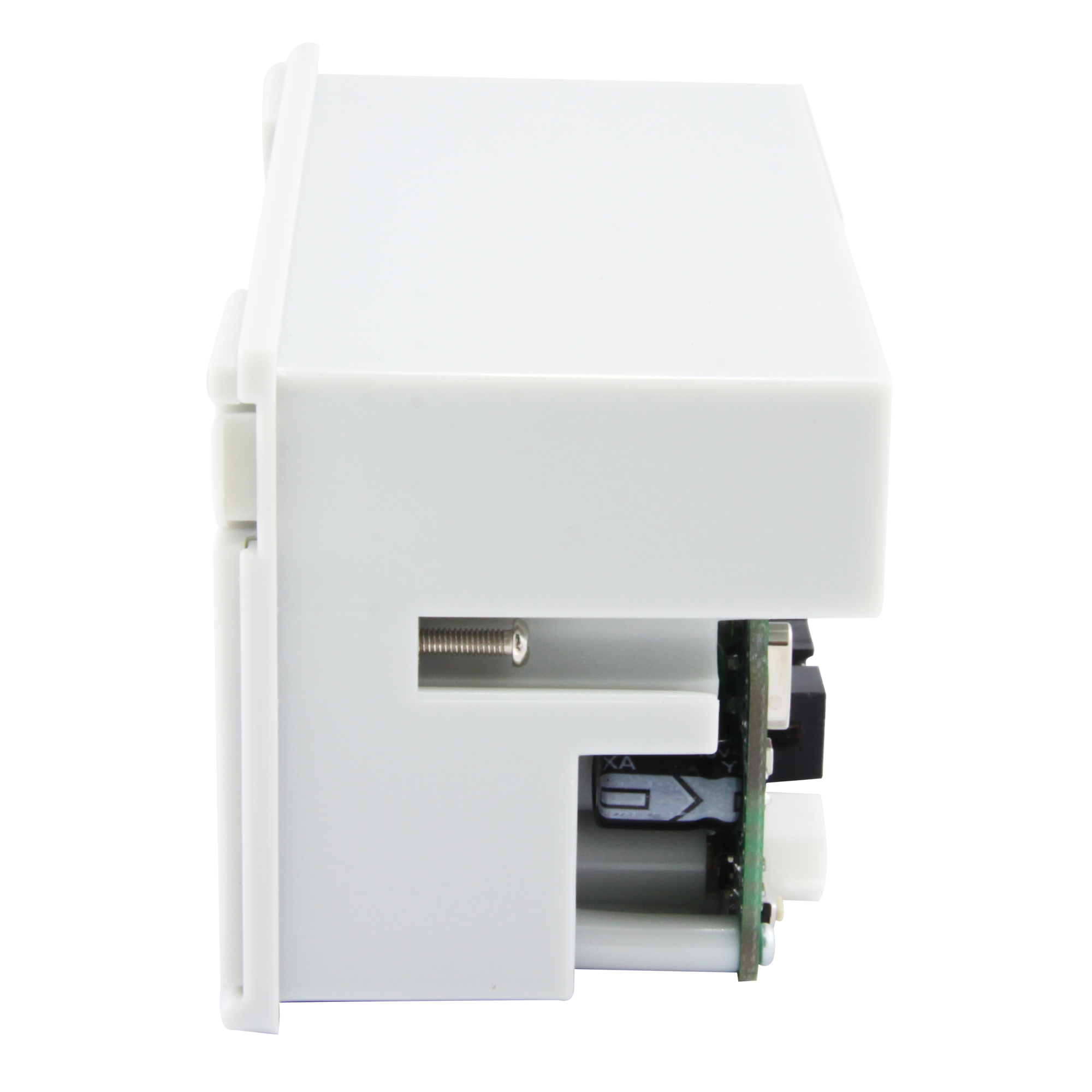

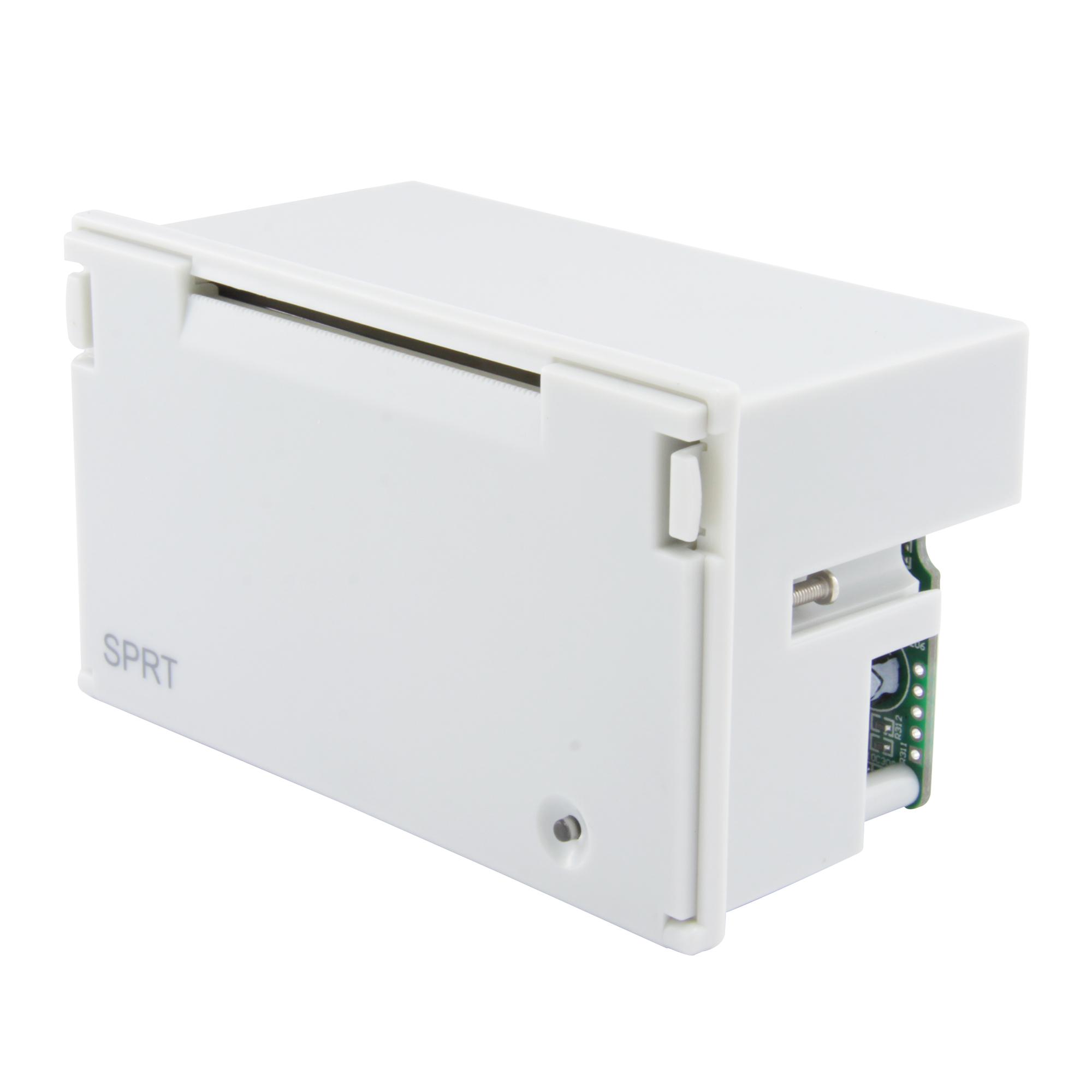

The SP-D10 is a compact and robust needle-type micro printer, specifically designed for long-lasting stable operation and operational flexibility. It supports bi-directional paper tearing (both top and bottom), providing users with convenient and flexible receipt handling. Through an optimized internal structural layout, its embedding depth is significantly shallower than similar products, saving more space for integrated systems. This printer supports multiple interfaces, including parallel port, serial port (RS-232 or TTL), and 485 interface, ensuring broad compatibility with various host devices and systems. Utilizing reliable needle dot matrix printing technology, it delivers clear and durable printing results on multi-part carbonless paper.
Supports multiple interfaces: Parallel, Serial (RS-232/TTL), and 485, along with dual paper widths (58mm/44mm). Configurable via host software or manual buttons.
Optimized internal layout with shallower embedding depth than similar products, ideal for space-constrained integration.
Utilizes impact dot matrix printing for reliability on multipart forms. Features bi-directional paper tearing for convenient operation.
Suited for finance, testing instruments, industrial manufacturing, medical detection, and more.
The compact printer series offers versatile size and functional options tailored for diverse industrial and commercial uses, primarily supporting POS receipt printing and test result output with instruments.
The 58mm model with auto cutter is ideal for fire safety wall-mounted controllers (e.g., in hotels and retail stores), medical diagnostic devices, and environmental monitoring equipment. The 58mm model with auto cutter suits self-service kiosks, bank card terminals, and health monitoring devices such as blood pressure monitors. Meanwhile, the 80mm model with auto cutter is commonly applied in medical check-in systems, bank queue machines, self-service terminals, visitor systems, and point-of-sale machines, delivering reliable performance across automated and transactional environments.
Product Parameters
| Printing Method | Dot Matrix | |
| Printing Speed | 1.2 lines/s (16 Character/line), 0.7 lines/s ( Character/line), 0.4 lines/s (40 Character/line) | |
| Effective Printing Width | 33mm/48mm | |
| Character | Character Set | ASCII, GB18030(Chinese) |
| Print Font | ASCII 6*17 | |
| Character per Line | 16/24/40 | |
| Paper Spec | Paper Type | Plain paper |
| Paper Width | 57.5± 0.5mm, 44± 0.5mm | |
| Paper Thickness | 0.06~0.08mm | |
| Paper Roll Diameter | Max: 40.0mm | |
| Roll Core Inner Diameter | 13mm(min.) | |
| Barcode | N/A | |
| Emulation | ESC/POS | |
| Driver | Windows98/2000/NT/XP/Vista/Win7 | |
| Interface | RS-232/Parallel | |
| Paper Supply Method | Semi-auto paper loading | |
| Power Supply (Adapter) | DC5V, 1.5A | |
| Printer Mechanism | EPSON Brand | |
| Auto cutter | Type | N/A |
| Life | ||
| Cutting Method | ||
| Physical | Outline Dimension (WxHxD) | 111 x 63.5 x 68mm |
| Installation Port Size (WxHxD) | 103.5 x 57.5mm x 64mm | |
| Color | Beige | |
| Weight | 200g | |
| Environment | Operating Temp | 0~ 50 °C |
| Operating Humidity | 10%~80% | |
