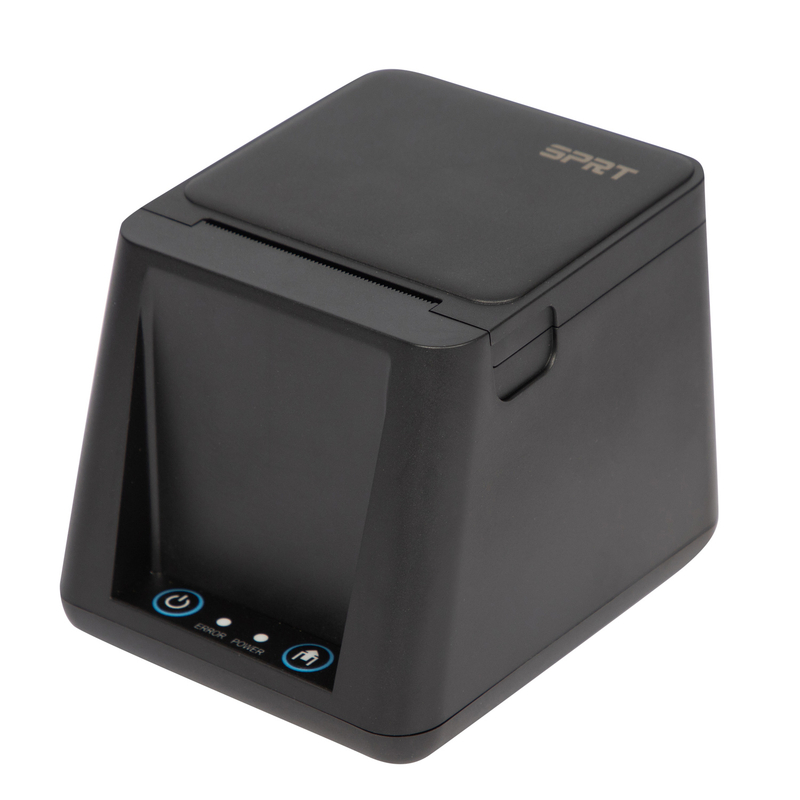

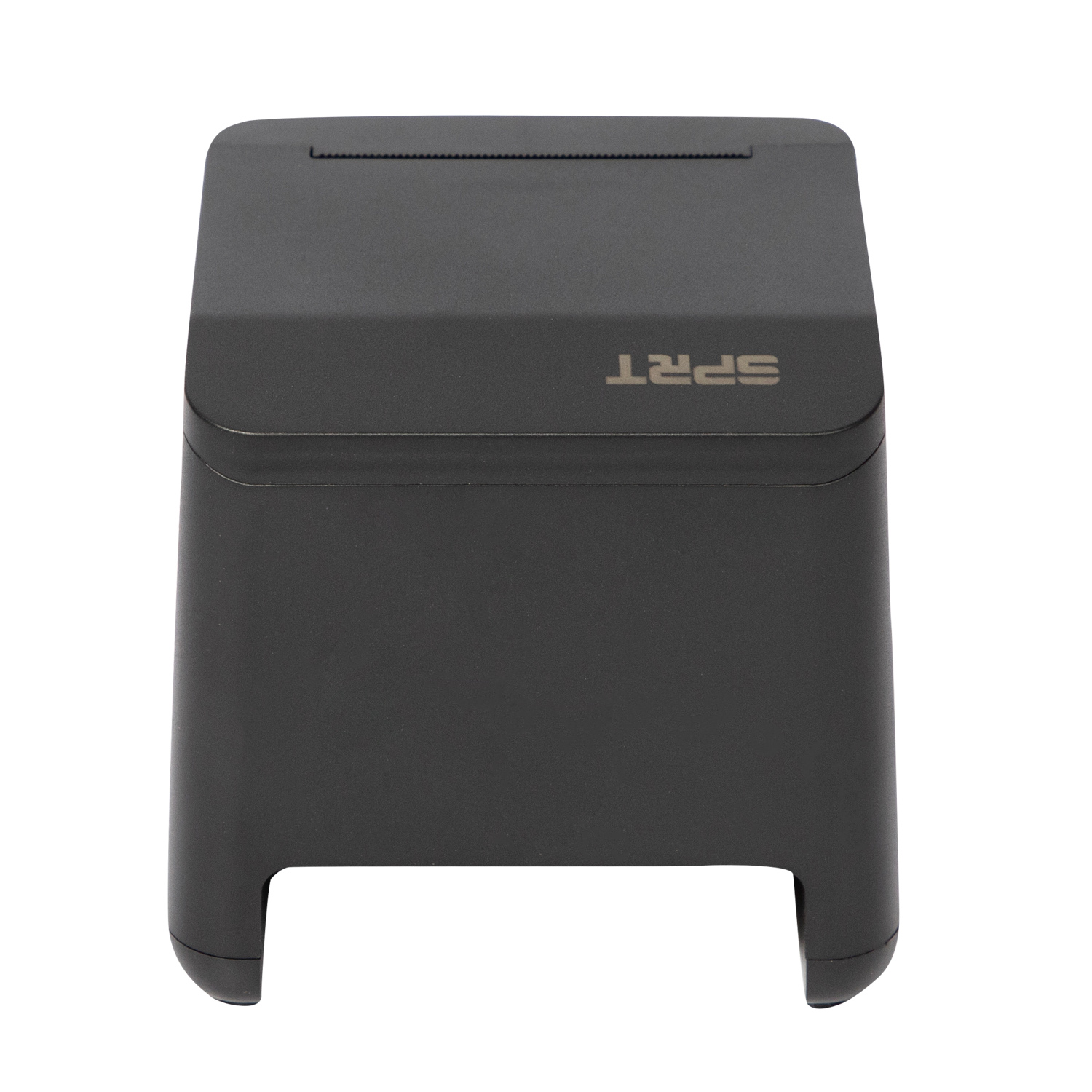

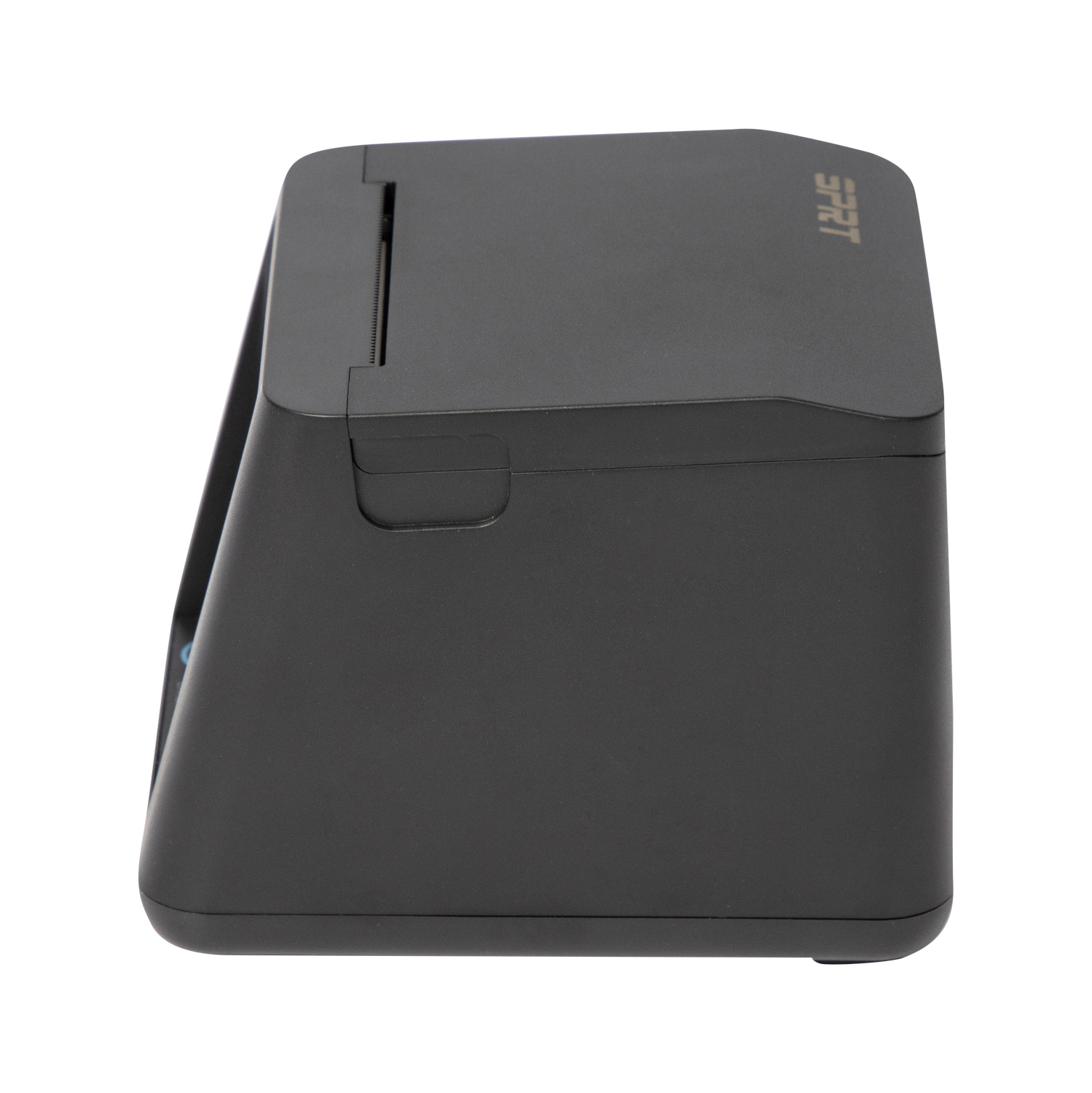

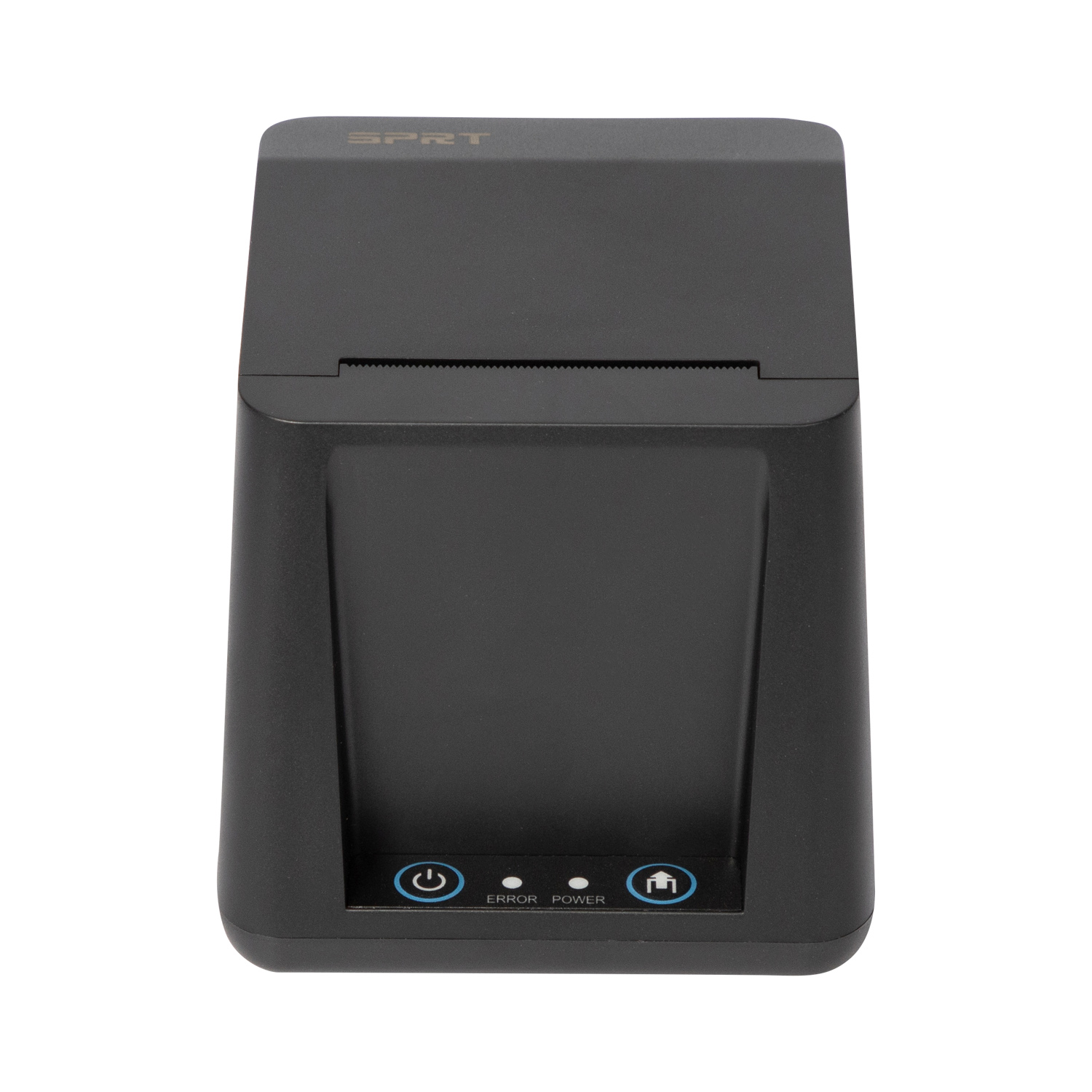

SP-POS5813 90mm/s 203dpi Mini Thermal Receipt Printer

SP-POS5813/POS5814 printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. Small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print.
  • SP-5813

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Product Description

Product Introduction

SP-POS5813/POS5814 printer is a new type line thermal printer, it features in fast speed print, low print noise, high reliability, perfect print quality and ribbon needless, avoiding the vexation of regular maintenance. SP-POS5813/POS5814 printer: small in outline dimension, simple operation, and extensive application, especially suitable for commercial cash register, PC-POS, bank POS and all kinds of receipts print.


Product Advantage

Print method: direct thermal

Print paper width: 57.5±0.5mm

Print density: 8 dots/mm,384 dots/line

Print speed: max 90mm/s

Reliability

(1) Print head life: 50km Using condition: Print 12 × 24 ASCII characters, print 50 lines each time, intermittent print repeatedly No more than 25% of each dot line can be printed simultaneously, and the same dot of each character line can be printed vertically no more than 11 times. Use specified thermal paper .

(2) Cutter life: 1500,000 cuts

Valid print width: 48mm

详情页2_01

详情页2_03

详情页2_04

详情页2_05

Product Parameters

Printing Method
Thermal Line
Resolution
8 dots/mm (203dpi)/ 384 dots/line
Printing Speed
90 mm/s
Effective Printing Width
48mm
Paper Width
57 .5mm±0.5mm
Custom Character Printing
Support
Graphics Printing
Support for printing graphics with different dot densities and downloading bitmap images for printing

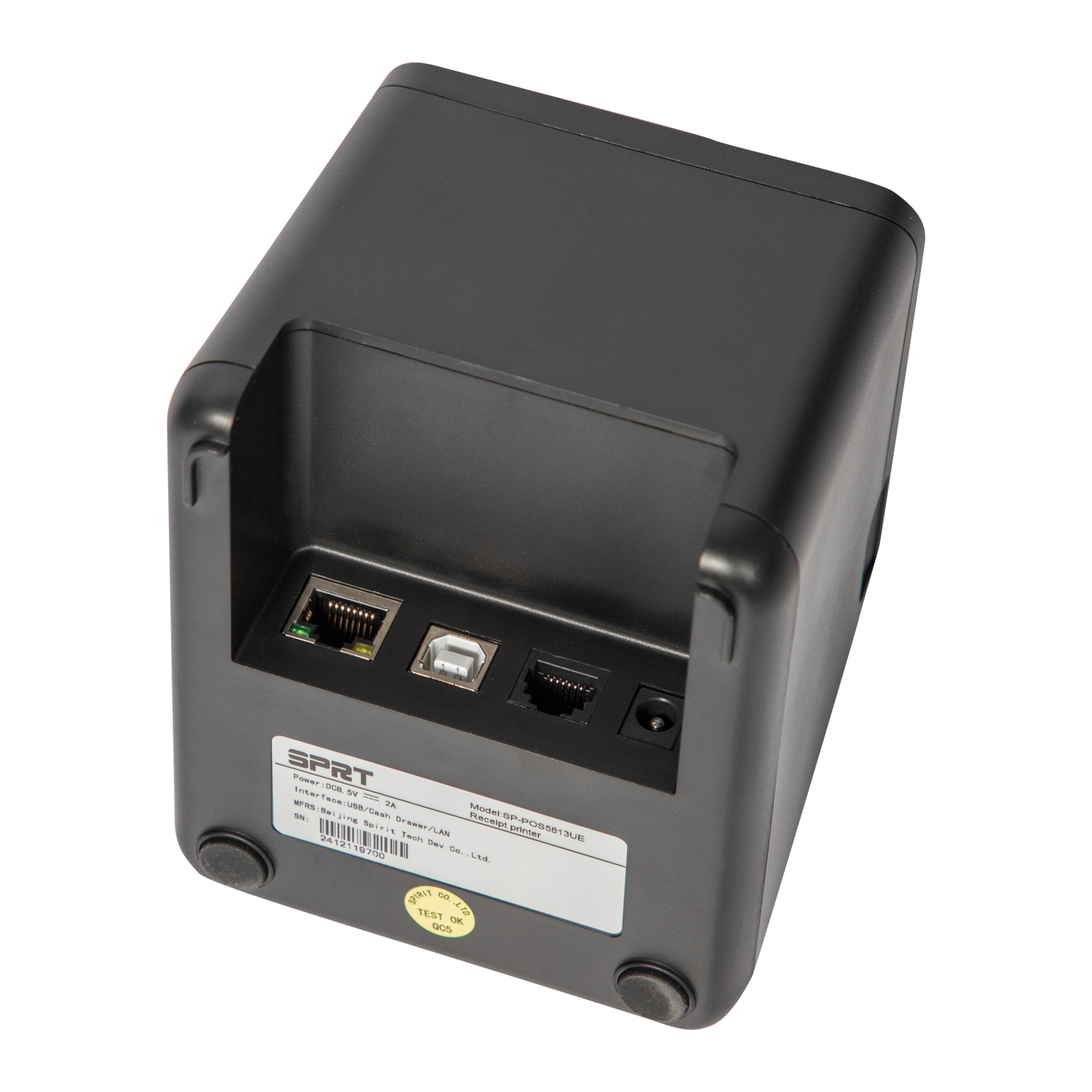

Interface
USB
Serial
Parallel
Bluetooth
Ethernet
cash drawer
Support function
Paper shortage alarm
overheat protection
buzzer
Cash drawer control
DC12V
1A
6-pin RJ-11 socket
Power Supply
Direct current power
DC8.5V,2A
Paper Type
Normal thermal paper 58ר 60mm
Paper Thickness
0.06mm~0.08mm

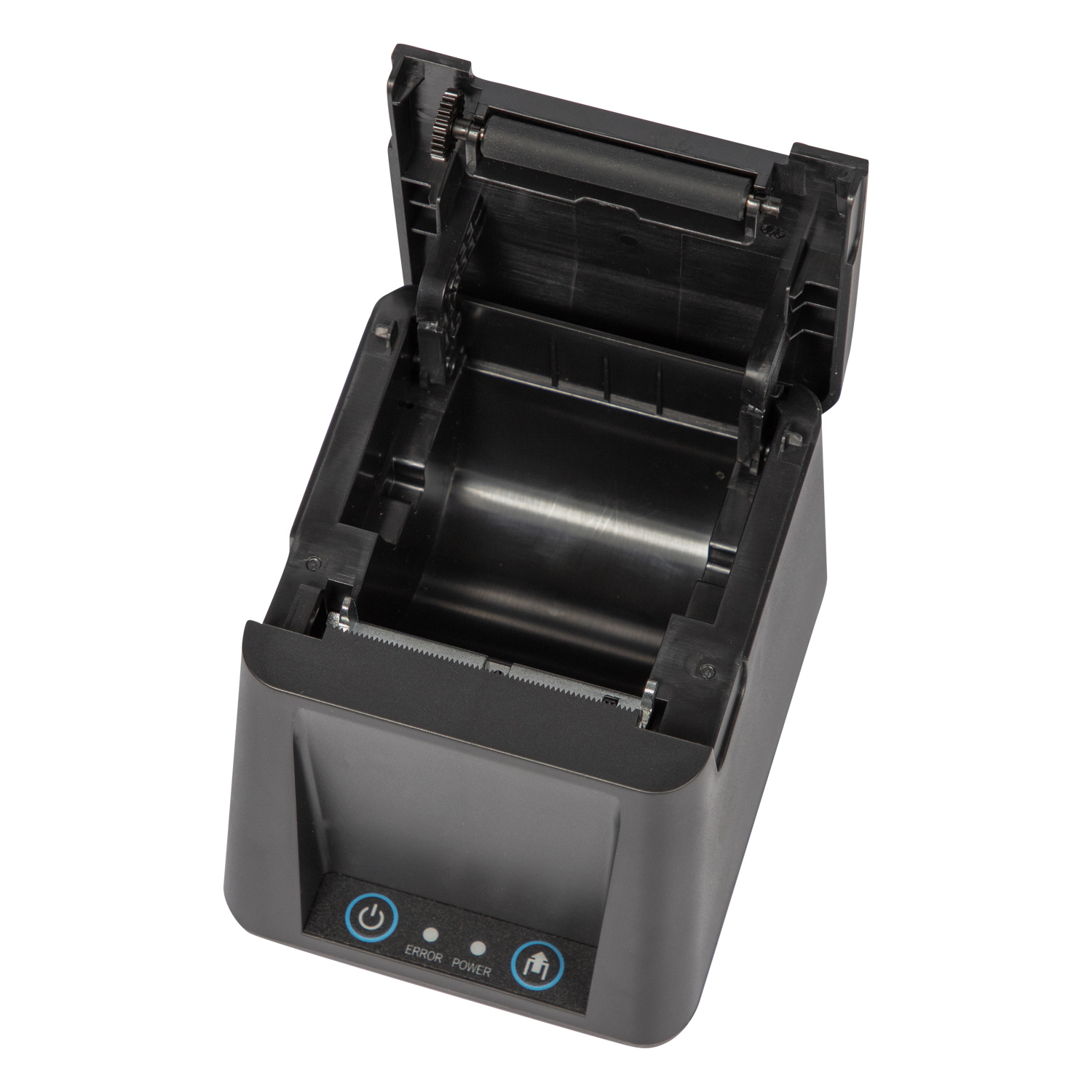

Paper loading
Easy paper loading
Paper Cutting Method
Manual
Dimension
120mm×100mm×95mm (L×W×H)
Weight
275 g (no paper roll)
Work environment/temperature/humidity
0-50°C (working environment temperature)
10-80% (relative humidity)
Save environment/temperature/humidity
-20~60℃(Save environment temperature)
10~90% (relative humidity)
