SP-TL54
Product Description

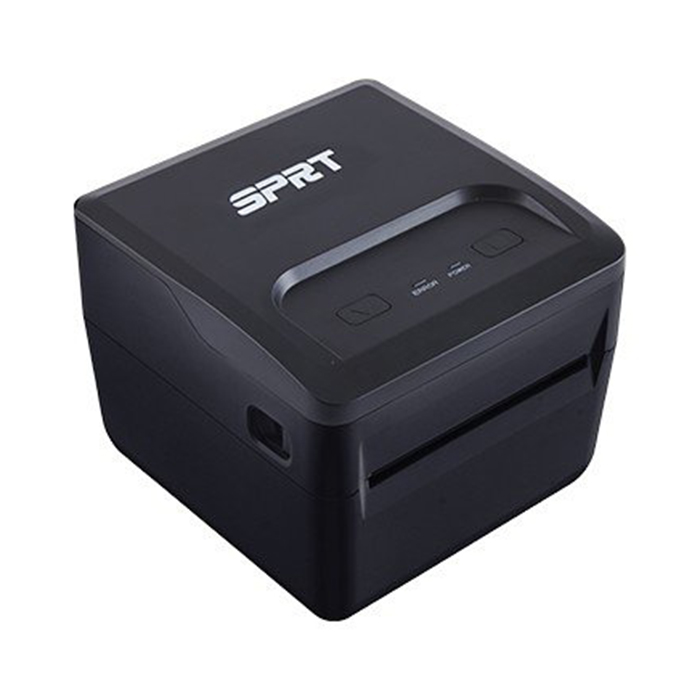

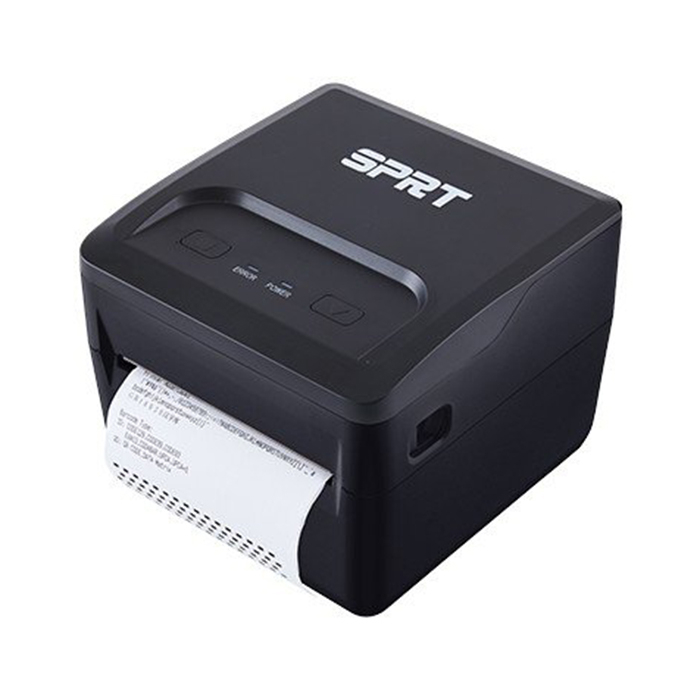

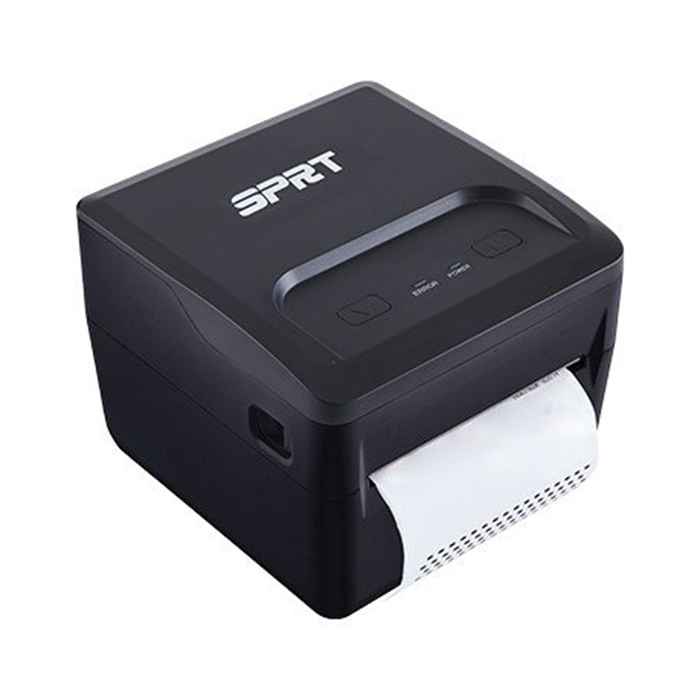

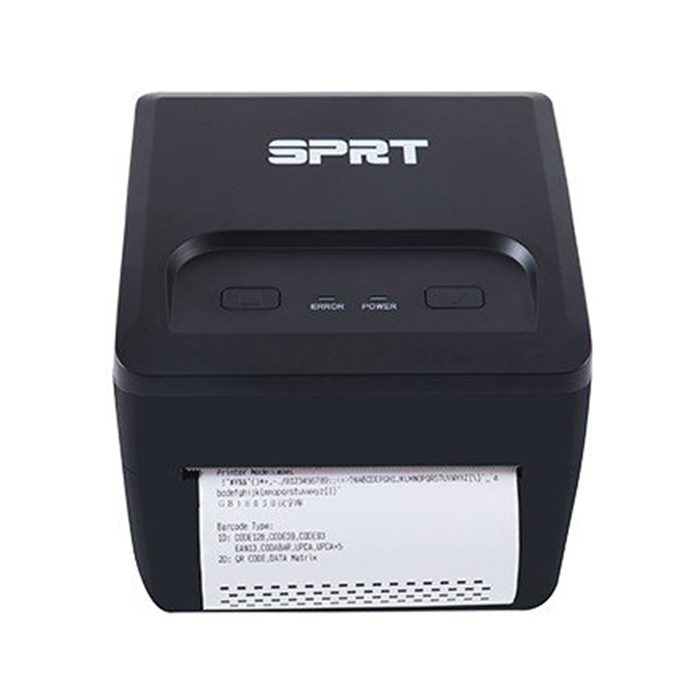

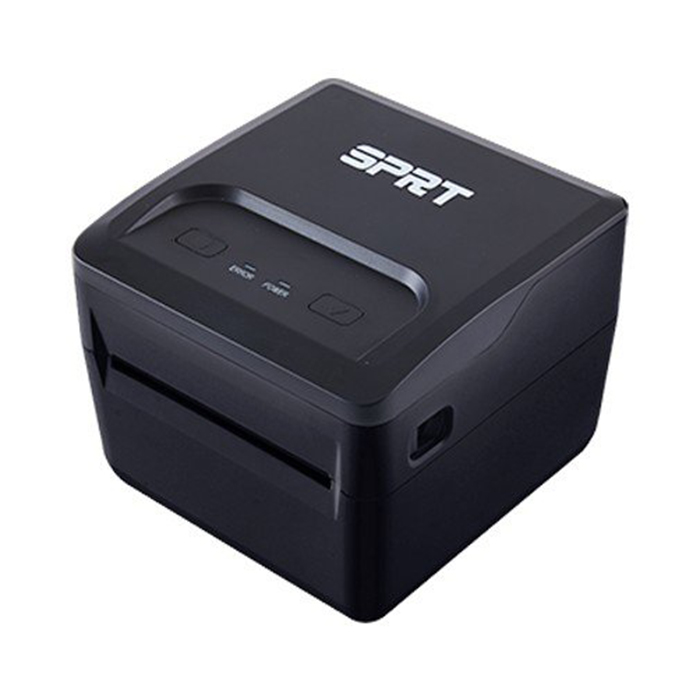

SPRT TL54 is a high-performance 4-inch direct thermal barcode printer engineered for efficiency and durability in commercial and light-industrial settings. With its wide media compatibility and high-speed printing, it is an ideal solution for generating large labels, shipping documents, and product identification tags.
Equipped with line thermal printing technology at a resolution of 8 dots/mm (203 dpi), it delivers clear text and sharp barcodes. The printer achieves a maximum print speed of 150mm/s, ensuring high throughput for demanding operations.
Designed for continuous use, the print head boasts a lifespan of up to 50 kilometers when used with specified thermal paper, minimizing maintenance needs and ensuring long-term reliability.
It supports a wide range of paper widths from 40mm to 112mm, with a maximum effective print width of 108mm. This flexibility allows it to handle various label and receipt sizes, including large format tags.
The printer supports extensive character sets and major 1D barcodes (如 CODE128, EAN13, CODE39) as well as 2D codes ( QR Code, Data Matrix), meeting diverse labeling and identification requirements.

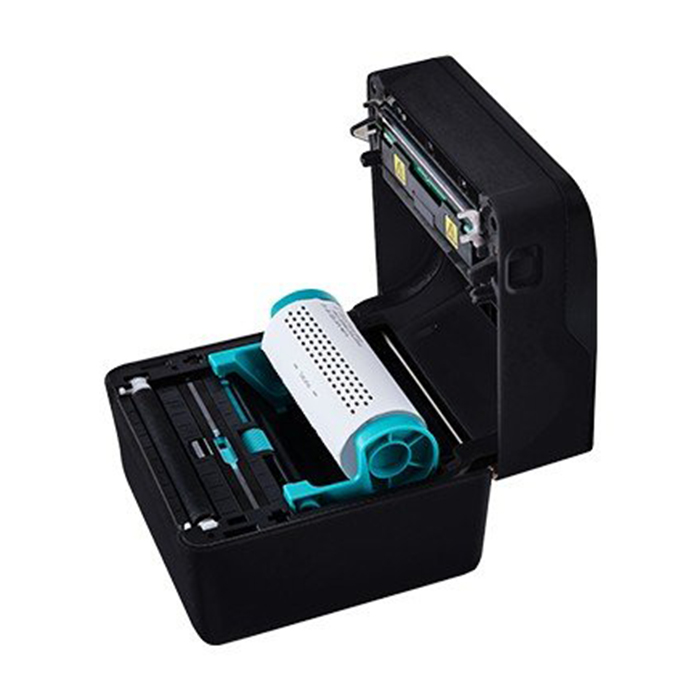

It features intuitive operation with dedicated feed and pause buttons, and status indicators. Connectivity options include USB interface for reliable data transfer. The design also incorporates thoughtful details like an external paper feed entrance for flexible media handling.
Built with a sturdy casing, it is compact enough to fit in workspace-constrained environments while being robust enough for daily operational demands.
Perfect for generating large shipping labels, waybills, and packing slips that require durability, speed, and sometimes larger dimensions.
Suitable for printing price tags for bulk items, shelf labels, and inventory control tags that benefit from wider print areas.
Ideal for printing product labels, compliance stickers, and batch coding tags on the production line, especially where larger text or complex barcodes are needed.
Product Parameters
| Printing Method | Thermal Line |
| Resolution | Thermal Line 8 dots/mm |
| Printing Speed | 150mm/s (Max) |
| Effective Printing Width | 108mm |
| TPH | 50km |
| Paper Width | Max:111.5±0.5mm/ Min:40±0.5mm |
| Paper Type | Normal Thermal Paper/ Thermal Label Paper/Fold Paper |
| Paper Size | Max 112×Ø80mm，Min 112×Ø25mm |
| Paper Thickness | 0.06mm～0.20mm(Normal Thermal Paper) |
| 0.12~0.20mm(Thermal Label Paper) | |
| Driver | Windows/Linux/Android |
| Print Font | Codepage,: ANK: 9 x17 / 12 x24; Chinese: 24 x 24 |
| Barcode | 1D: UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、CODABAR、 CODE93、CODE128 |
| 2D: PDF417、QR Code、DATA Matrix | |
| Interface | USB |
| Power Supply | DC24V±10％, 2A |
| Operating Temp/Humidity | 5～50℃/10～80% |
| Outline Dimension | 168x165x135mm(L×W×H) |
| Storage Temp/Humidity | -20～60℃/10～90% |
