SP-Y37
Product Description

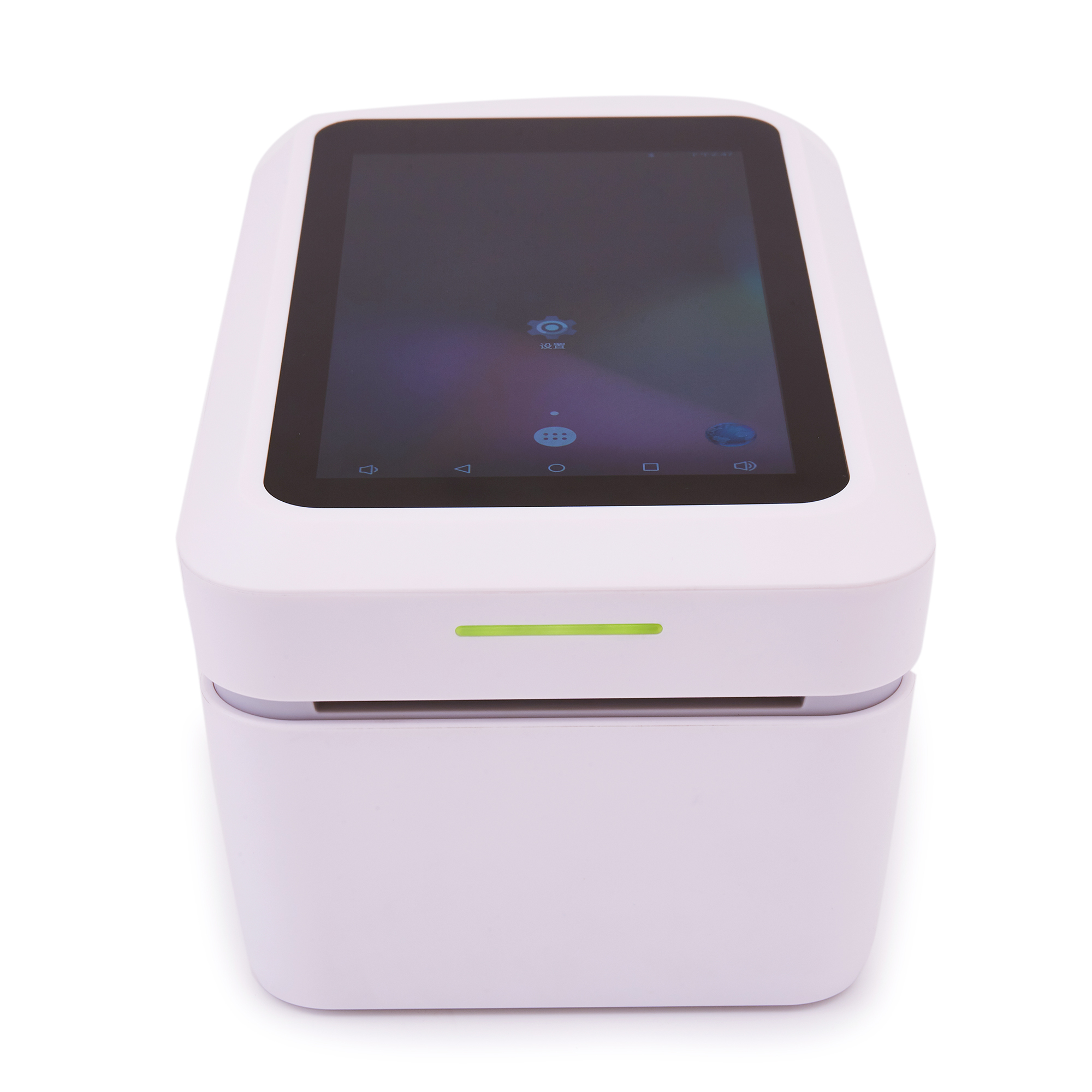

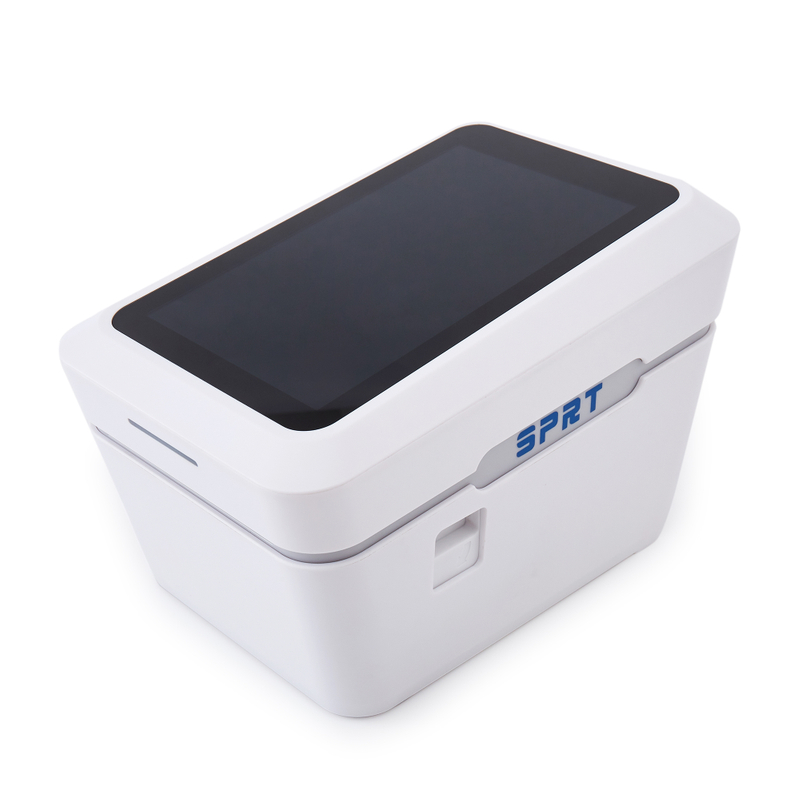

The Y33 is a versatile Android all-in-one desktop terminal designed for streamlined business operations. It features a 7-inch full HD capacitive touchscreen (5-point touch), providing a spacious, responsive interface. Powered by Android 7, it offers an intuitive and user-friendly operating experience. A key advantage is its dual paper width compatibility, supporting both 80mm and 58mm printers, which makes it a perfect, space-saving replacement for traditional bulky POS setups. Equipped with a built-in P+G speaker (housed in a >2W cavity), it delivers clear audio output. Compact yet powerful, the Y33 combines multiple functions into one device for maximum convenience and efficiency.

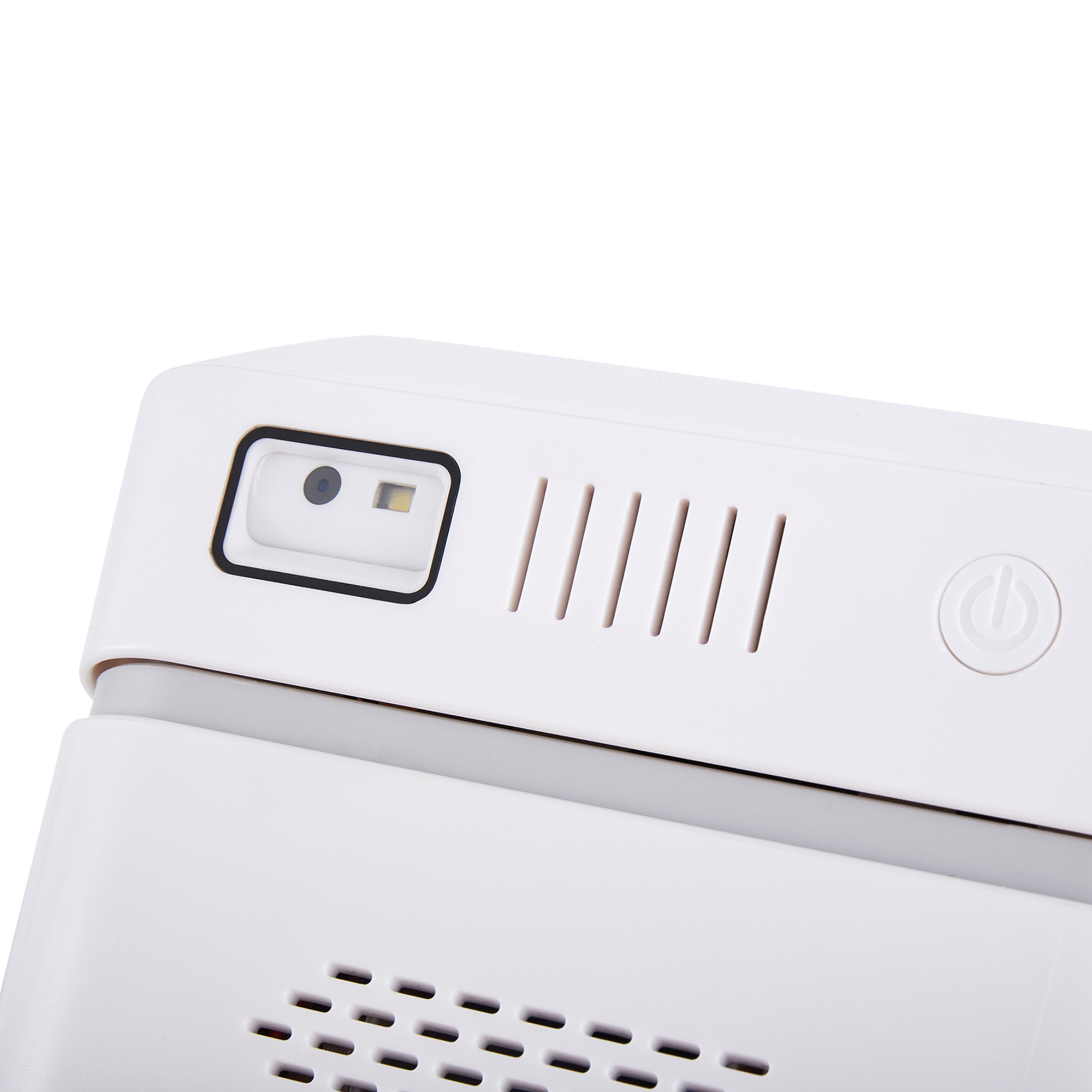

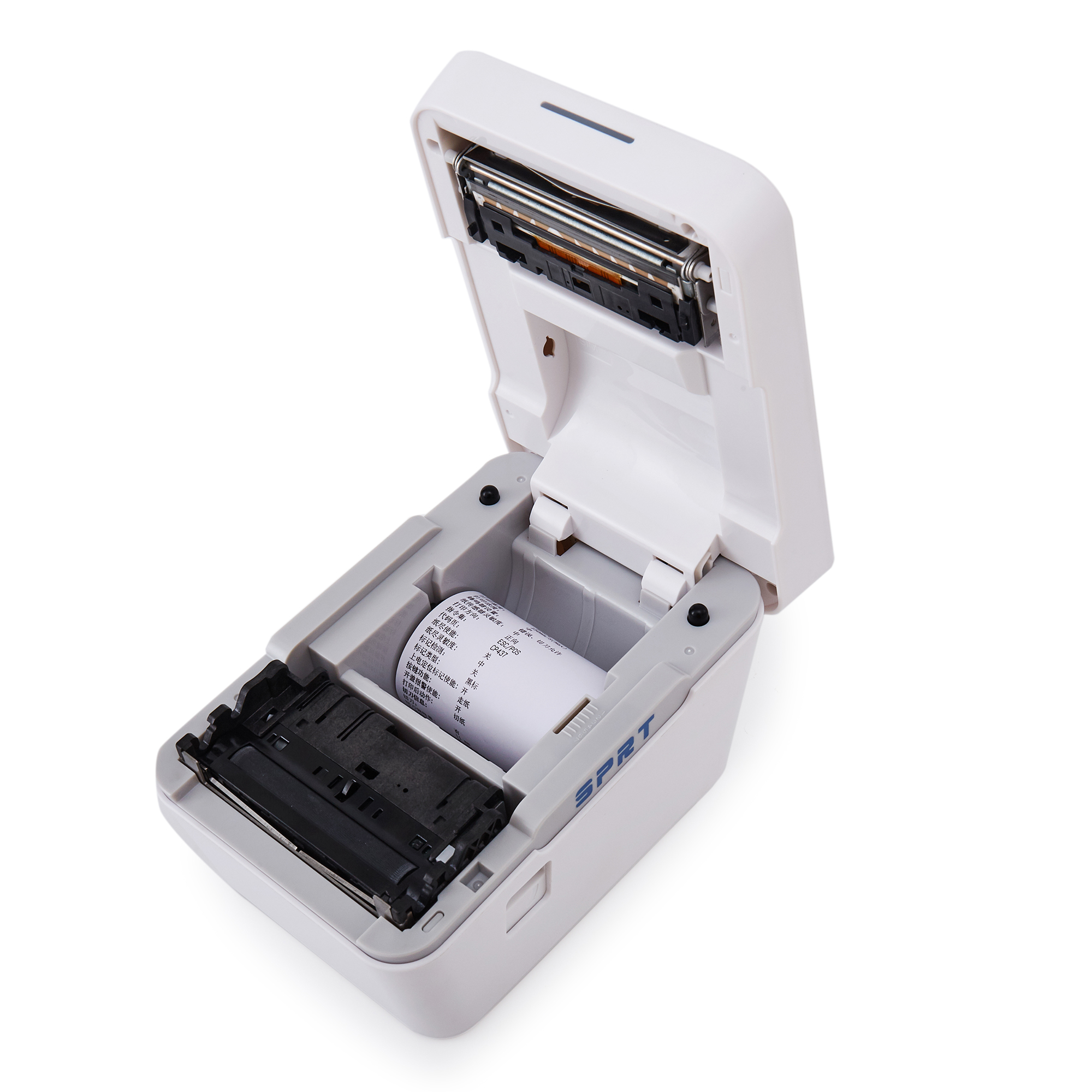

Combines a smart printer with a high-definition camera for fast scanning. Features dual paper width compatibility (80mm/58mm), offering all-in-one convenience for diverse receipt and document handling.
Supports a wide range of mainstream interfaces including Type-A/B USB, Serial, Ethernet, Cash Drawer, Bluetooth, Wi-Fi, 4G, and Camera ports, ensuring seamless integration into any business ecosystem.
Equipped with a 7-inch capacitive touchscreen (5-point) running Android 7, and a built-in >2W P+G speaker, providing an intuitive user interface and clear audio for a complete interactive experience.
The Android all-in-one machine is a highly integrated smart terminal widely used in commercial and public service sectors. In retail and catering, it functions as a self-checkout, ordering, and product inquiry terminal to enhance operational efficiency. For public services, it supports self-service applications such as government affairs, medical registration, and library services. In transportation, it is commonly used in self-service ticketing, check-in, and parking payment systems. Additionally, it is widely applied in corporate visitor management, campus services, hotel self-check-in, and smart community solutions. Its all-in-one design supports touch interaction, multiple peripheral connections, and remote management, effectively optimizing service processes and reducing labor costs, making it a core component of digital transformation across industries.
Product Parameters
| OS | SP-Y33R: Android 5.1/SP-Y33Q: Android 7 |
| CPU | SP-Y33R: RK3288 Cortex-A17/SP-Y33Q: MT8735/MSM8909 |
| RAM | SP-Y33R: DDR3, 2GB/SP-Y33Q: DDR3, 1GB |
| GMS | SP-Y33R: Yes/SP-Y33Q: No |
| Printing Method | Thermal Line |
| Printing Speed | 150mm/s (Max) |
| Paper Type | Thermal Paper |
| Paper Width | 79.5±0.5mm |
| TPH | 150km |
| Cutter life | 1,500,000 cuts |
| Print Font | Codepage,: ANK: 9 x17 / 12 x24; Chinese: 24 x 24 |
| Barcode | 1D: UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、CODABAR、 CODE93、CODE128 |
| 2D: PDF417、QR Code、DATA Matrix | |
| Interface | Type B USB/Type A USB/Bluetooth/WiFi/Ethernet/Cash Drawer |
| Power supply | DC 24V±10%, 2.5A, DC005-2.5 Power Socket |
| Operating Temp/Humidity | 0～50℃/10％～80％ |
| Outline Dimension | 220mm*141mm*142*mm(L×W×H) |
| Storage Temp/Humidity | -20～60℃/10％～90％ |
