Integrating hardware into self-service kiosks, medical diagnostic devices, or complex industrial control panels presents unique challenges compared to standard desktop printing. You cannot simply place a unit on a desk; you must embed it seamlessly into a larger mechanical system. This integration process serves as a critical evaluation metric for modern hardware deployment. Ease of integration directly impacts your overall time-to-market and dictates the extent of engineering overhead required. If you mishandle the installation, you risk unexpected project delays and highly expensive housing redesigns. This guide provides a transparent, step-by-step roadmap designed explicitly for engineers, IT deployers, and OEM integrators. You will learn exactly how to successfully mount, connect, and configure your equipment. We explore physical mounting constraints, wired and wireless communication interfaces, and essential driver configurations to guarantee a robust, long-lasting deployment.
Precise panel cutout dimensions and power constraints must be verified before physical integration to prevent costly housing modifications.
Reliable panel printer setup relies on matching the right communication interface (Serial, USB, or wireless) to the host system’s latency and security requirements.
Standardized panel printer software and ESC/POS command compatibility are critical for avoiding vendor lock-in and ensuring cross-platform scalability.
Testing should account for environmental extremes, paper feed reliability, and failure-state reporting, not just successful test prints.
Proper planning prevents poor performance. Before you cut metal or route cables, you must establish clear baseline requirements. We always recommend starting an integration project by executing a rigorous environmental assessment. You need to clarify the exact operational conditions your equipment will face. Industrial environments subject hardware to severe operational stress. High ambient heat, continuous mechanical vibration, and airborne particulates quickly destroy standard desktop devices. Review your IP (Ingress Protection) ratings. If your equipment faces direct liquid spills or heavy dust, selecting a unit carrying a high IP rating on the front bezel becomes mandatory.

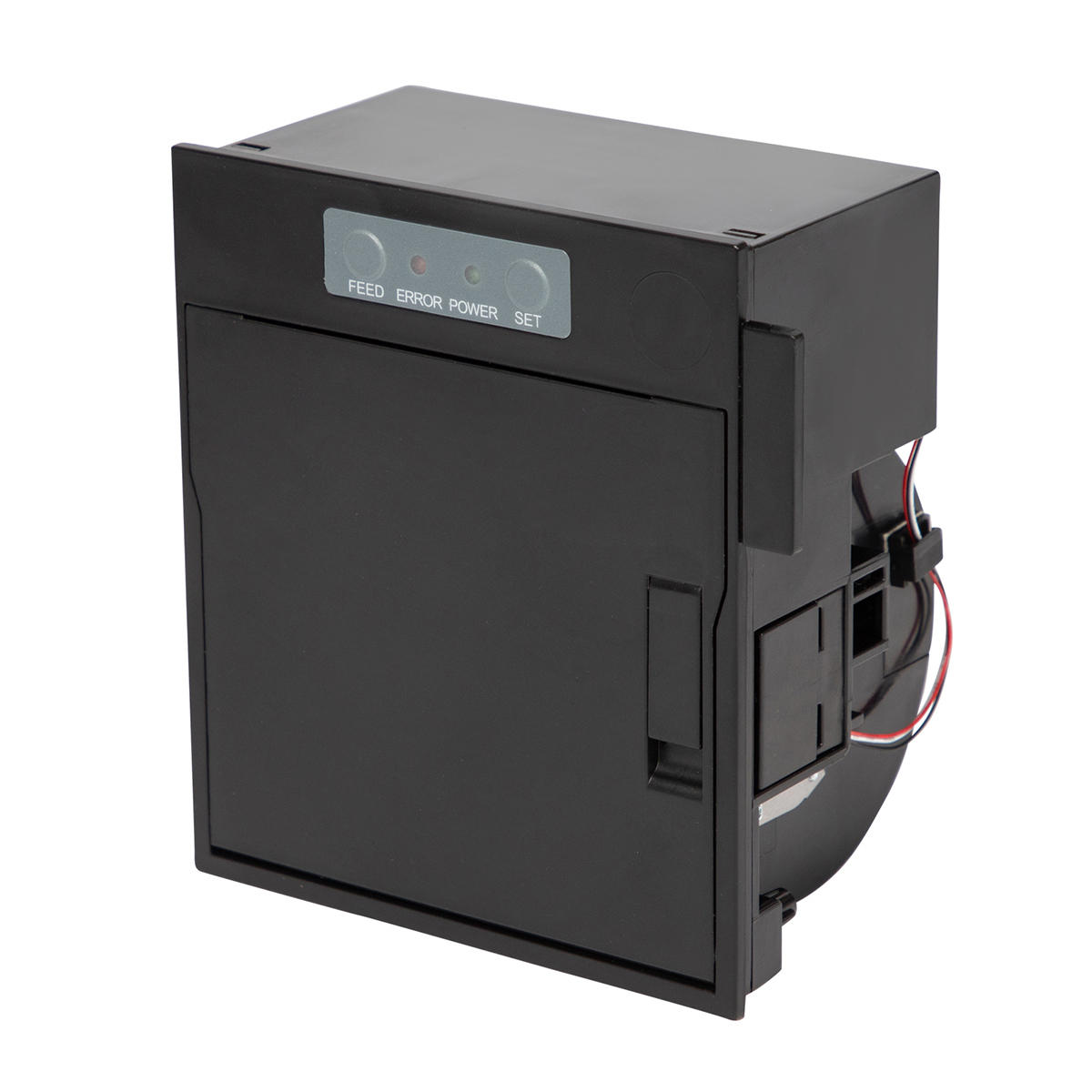

Hardware constraints demand precise attention to detail. Verify the exact cutout dimensions required for your chosen Panel Printer. Measure twice, cut once. You must account for depth clearance behind the mounting surface. Internal cables need sufficient room to bend without kinking. Thermal dissipation proves equally vital. Printing mechanisms generate substantial heat during continuous operation. They require adequate internal airflow to prevent premature thermal throttling. Always cross-reference your CAD models against the manufacturer's mechanical drawings before initiating any physical modifications.
Power mapping represents another vital pre-installation hurdle. Confirm the exact voltage requirements for your unit. Industrial devices typically utilize 5V, 9V, or 12V/24V DC inputs. Ensure your host power supply handles peak printing currents effortlessly. Thermal printheads draw massive current spikes during dense print jobs. If your power supply lacks sufficient headroom, you will experience sudden voltage drops. These drops trigger unexpected system reboots and completely corrupt your print buffers.
Finally, clearly define your success criteria. What does a flawless deployment look like for your specific team? A strong baseline often includes zero-touch driver installation, less than one second time-to-first-print, and fully automated error handling protocols.
Physical mounting requires precision, patience, and the right tools. When preparing the housing, carefully seat the unit into the panel cutout. You must avoid over-tightening the mounting brackets. Excessive tightening force easily warps the front plastic bezel. A warped bezel compromises the aesthetic finish and frequently disrupts the internal paper path, causing immediate feed issues. Use the exact torque specifications detailed in your hardware manual.
Securing the mechanism properly guarantees long-term operational stability. High-volume print cycles generate continuous internal vibrations. Apply consistent tension across all mounting points. A perfectly balanced mount keeps the device completely stable and prevents text distortion during high-speed print jobs. Follow these best practices for optimal physical integration:
Clean the panel edges thoroughly to remove metal burrs or residual plastic shavings.
Insert the printer squarely into the cutout without forcing the corners into place.
Tighten mounting clips in a diagonal pattern to distribute pressure evenly across the frame.
Verify the clam-shell door opens fully without catching on the host enclosure edges.
Routing DC power cables safely remains critical for reliable electrical operation. Keep sensitive communication lines separated from parallel high-voltage AC cables. This separation minimizes electromagnetic interference (EMI). EMI easily scrambles data signals, leading to dropped or corrupted print jobs. Validating paper loading accessibility concludes this specific phase. Ensure end-users can easily reach the clamshell mechanism or auto-feeder post-installation. A restricted or poorly placed paper compartment drastically increases routine maintenance complaints and causes unnecessary service calls.
Connectivity protocols dictate how effectively your host system communicates back to the print mechanism. Hardwired interfaces remain the gold standard for highly secure, latency-free industrial operation. When integrating TTL, RS232, or standard USB connections, pay close attention to exact pinout configurations. Incorrect wiring often fries delicate communication boards instantly. Focus heavily on strict cable length limitations. RS232 handles much longer cable runs efficiently, while USB requires shorter, heavily shielded cables. Always utilize secure latching connectors. Latching mechanisms prevent accidental disconnections caused by continuous kiosk vibrations.
Modern applications increasingly demand flexible networking capabilities. Integrating a Wireless panel printer removes physical cable constraints entirely, but it introduces complex new technical variables. You must evaluate Bluetooth versus Wi-Fi modules based strictly on your environmental setting. Bluetooth excels in low-power, short-range pairing scenarios. Wi-Fi provides robust, network-wide access but consumes significantly more energy over time.
Security and environmental factors complicate wireless setups further. Dense metallic enclosures heavily attenuate radio signals. You will frequently need external antennas to ensure reliable communication. Implement strict enterprise security protocols, including WPA3 encryption compliance and MAC address filtering. These measures prevent unauthorized network access. Additionally, test your pairing protocols extensively in the field. Your device must establish persistent connections and automatically reconnect immediately after any host-system reboots.
Interface Type | Optimal Use Case | Data Speed | Common Limitations |
|---|---|---|---|
USB | High-speed local integration | High | Strict cable length limits; requires shielding |
RS232 (Serial) | Legacy industrial systems | Low to Medium | Requires perfectly matching baud rates |
Wi-Fi | Networked, multi-host access | High | Severe signal attenuation in metal cases |
Bluetooth | Mobile or short-range pairing | Medium | Signal interference in crowded areas |
A flawless physical mount achieves nothing without proper logical integration. Operating system compatibility represents your initial software hurdle. Navigate driver availability carefully across Windows, Linux, Android, and specialized Real-Time Operating Systems (RTOS). Each distinct platform handles peripheral communications differently. Leveraging universal Panel printer software ensures you do not get trapped resolving proprietary driver conflicts.
Command-level integration provides the absolute highest degree of hardware control. Relying on universal ESC/POS or CPCL command sets delivers vastly superior long-term scalability. Proprietary drivers frequently face sudden obsolescence when operating systems deploy major software updates. Sending raw hexadecimal commands directly to the hardware guarantees consistent performance. It protects your deployment regardless of future host OS changes.
Next, systematically configure specific print parameters. You must adjust serial baud rates to match your host system perfectly. Fine-tune the heat density, commonly referred to as burn time, via the manufacturer utility tool. Higher heat produces significantly darker text but degrades the thermal printhead much faster. Finding the optimal balance optimizes receipt clarity while maximizing total hardware lifespan. Character code pages also require strict alignment. Proper code page selection prevents rendering errors when printing international currency symbols or unique language fonts.
Status monitoring closes the loop on effective software setup. You must establish robust bi-directional communication routines. This setup allows the host system to proactively pull critical alerts directly from the device. Out-of-paper notifications or printhead-overheating warnings should trigger immediate automated system responses. Automated status alerts drastically reduce unexpected machine downtime and improve the overall user experience.
Even the most meticulously planned Panel printer setup encounters unexpected hurdles during rollout. Rapid and accurate diagnosis differentiates a successful project from a costly, stalled deployment. Garbled text and unrecognized characters usually stem directly from communication mismatches. If you see endless streams of random symbols printing, immediately check your serial baud rates. Mismatched parity settings or incorrect character code pages also trigger this specific failure mode. Realign the host and peripheral settings to restore perfectly clear text.
Intermittent power failures plague numerous custom kiosk builds. When the thermal element activates to print dense black graphics or barcodes, it draws a massive current spike. Under-spec power supplies simply cannot handle this sudden load, causing severe voltage drops across the board. The printer will reset mid-job, leading to incomplete tickets and frustrated users. Always provision a robust power supply rated specifically for the maximum peak current, not just the nominal idle draw.
Paper jams and feed issues frequently relate to unmanaged environmental factors. High ambient humidity softens standard thermal paper. This moisture increases paper thickness and creates severe friction inside the internal paper path. Improper tensioning of the paper roll also triggers recurring feed errors. Regular internal cleaning and selecting high-quality thermal media largely mitigate these frustrating mechanical faults.
Silent failures represent the absolute most dangerous operational risk. Software timeouts occur when the printer drops off the network or USB bus without alerting the host OS. The host machine believes the print job succeeded perfectly, but no physical receipt actually exists. Implement robust polling routines inside your software logic. The host must continuously request real-time status updates to verify the hardware remains active, connected, and ready to print.
Symptom | Likely Root Cause | Immediate Action |
|---|---|---|
Printer resets mid-job | Voltage drop during peak current draw | Upgrade power supply amperage rating |
Continuous random characters | Baud rate or parity mismatch | Sync host and device serial parameters |
Faded or illegible text | Low burn time or dirty printhead | Increase heat density; clean thermal element |
Device drops off USB bus | EMI interference or bad cable shielding | Reroute cables away from high voltage lines |
Scaling a deployment from a single prototype to thousands of active field units requires highly strategic foresight. Raw hardware specs alone will never guarantee a smooth fleet rollout. You must comprehensively evaluate the surrounding ecosystem of the product. Vendor support and comprehensive documentation play a massive role in long-term deployment success. Responsive engineering support and highly detailed integration manuals consistently trump raw, on-paper hardware specifications. When your deployment engineers encounter a highly complex edge case, direct access to the manufacturer’s technical team saves weeks of painful troubleshooting.
Supply chain reliability stands as another vital cornerstone of fleet scalability. You must deeply assess the overall component longevity of your chosen model. OEM integrators require a strict guarantee identical replacement units will remain available three to five years post-deployment. Frequent, unannounced hardware revisions force costly software updates and completely derail mechanical re-certifications. Choose manufacturing partners who heavily prioritize long-term production stability over rapid, unnecessary hardware iterations.
Standardizing your deployment process ensures completely consistent quality across all production builds. By defining strict protocols early, you eliminate assembly floor variations. Follow these specific numbered steps to firmly lock in your deployment strategy:
Request a comprehensive development kit directly from the manufacturer for early testing.
Execute a controlled proof-of-concept (PoC) under highly realistic simulated environmental conditions.
Document every exact configuration step to create an unbreakable standardized operating procedure (SOP).
Train all assembly technicians on the specific physical mounting constraints identified during the PoC phase.
A standardized installation process minimizes unexpected downtime and drastically reduces ongoing support tickets. We have explored the critical phases of deployment, from measuring physical cutouts to writing bulletproof software polling routines. Hardware is only as good as the software integration and physical planning behind it. Skipping environmental assessments or under-specifying power supplies will inevitably lead to field failures. By aligning your communication interfaces, optimizing ESC/POS command sequences, and rigorously testing for failure states, you secure a highly reliable deployment. We highly encourage technical buyers to request an evaluation unit immediately. Consult directly with an integration specialist to validate your specific use case before committing to a full production run.
A: Generally, no. Most modern devices rely on standard USB or Serial communication classes. Utilizing universal ESC/POS commands provides greater stability than proprietary drivers. This command-level integration ensures cross-platform compatibility across Windows, Linux, and RTOS environments without relying on manufacturer-specific driver updates.
A: Yes, but it requires strategic design. Metal enclosures cause severe signal attenuation, blocking internal Wi-Fi or Bluetooth antennas. You must route an external antenna outside the metallic housing. Additionally, optimizing antenna placement mitigates signal loss in dense industrial environments.
A: Preventing jams starts with proper hardware selection. Utilize models containing reliable auto-cutters and dedicated presenter mechanisms. Presenters hold the printed ticket internally until cut, preventing users from yanking the paper prematurely. Always match the paper roll size exactly to the mechanism's specifications.
A: Power requirements typically split into two paths. The logic board often runs on a low 5V supply, while the thermal printhead requires higher voltages, usually 12V or 24V DC. You must provide a power supply capable of handling high peak currents during dense printing phases to avoid resets.
