SP-EU8010/8011
SPRT
Product Parameters
| Printing Method | Thermal Line |
| Resolution | 8 dots/mm, 576 dots/line |
| Printing Speed | (MAX) 130mm/s(Label paper), 150mm/s(receipt paper) |
| Effective Printing Width | 72mm |
| Paper Width | 79.5±0.5mm |
| Graphic Printing | Support printing bitmaps with different density and downloaded graphics |
| Chinese | National standard three-level font: 24x24, 16x16 |
| English | ASCIl:12x24,8x16, 16x16 |
| 1D | UPC-A.UPC-E,EAN-13,EAN-8,CODE39,CODE93,CODABAR,ITF25,CODE128 |
| 2D | PDF417,QR Code, DATA Matrix |
| Supported Functions | Black mark detection, paper out warnings |
| Power supply | DC24V+10%, 2A, VH3.96-2PIN electric socket |
| Paper | Diameter of paper roll: Medium 150mm(Max), diameter of paper shaft : 12.5mm,paper roll need to be matched to the paper shaft |
| Paper Thickness | 0.06-0.08mm(Receipt Paper), 0.08mm-0.15mm(Label Paper) |
| Paper Loading Method | Automatically Feeding |
| Paper Cutting Method | Automatically Cutting |
| Dimensions(LXWXH)mm | SP-EU8010SU:95X120X95/ SP-EU8011SU:252x120X108 |
| Storage Temp/Humidity | -20-~60°C/10~90% |
| TPH | 100KM |
| Life Of Cutter | 1,000,000 cuts |
Product Description

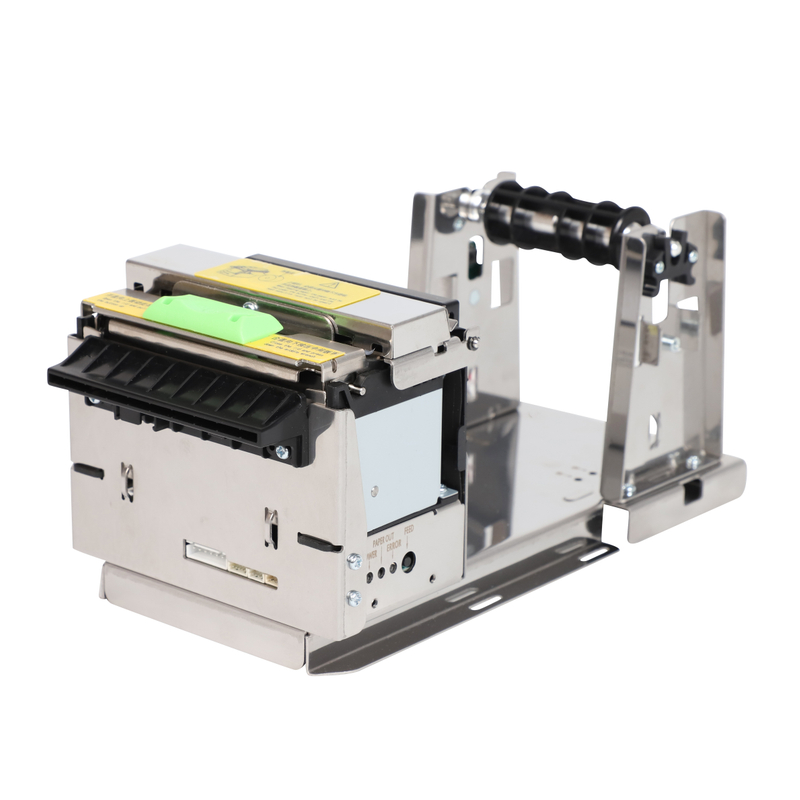

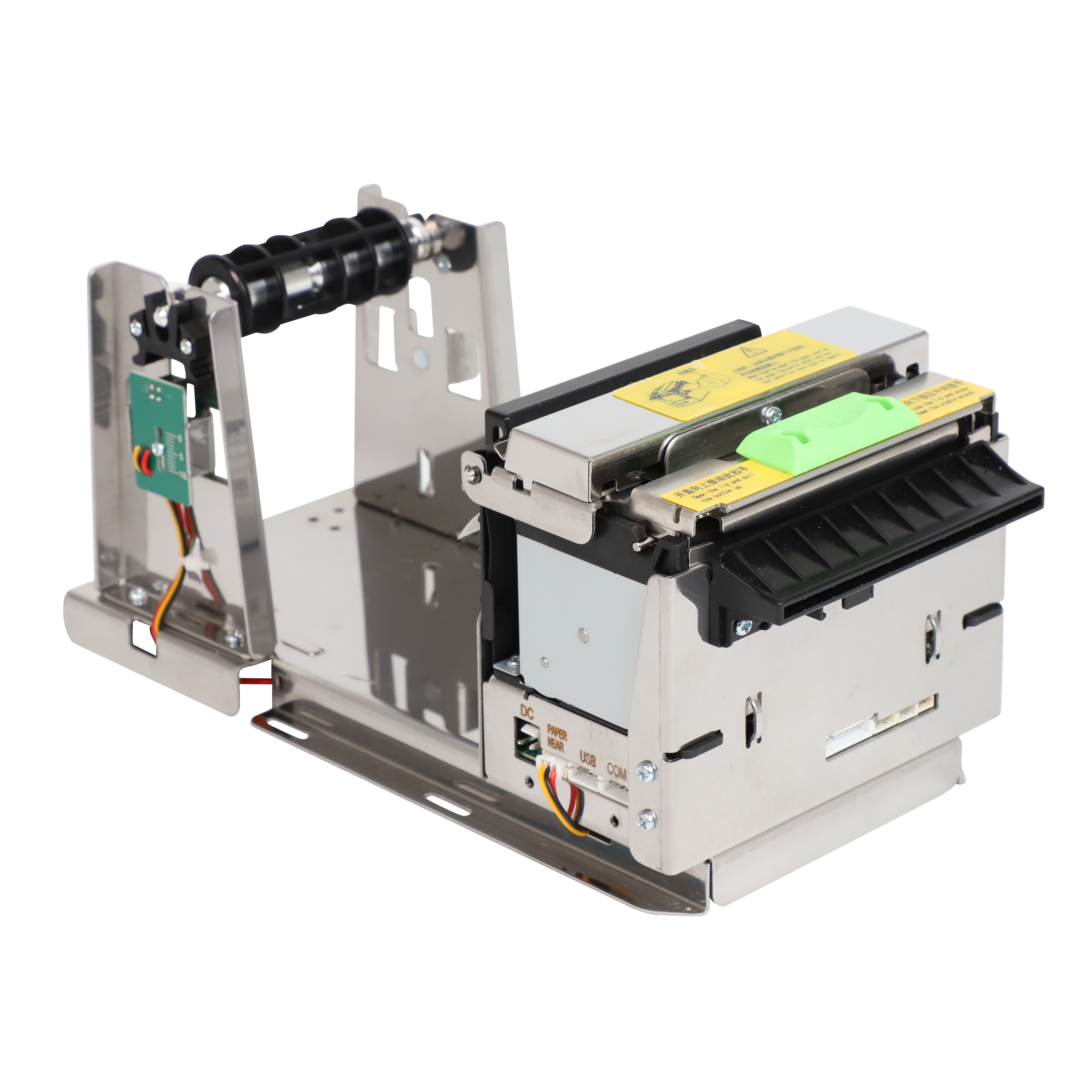

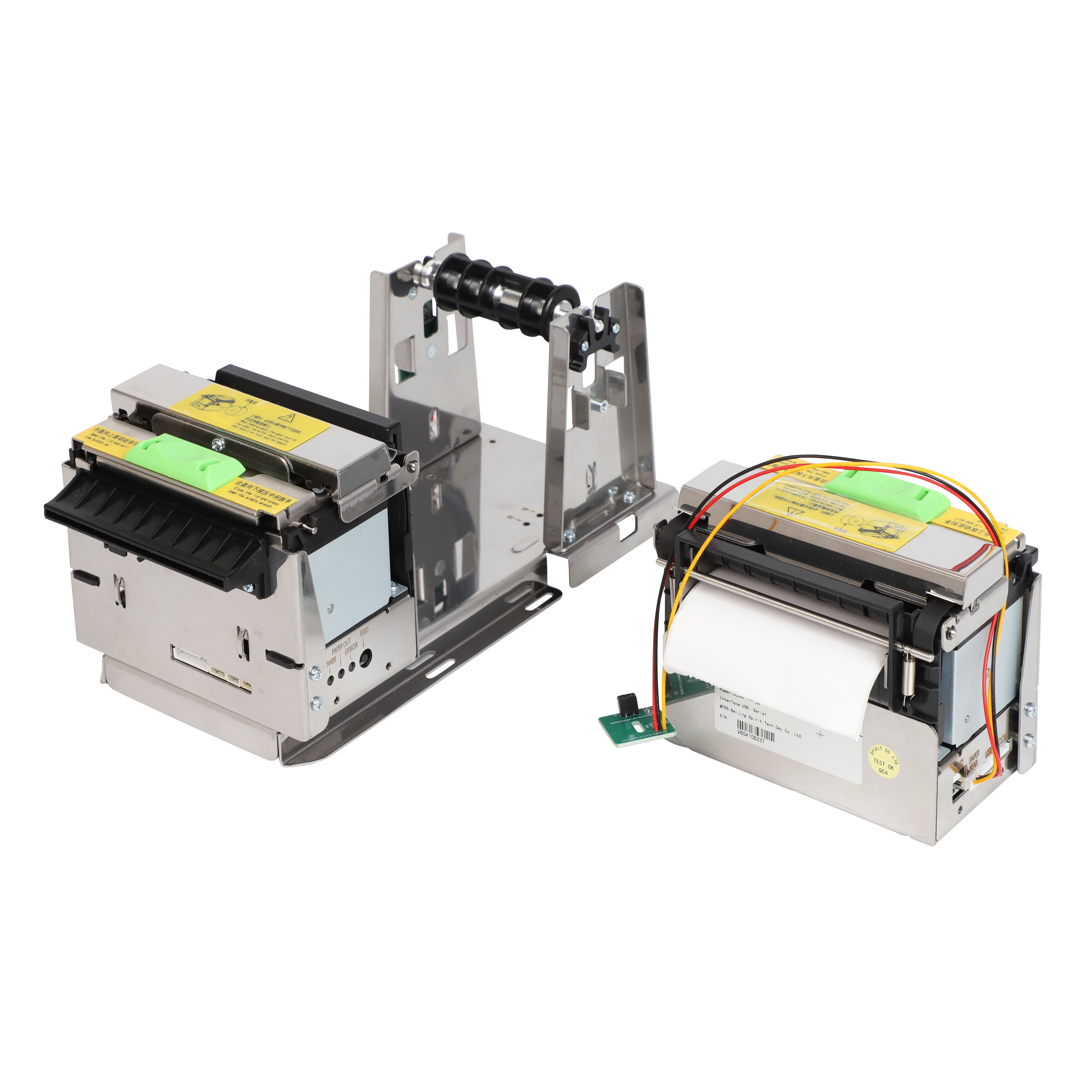

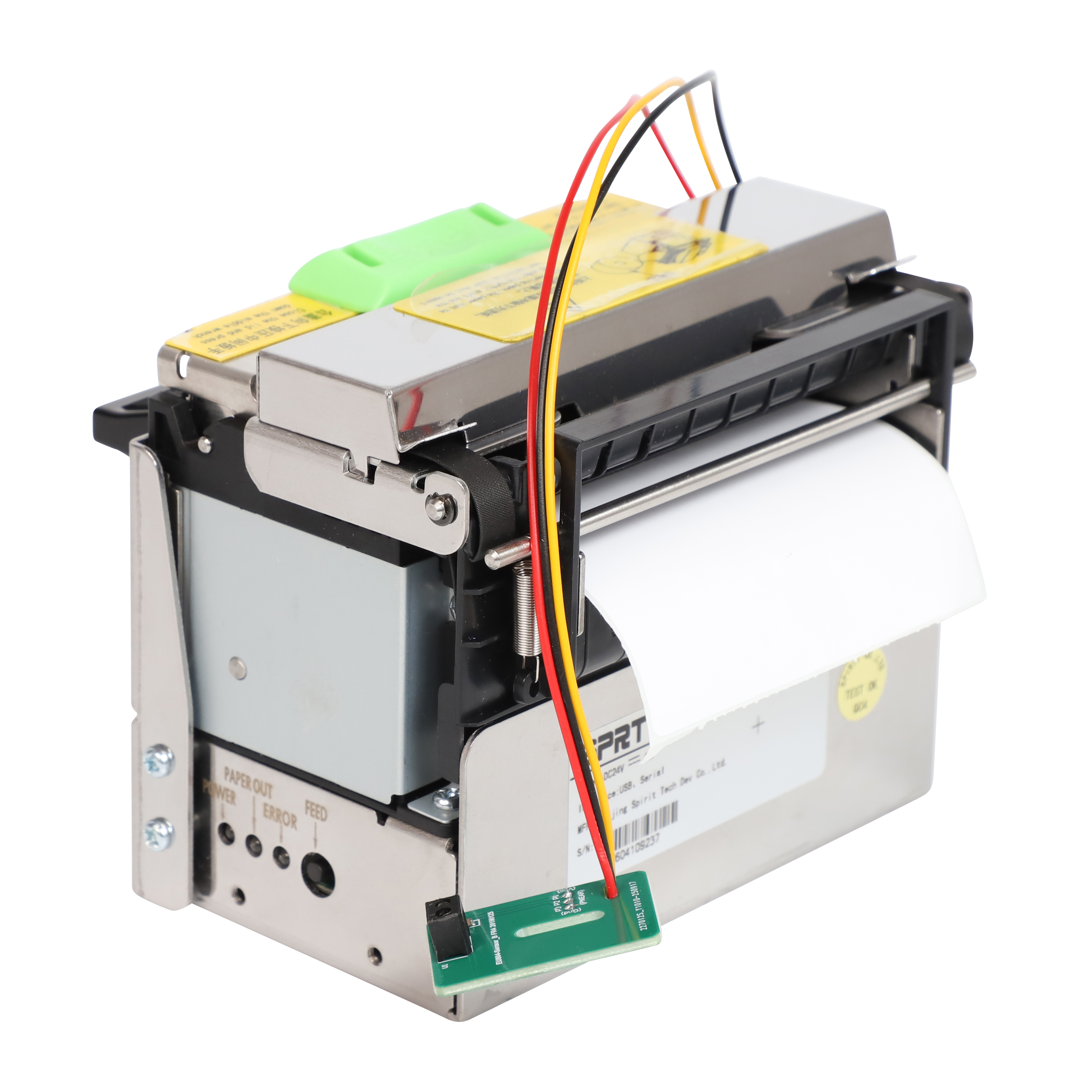

SP-EU8011and SP-EU8010 can print label and receipt both. They have autocutter and deliver a printing speed of 130mm/s for label printing and 150mm/s for receipt printing. They feature a 180° paper feeding path that effectively reduces the chances of paper jams. It supports uncollected order reminder, paper jam warnings, audible and visual alerts, and black mark detection. SP-EU8011 is with paper rack, SP-EU8010 is without paper rack.
SP-EU8010/EU8011 support both label and receipt printing, making it suitable for various self-service applications such as retail kiosks, smart lockers, and ticketing systems.
Equipped with an automatic cutter, this embedded printer supports paper widths up to 80mm for fast and clean ticket output.
The 180-degree paper path design helps reduce paper jams and ensures smoother paper feeding, improving reliability in unattended kiosk environments.
The printer mechanism features a built-in buffer for smoother and more stable paper output during continuous printing.
This self-service kiosk thermal printer supports untaken receipt warnings, paper jam detection, audible and visual alarms, and black mark detection for more efficient and reliable operation.
You'll find it working behind the scenes in many everyday machines:
This self-service kiosk thermal printer is ideal for self-service payment kiosks, providing fast and stable receipt printing for retail stores, supermarkets, and utility payment terminals.
With reliable paper handling and anti-jam design, the kiosk printer is widely used in parking kiosks for ticket issuance and payment receipt printing.
Supporting both receipt and label printing, the embedded printer is suitable for transportation, cinema, and event ticketing machines.
The printer can print pickup receipts and shipping labels, making it a reliable solution for smart locker systems and parcel management terminals.
This thermal kiosk printer is suitable for hospital and clinic self-service systems, including queue management, registration, and payment receipt printing.
Compact structure and stable printing performance make this thermal kiosk printer ideal for vending machines and other unattended retail applications.
