SP-RME5A
Product Description
SP-RME5A is an 80mm high-speed thermal printer specifically designed for self-service terminal equipment. Compatible with SP-RME4 and SP-RME5 models, it allows for seamless upgrades and replacements. Equipped with an 80mm large-capacity paper compartment and powered by 12V/24V wide-voltage supply, it supports both full-cut and partial-cut paper feed modes. Featuring a reserved lock hole for convenient operation and security management, it serves as a reliable printing solution for the efficient, stable, and secure operation of self-service terminals.

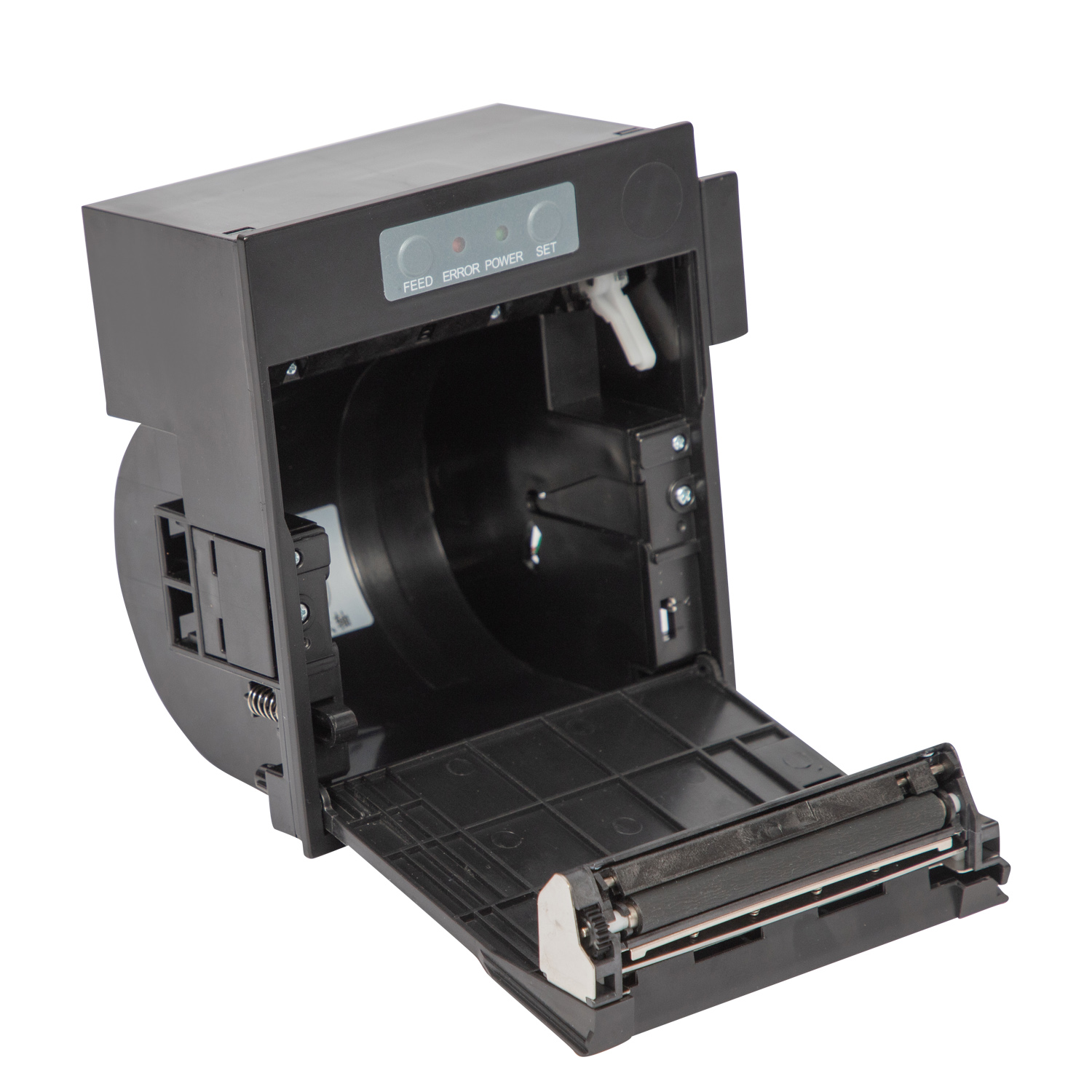

A built-in cam lock ensures hardware security for unattended terminals, while the front-open cover design enables exceptionally easy and fast paper loading and maintenance.
It delivers a fast 170mm/s printing speed, paired with a large paper capacity, to handle high-volume transactions smoothly and minimize user wait times.
The 12/24V selectable wide voltage input offers outstanding compatibility with various terminal power systems, ensuring stable operation and seamless deployment.
The compact printer series offers versatile size and functional options tailored for diverse industrial and commercial uses, primarily supporting POS receipt printing and test result output with instruments.
The 58mm model with auto cutter is ideal for fire safety wall-mounted controllers (e.g., in hotels and retail stores), medical diagnostic devices, and environmental monitoring equipment. The 58mm model with auto cutter suits self-service kiosks, bank card terminals, and health monitoring devices such as blood pressure monitors. Meanwhile, the 80mm model with auto cutter is commonly applied in medical check-in systems, bank queue machines, self-service terminals, visitor systems, and point-of-sale machines, delivering reliable performance across automated and transactional environments.
Product Parameters
| Printing Method | Thermal Line | ||
| Printing Speed | 170 mm/s | ||
| Resolution | 8 dots/mm (203dpi) | ||
| Effective Printing Width | 72mm | ||
| Character | Character Set | ASCII, GB18030(Chinese), BIG5 | |
| Print Font | Codepage, ANK:12×24; Chinese: 24×24 | ||
| Character per Line | 72 | ||
| Paper Spec | Paper Type | Thermal paper | |
| Paper Width | 79.5± 0.5mm | ||
| Paper Thickness | 0.06~0.08mm | ||
| Paper Roll Diameter | Max: 80.0mm | ||
| Roll Core Inner Diameter | 13mm(min.) | ||
| Reliability | MCBF | 1 million lines | |
| Barcode | 1D: UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODEBAR,CODE93,CODE128 | ||
| 2D: PDF417、QRCODE、DATAMATRIX | |||
| Emulation | ESC/POS | ||
| Driver | Windows/JPOS/OPOS/Linux/Android | ||
| Interface | RS-232+USB | ||
| Paper Supply Method | Drop-in easy paper loading | ||
| Power Supply (Adapter) | SP.RME5APUF: DC12V 10%,4A,5557-2*2P(4.2mm spacing) Power SocketSP-RM E5ASUF:DC24V10%,2A,2114S-02 Power Socket | ||
| Printer Mechanism | SEIKO Brand | ||
| Auto cutter | Type | Guillotine | |
| Life | 100km | ||
| Cutting Method | Partial Cut/ Full cut | ||
| Appeareace | Installation size: | 111.5mm×128.5mm(W×H) Depth: 84.2mm | |
| Color | Black/White | ||
| Weight | 400g | ||
