SP-RME5
Product Description

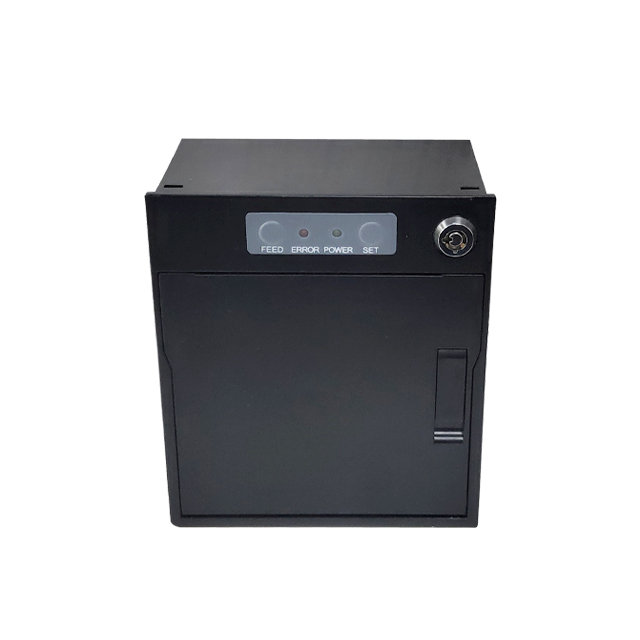

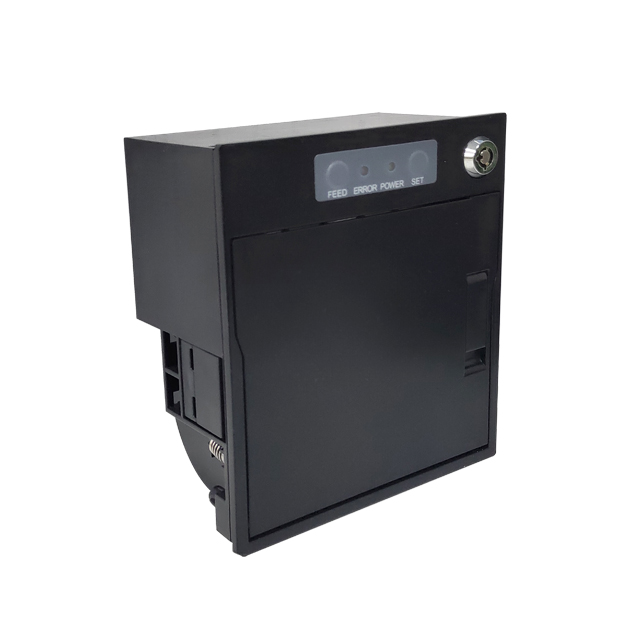

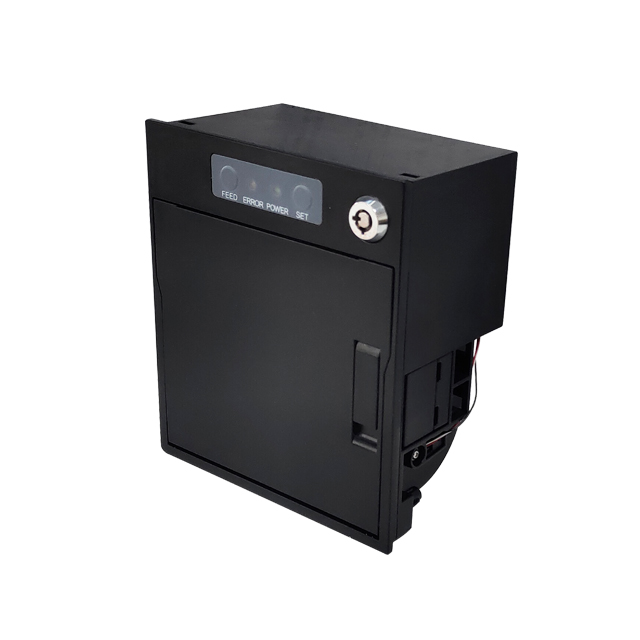

The SP-RME5 is a high-performance thermal printer specially designed for unattended self-service terminals. Its built-in security lock significantly enhances device safety, effectively preventing accidental operations and unauthorized access. Featuring a front-open cover for quick paper replacement and maintenance, and equipped with an 80mm thermal cutter for precise receipt separation, it ensures reliable operation. The printer offers comprehensive connectivity options, including serial, parallel, USB, and cash drawer interfaces, making it suitable for various embedded applications across.

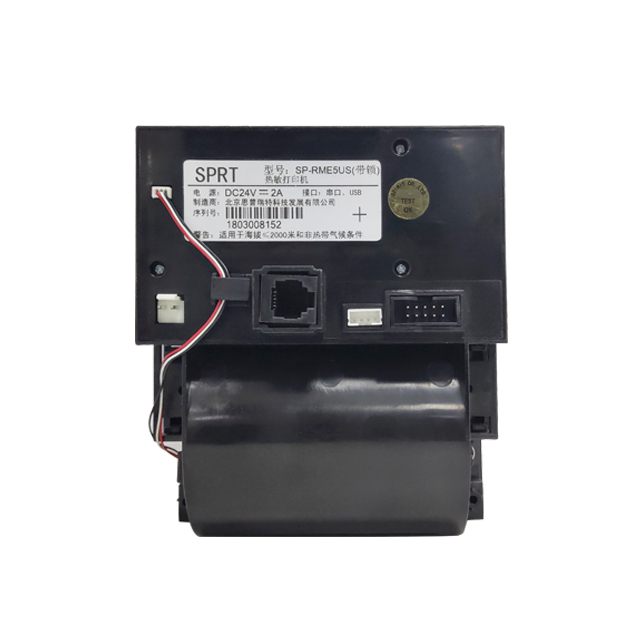

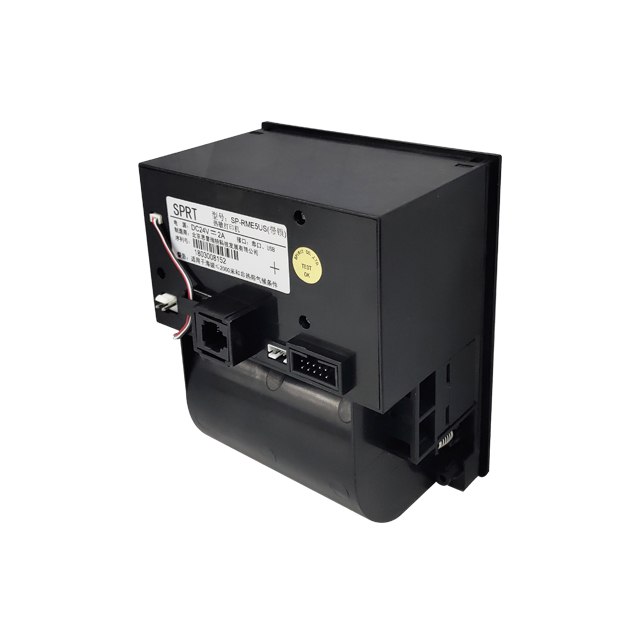

Equipped with multiple interfaces including serial, parallel, USB, and cash drawer ports, ensuring versatile and straightforward connectivity with various host systems and peripherals.
Features an 80mm thermal cutter for clean and accurate receipt separation, supporting efficient transaction processing.

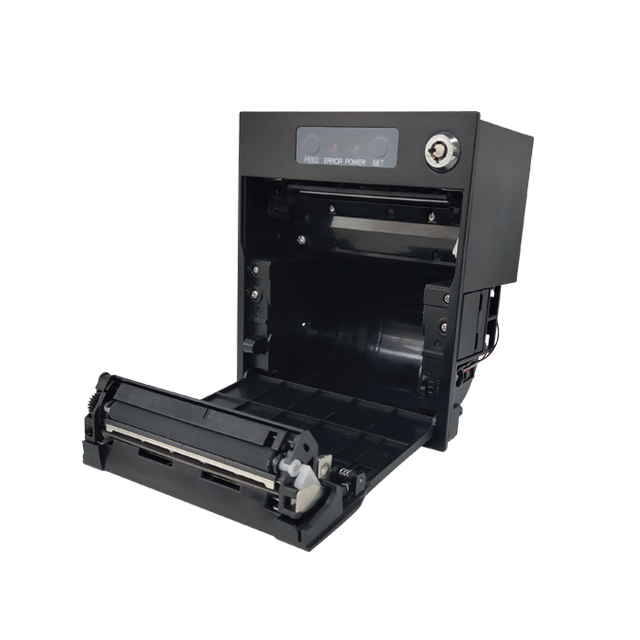

The front-open cover design allows for easy and quick paper loading. Enhanced with cover open alarm, paper-out alarm, overheat protection, and a buzzer, it provides full-process monitoring and safeguards device stability.
The compact printer series offers versatile size and functional options tailored for diverse industrial and commercial uses, primarily supporting POS receipt printing and test result output with instruments.
The 58mm model with auto cutter is ideal for fire safety wall-mounted controllers (e.g., in hotels and retail stores), medical diagnostic devices, and environmental monitoring equipment. The 58mm model with auto cutter suits self-service kiosks, bank card terminals, and health monitoring devices such as blood pressure monitors. Meanwhile, the 80mm model with auto cutter is commonly applied in medical check-in systems, bank queue machines, self-service terminals, visitor systems, and point-of-sale machines, delivering reliable performance across automated and transactional environments.
Product Parameters
| Printing Method | Thermal Line |
| Resolution | 8 dots/mm (203 dpi), 576 dots/line |
| Printing Speed | 170 mm/s (Max) |
| Effective Printing Width | 72 mm |
| TPH | 100km |
| Paper Width | 79.5±0.5mm |
| Paper Type | Normal Thermal Paper/ Blackmark Paper |
| Paper Size | Max 80 mm×Ø60mm |
| Paper Thickness | 0.06mm～0.08mm |
| Paper Supply Method | Drop-in easy paper loading |
| Print Font | ASCII 12 x24; Chinese: 24 x 24 |
| Barcode | 1D: UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、CODABAR、 CODE93、CODE128 |
| 2 D: PDF417、QRCODE、Data Matrix | |
| Interface | Serial / Parallel / USB / BT |
| Power supply | DC24V±10%, 2A |
| Weight | 970 (Exculde Paper Roll) |
| Operating Temp/Humidity | 0～50℃ / 10～80% |
| Storage Temp/Humidity | -20～60℃ / 10～90% |
| Outer Line Dimension | 132mm*115mm*82.5mm (L*W*D) |
| Installation Port Size | (128.5±0.5)mm*(115.5±0.5)mm / Depth: 77mm |
