The SP-POS891Plus is an 80 mm thermal receipt printer designed for heavy kitchen use by SPRT. It offers a maximum printing speed of 200 mm/s and is available in 4 interfaces to support different POS environments. It is suitable for retail checkout, restaurant order printing, chain stores, finance, and other applications. Most importantly, it has a very fashionable modern design with good-looking appearance. Today, we are going to learn how to use it!
Item | Specification |
Printing Method | Line thermal printing |
Maximum Printing Speed | 200 mm/s |
Paper Width | 79.5 ± 0.5 mm |
Print Density | 8 dots/mm(203 dpi), 576 dots/line |
Print Head Life | 150 km |
Auto-Cutter Life | 1.5 million cuts (partial cut) |
Interface | USB+LAN/USB+LAN+Bluetooth+WIFI |
Power Supply | DC24V±10%, 1.5A |
Dimensions | 165mmx145mmx115mm(LxWxH) |
Driver | Windows/JPOS/OPOS/Linux/Android |

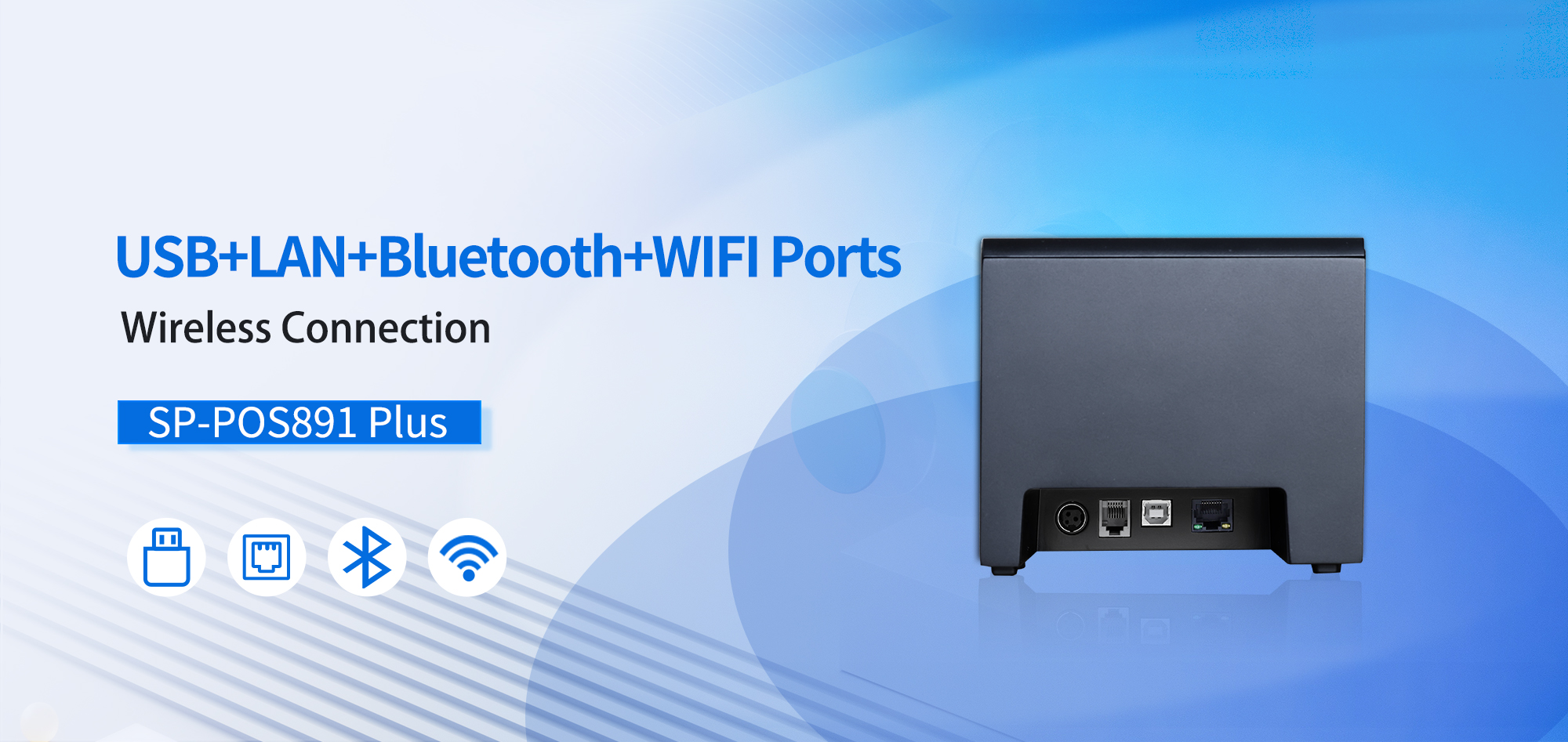

The SP-POS891Plus is available in 2 interface configurations. Select the appropriate model according to your POS system:
· Basic computer-based POS system: SP-POS891UEd Plus with USB+Ethernet interface
· Multiple interface requirements: SP-POS891UEBTDMWd Plus with USB+Ethernet+Bluetooth+WIFI interfaces
Self-Test Printing
There are two ways for Self-Test printing:
Method 1
With the printer powered off, open the paper bin cover, load the paper roll, and close the paper cover.
Press and hold the FEED button while turning the printer on.
The printer automatically prints a self-test page.
Method 2
Ensure the printer is loaded with paper.
While the printer is in standby mode, press the FEED button twice consecutively.
The printer automatically prints a self-test page.

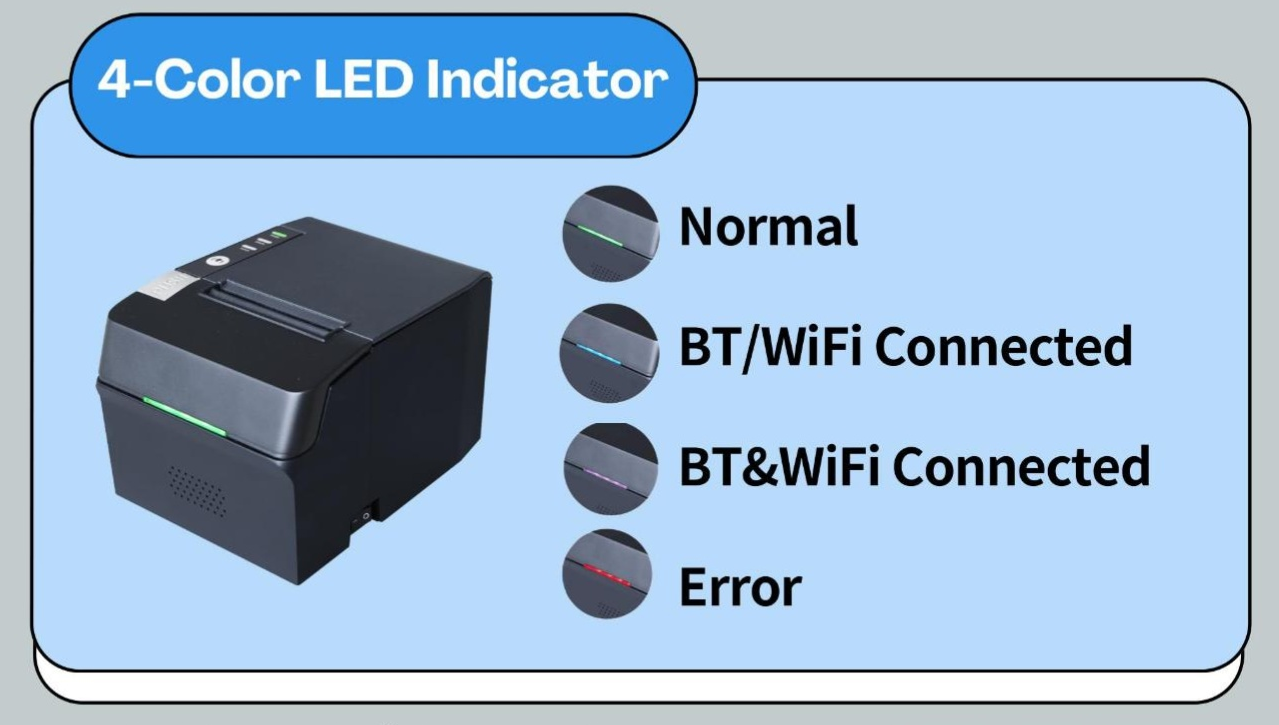

Indicator | Description |
Green indicator | The power supply is operating normally. |
Blue indicator | Bluetooth or WiFi is connected. |
Purple indicator | Bluetooth and WiFi are both connected. |
Red indicator | Some error has occurred, such as paper shortage, print head overheating. |
4. Troubleshooting Q&A
Q: Why can’t the printer communicate with the host device?
A: Check that the interface cable is securely connected.
For the Ethernet model, confirm that the printer and host device are on the same network segment.
Print a self-test page to verify that the printer is operating normally.
Q: Why is the printed text unclear?
A: Check that the paper roll has been loaded in the correct direction. Clean the print head with a cotton swab moistened with anhydrous alcohol. If necessary, increase the print density through the printer settings.
Q: What should I do if paper is jammed in the cutter?
A: Turn the printer off and then back on. The cutter will reset automatically.
If the cutter does not reset, open the paper cover and manually turn the cutter gear until the cutter returns to its original position.
5. Maintenance
Clean the print head every three to six months using a cotton swab moistened with anhydrous alcohol.
Use qualified 79.5 mm thermal paper to prevent low-quality paper rolls from damaging the print head.
When the printer is used in a restaurant kitchen, regularly remove oil and grease from inside the printer.
After turning off the printer, wait until the cutter has fully reset before disconnecting the power supply.
The serial and USB interfaces support online firmware upgrades.
For additional product information and user manuals, please CONTACT US!
