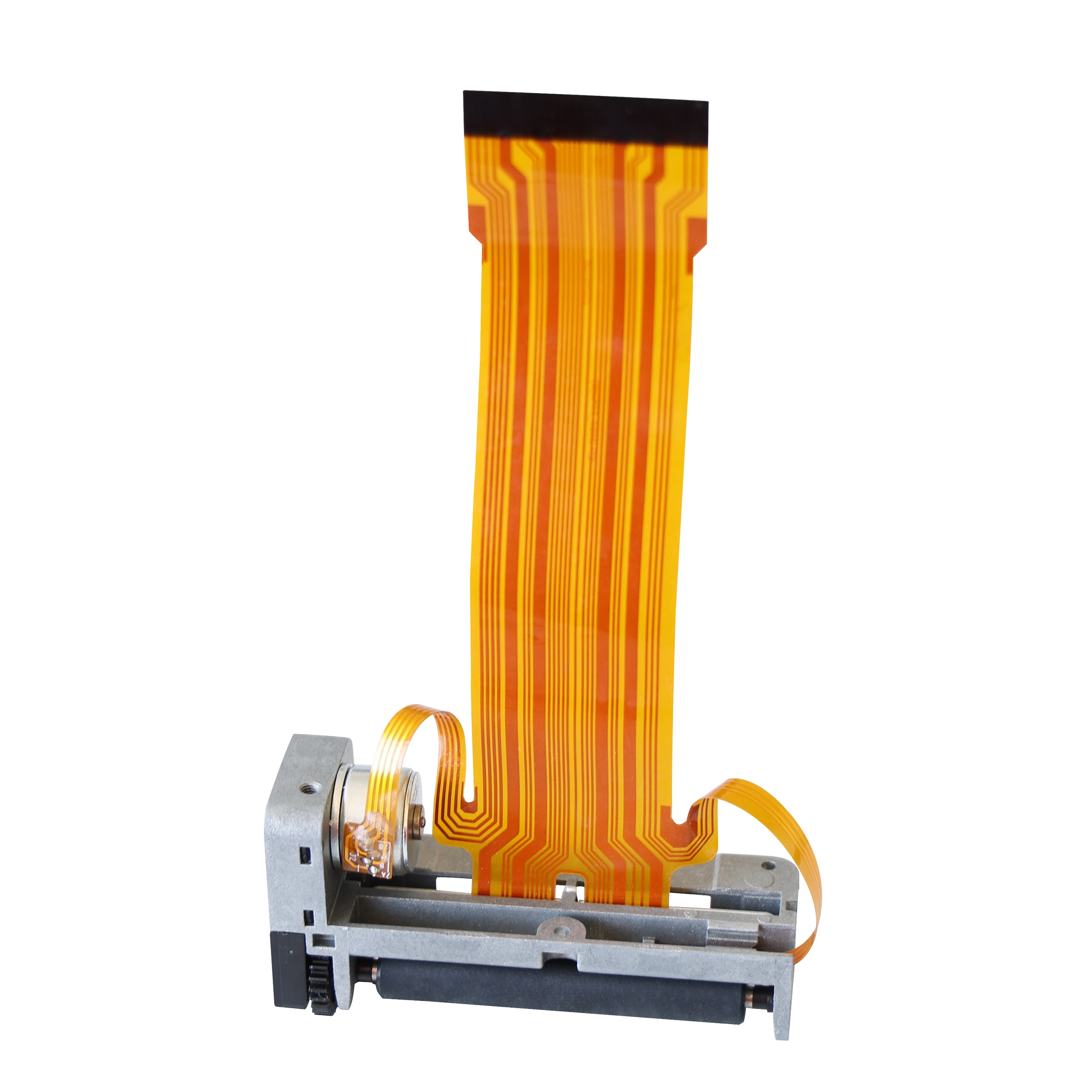

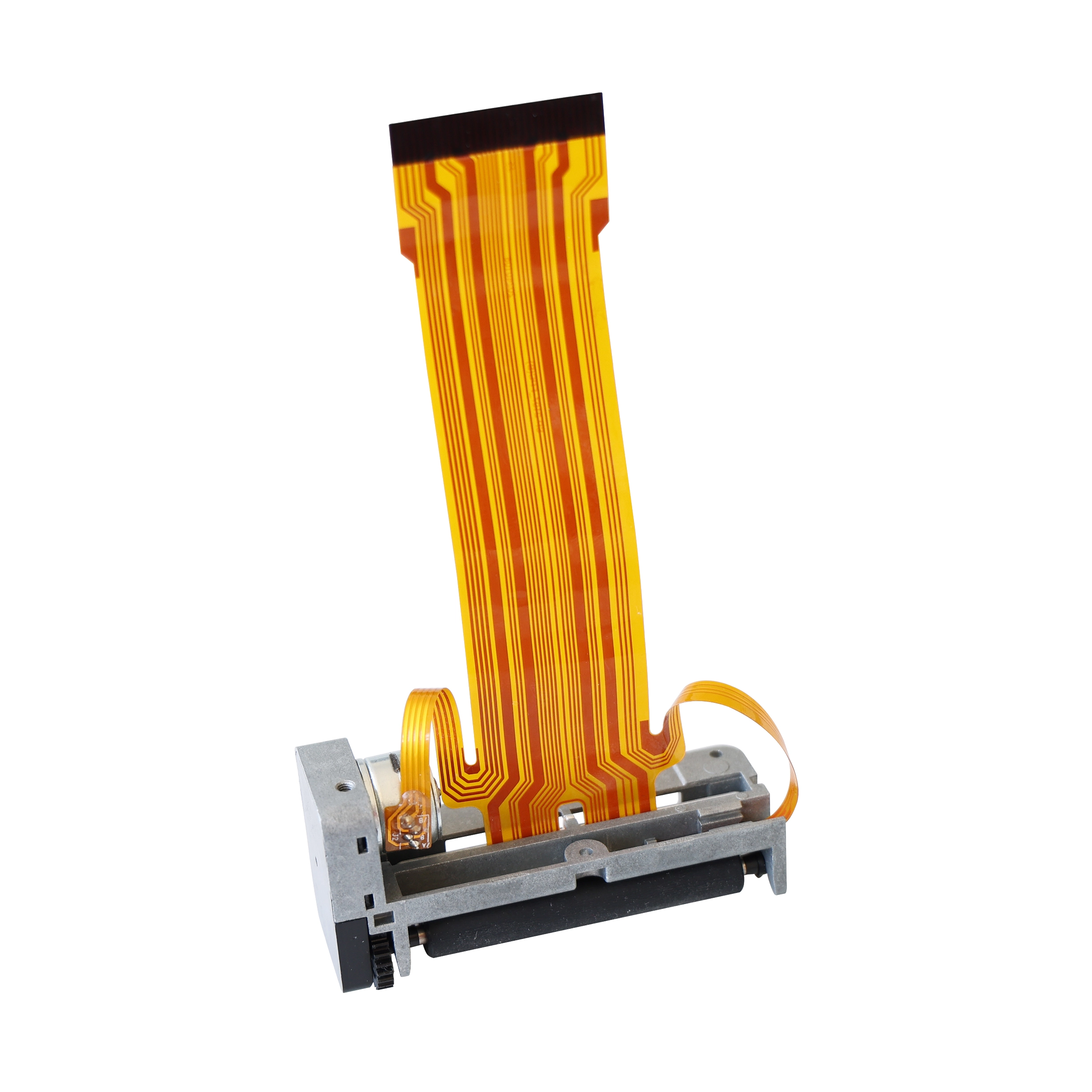

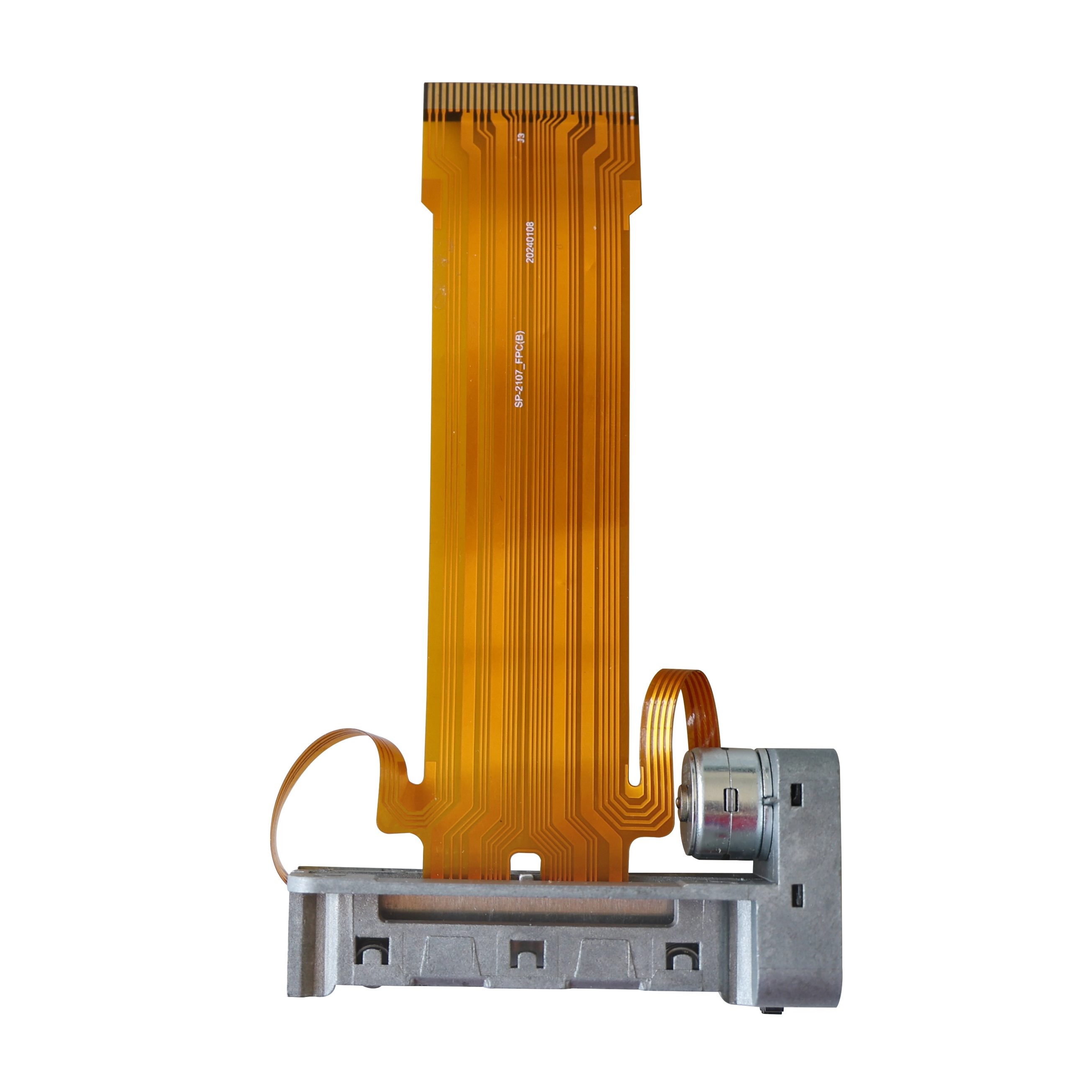

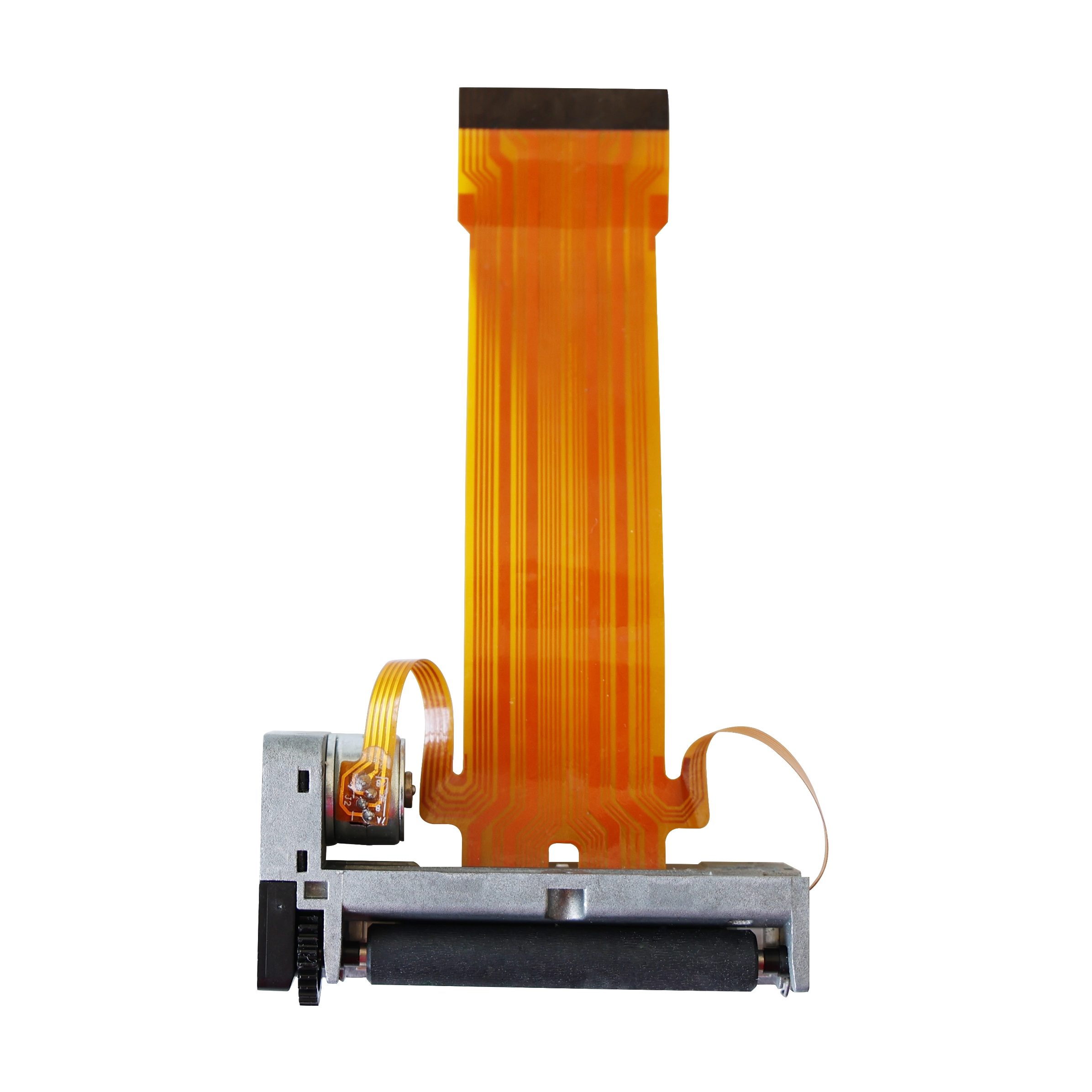

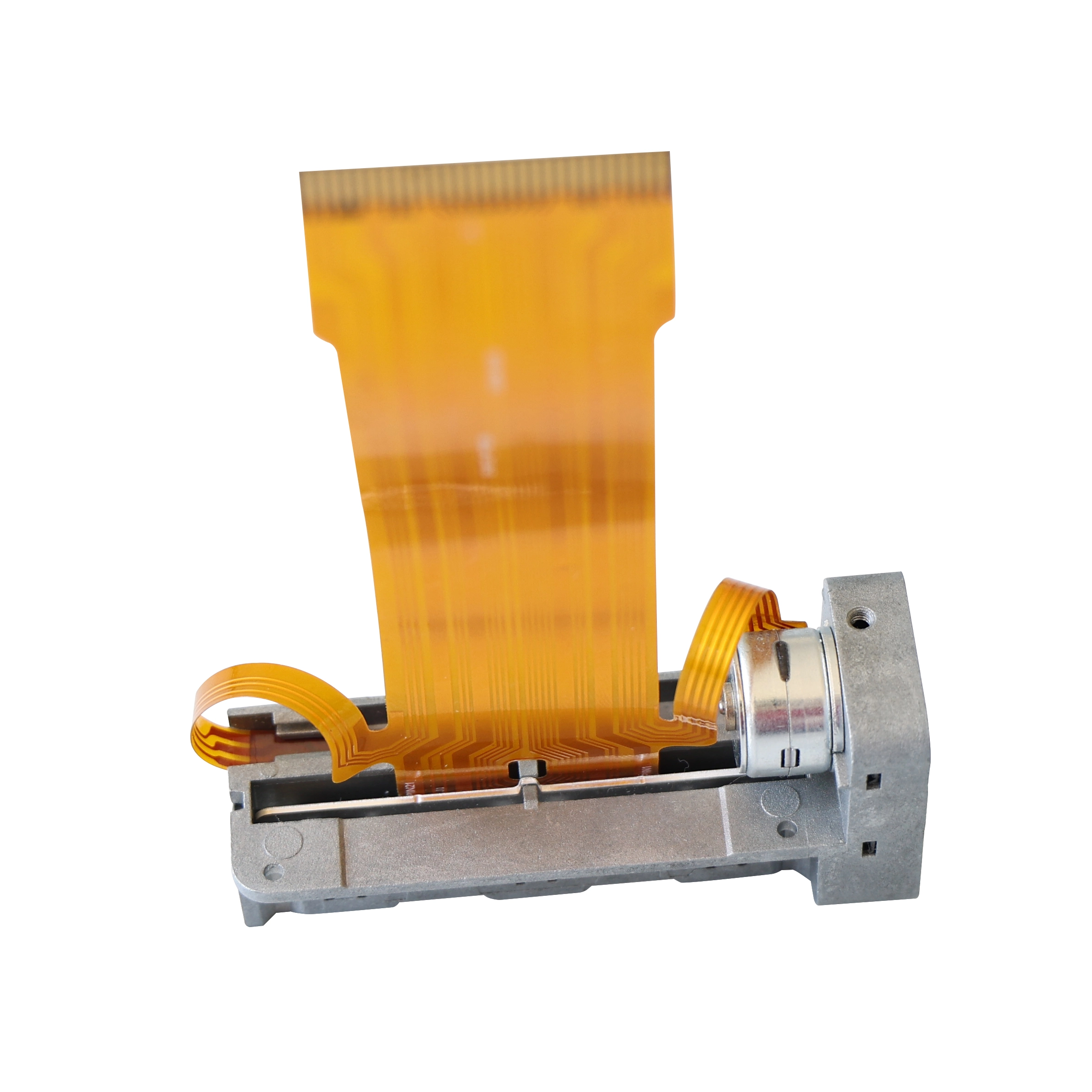

SP-2107 Thermal Printer Mechanism for Receipt Label Mobile Printer

SP-2107 Thermal Printer Mechanism for Receipt Label Mobile Printer

This line thermal printer mechanism is a compact, high-speed printing mechanical device applicable in measurement and analysis instruments, electronic cash register systems, communication equipment, and data terminal equipment, etc.

Model:
SP-2107


Availability:



Inquire

Product Description

Product Introduction

This line thermal printer mechanism is a compact, high-speed printing mechanical device applicable in measurement and analysis instruments, electronic cash register systems, communication equipment, and data terminal equipment, etc.

Product Advantage

1. Wide voltage, high print speed.

Supports operating voltage 4.2-8.5V, maximum print speed 90mm/s.

2. Small platen, compact size, lightweight, strong adaptability and compatibility.

Platen diameter φ8mm, small external size, high-strength large gear. Suitable for various micro thermal receipt printer models.

3. Easy paper loading

Achieves easy paper loading function through the openable and closable platen roller assembly, making paper loading simple.

4. High resolution

High-density thermal head with 8 dots/mm, providing clear printing results.

5. Long life

50km printing length or 100,000,000 pulses printing life (under rated operating conditions).

6. Low noise

Dot line heating printing ensures low noise.

7. Easy thermal head cleaning

Removable print platen assembly makes cleaning the printer thermal head simple.

POS_01 POS_04 POS_05 POS_06 POS_09 POS_11 POS_12 POS_14

Product Parameters

Printing Method	Thermal Line Printing
Dots Per Line	384 dots/line
Resolution	8 dots/mm
Maximum Printing Speed	MAX：90mm/second（8.5V）^*1
Effective Printing Width	48mm
Paper Width	58mm
Paper Thickness	0.06~0.08mm
Paper Step Pitch	0.0625mm
Thermal Head Temperature Detection	Thermistor
Print Platen Position Detection	Not Supported
Paper Detection	Photoelectric Sensor
Heating Head Operating Voltage	4.2-8.5V
Logic Operating Voltage	3-5.5V
Operating Environment Temperature	0℃~50℃（No condensation allowed）^*2
Storage Temperature	-20℃~60℃（No condensation allowed）
Pulse Withstand Life Wear Resistance	100,000,000 pulse or more^*3 50KM or more (excluding damage from dust and other foreign objects)
Dimensions (LWH)	71.924.636mm
Weight	Aprrox. 61g

FAQ

FAQs

Are you a factory or a trading company?

We are a manufacturer. We are located in Beijing, China, and we have our own professional design team, skilled workers, and quality inspection team.
Is it possible to private label your printers?

Absolutely. We can manufacture under your own brand or according to your design. A minimum order quantity is required, which differs by model.
Do your printers work with other languages and different operating systems?

Yes, up to 48 languages are supported, including Russian, Spanish, and Portuguese. They also support iOS, Android, Windows, Linux, and Oppos operating systems.
Can I order a sample before placing a bulk order?

Contact our sales team with the model number and your specific needs. Upon sample order confirmation, we will ship the sample via DHL or FedEx. It is our honor to provide a sample for your evaluation.
Do you offer after-sales support?

You get a full 12-month warranty. For any non-artificial damage within that period, we supply free replacement parts for repair.
