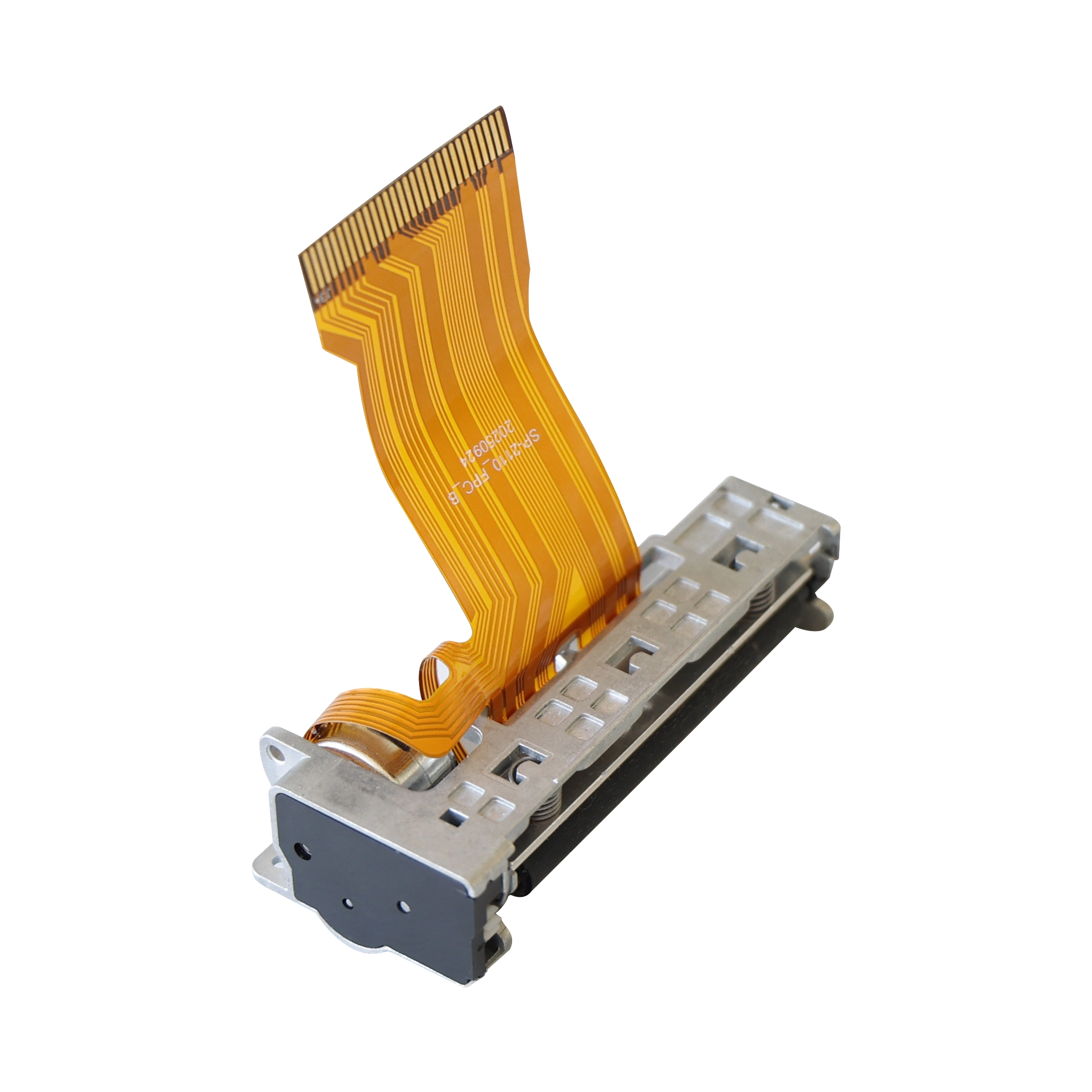

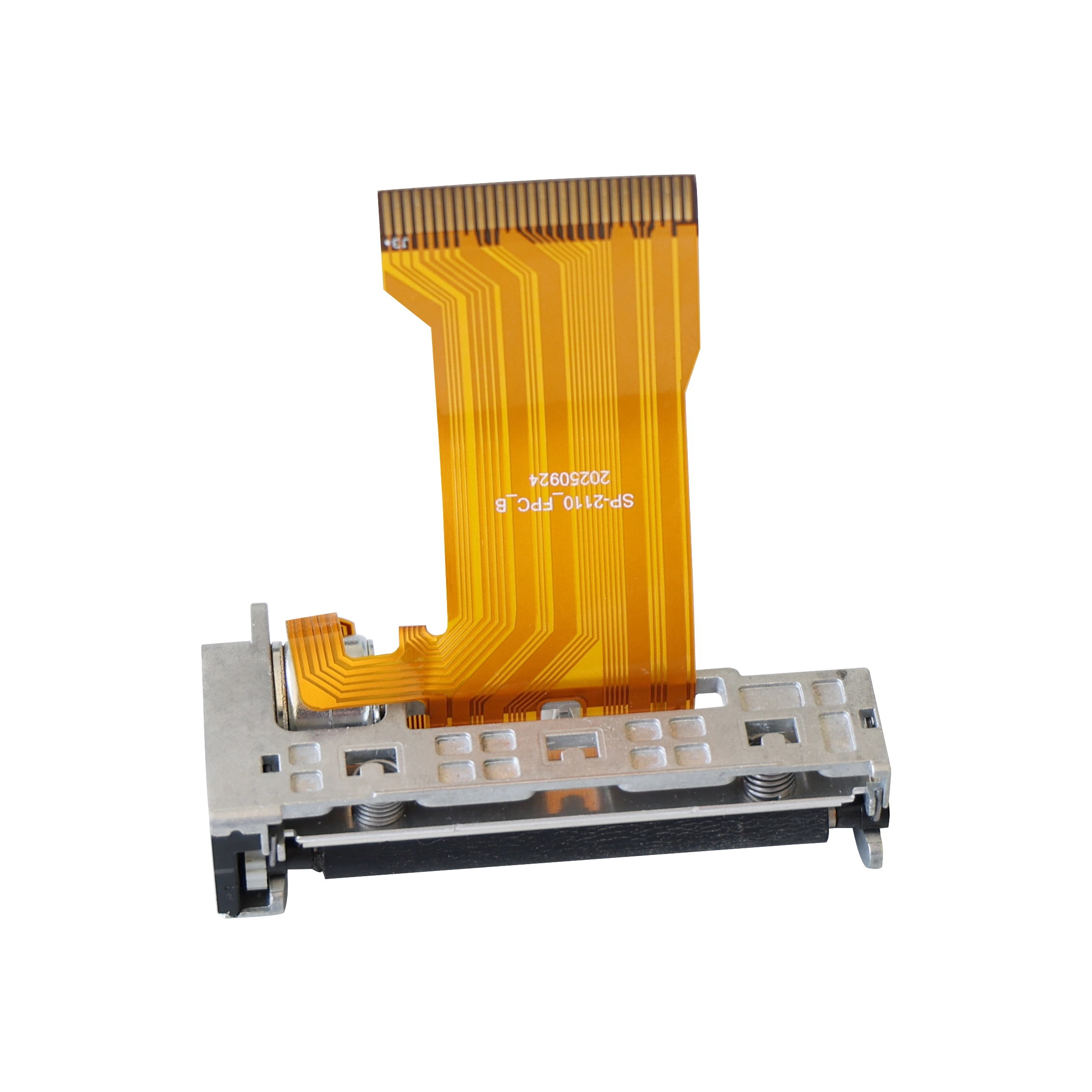

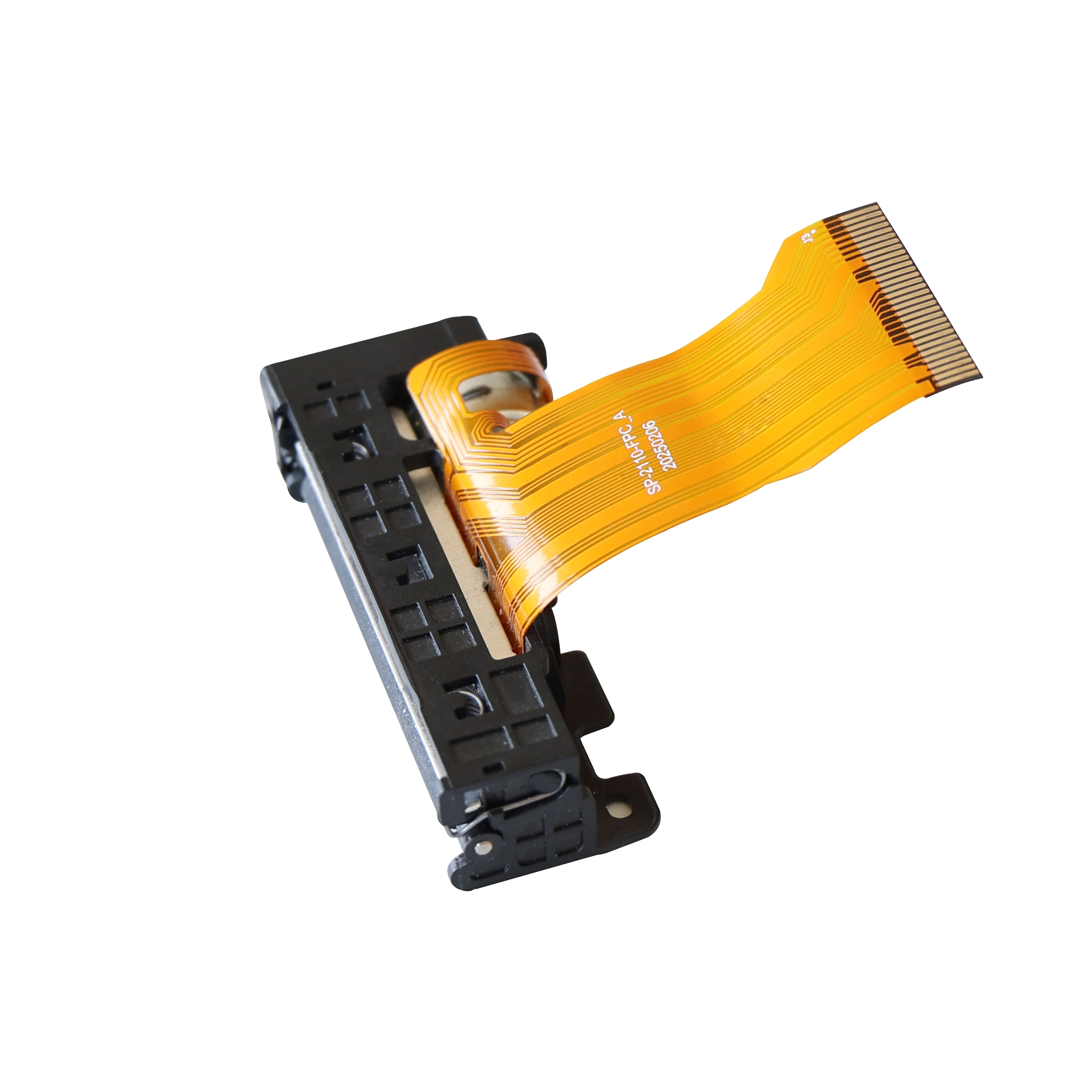

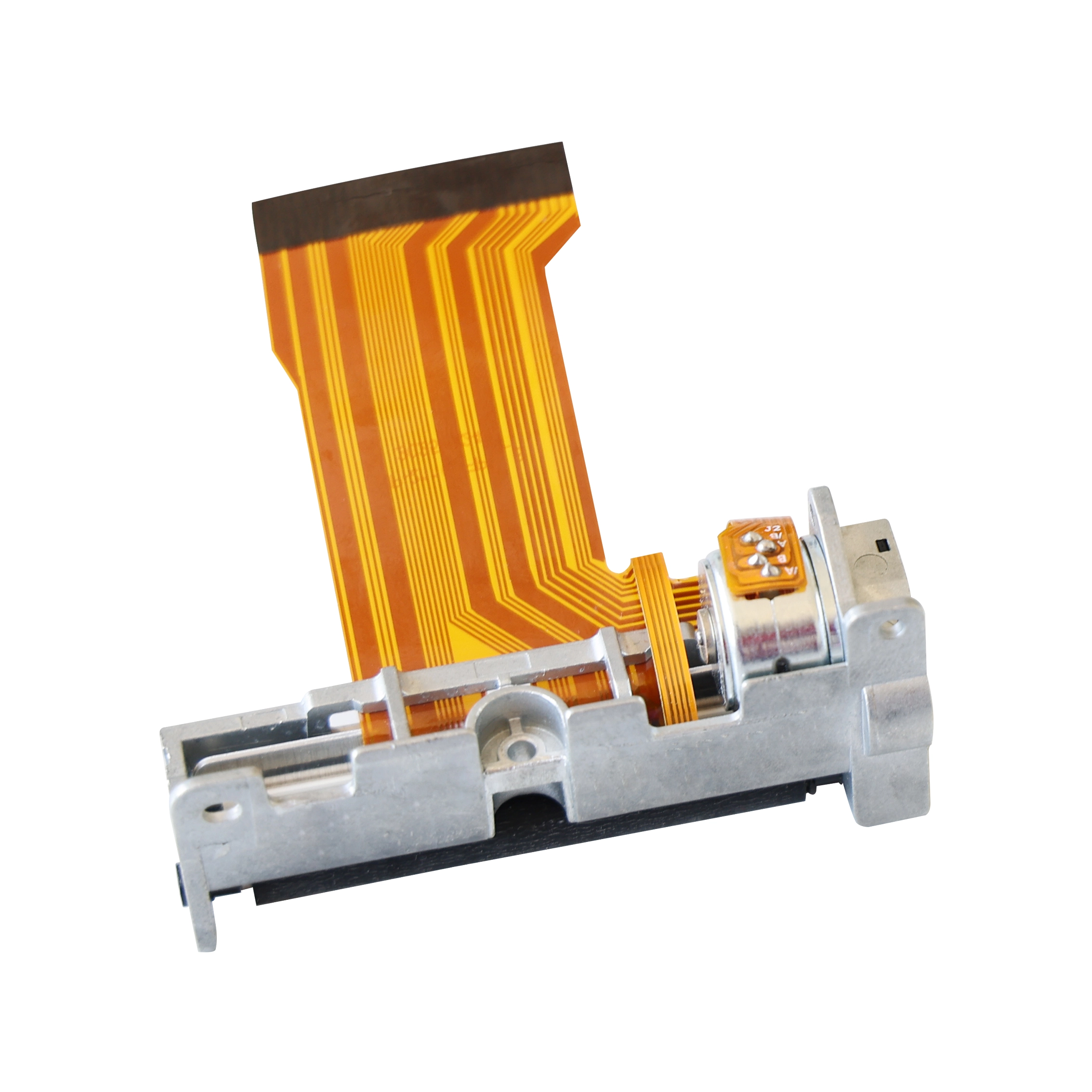

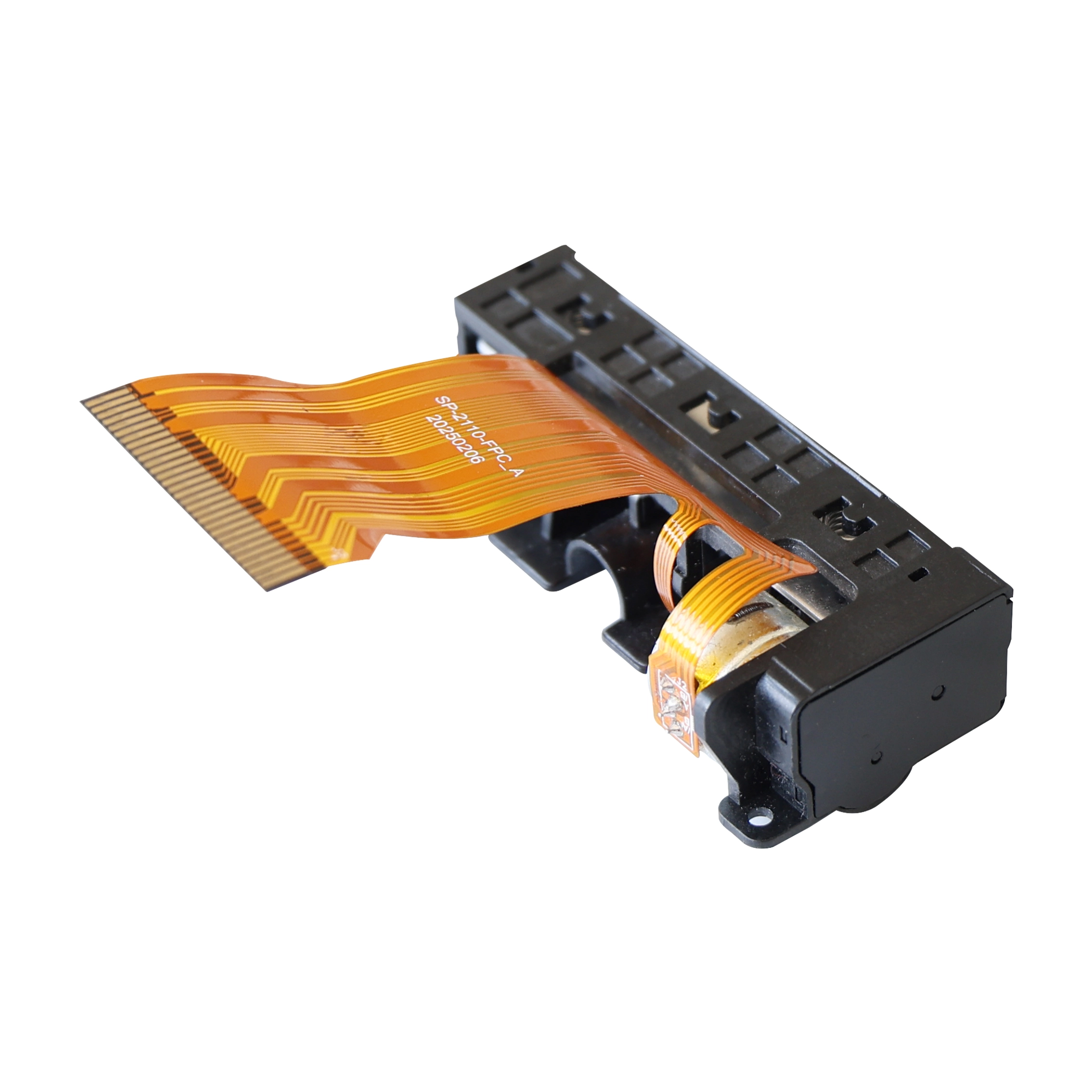

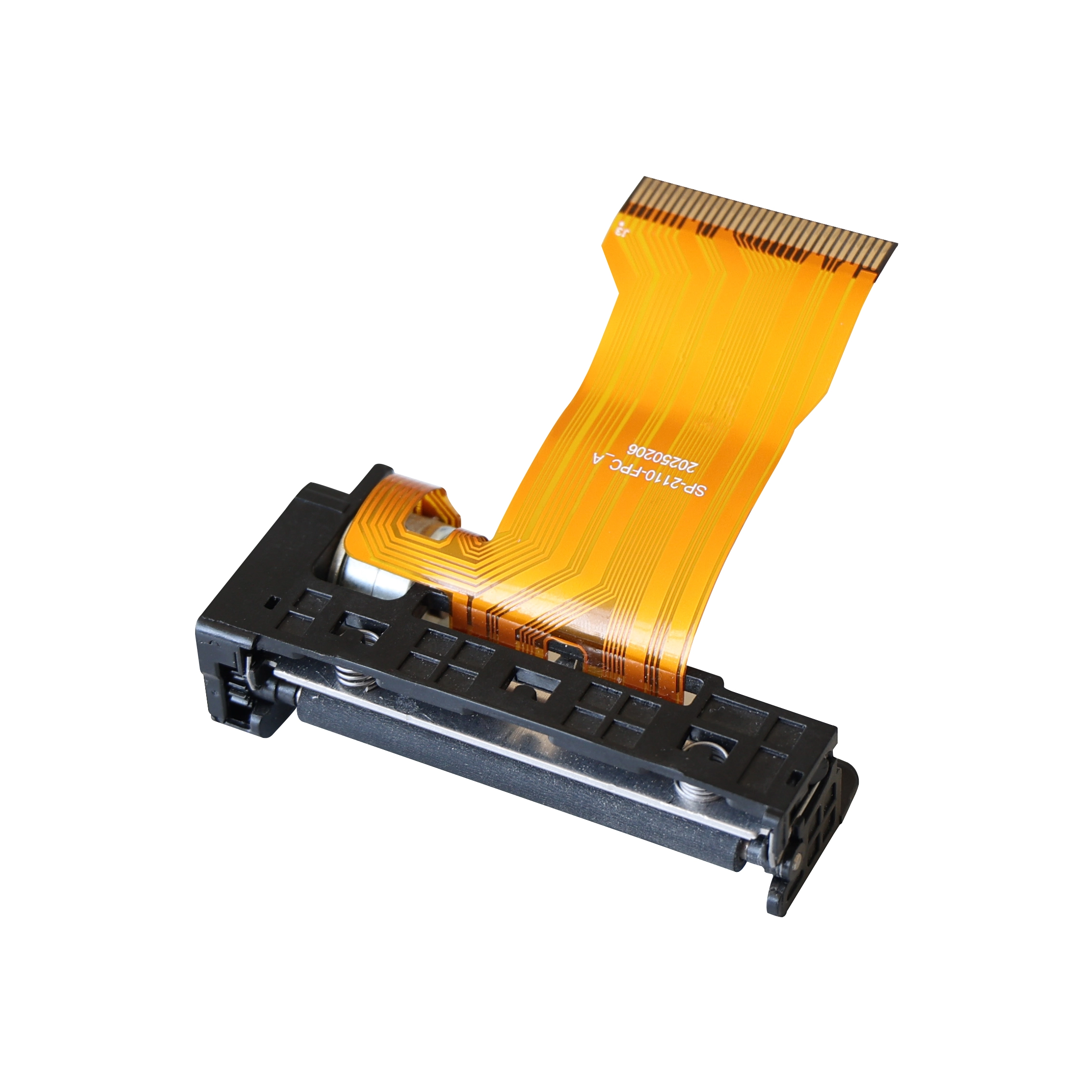

SP-2110A/2110B Thermal Mechanism for Receipt Printer

SP-2110A/2110B Thermal Mechanism for Receipt Printer

This line thermal printer mechanism is a compact and high-speed printing mechanical device, which can be applied to measurement and analysis instruments, electronic cash register systems, communication equipment, data terminal equipment, etc.

Model:
SP-2110A/B


Availability:



Inquire

Product Description

Product Introduction

This line thermal printer mechanism is a compact and high-speed printing mechanical device, which can be applied to measurement and analysis instruments, electronic cash register systems, communication equipment, data terminal equipment, etc.

Mechanism Models

Serial Number	Mechanism Model	Remarks
1	SP-2110	Standard configuration (plastic main bracket, without ground wire)
2	SP-2110A	Plastic main bracket, with ground wire
3	SP-2110B	Metal main bracket, without ground wire

Product Advantage

1. Wide voltage, high print speed.

Supports working voltage of 4.2-8.5V, with a maximum printing speed of 80mm/s.

2. Small rubber roller, small size, light weight and strong compatibility.

The rubber roller has a diameter of ￠6mm, with a small overall size. The structural installation size and interface are compatible with Fujitsu 628MCL701 mechanism, suitable for various micro thermal receipt printer models.

3. Simplified paper loading.

The openable/closable roller assembly enables easy paper feeding, making the process simple.

4. High resolution

8dots/mm high-density thermal head provides clear printing effect.

5. Ultra-long service life

50km printing length or 10⁸ printing life under rated working conditions.

6. Low noise

Dot-line heating printing ensures low noise.

7. Easy cleaning of thermal head

The detachable print rubber roller assembly simplifies the cleaning of the printer's thermal head.

POS_01 POS_04 POS_05 POS_06 POS_09 POS_11 POS_12 POS_14

Product Parameters

Printing Method	Thermal Line Printing
Dots per Line	384 dots/line
Resolution	8 dots/mm
Maximum Printing Speed	MAX: 80mm/s (8.5V)
Effective Printing Width	48mm
Paper Width	58mm
Paper Thickness	0.06~0.08mm
Paper Step Pitch	0.0625mm
Thermal Head Temperature Detection	Thermistor
Print Rubber Roller Position Detection	Not supported
Paper Detection	Photoelectric Sensor
Working Voltage of Heating Head	4.2-8.5V
Logic Working Voltage	3-5.5V
Working Ambient Temperature	0℃~50℃ (No condensation)
Storage Temperature	-20℃~60℃ (No condensation)
Pulse Withstand Life Wear Resistance	10⁸ pulses or more. More than 50KM (Excluding damage from dust and other foreign objects)
Dimensions (LWH)	67.91931.5mm
Weight	Plastic Mechanism 26g，Metal Mechanism 50g
