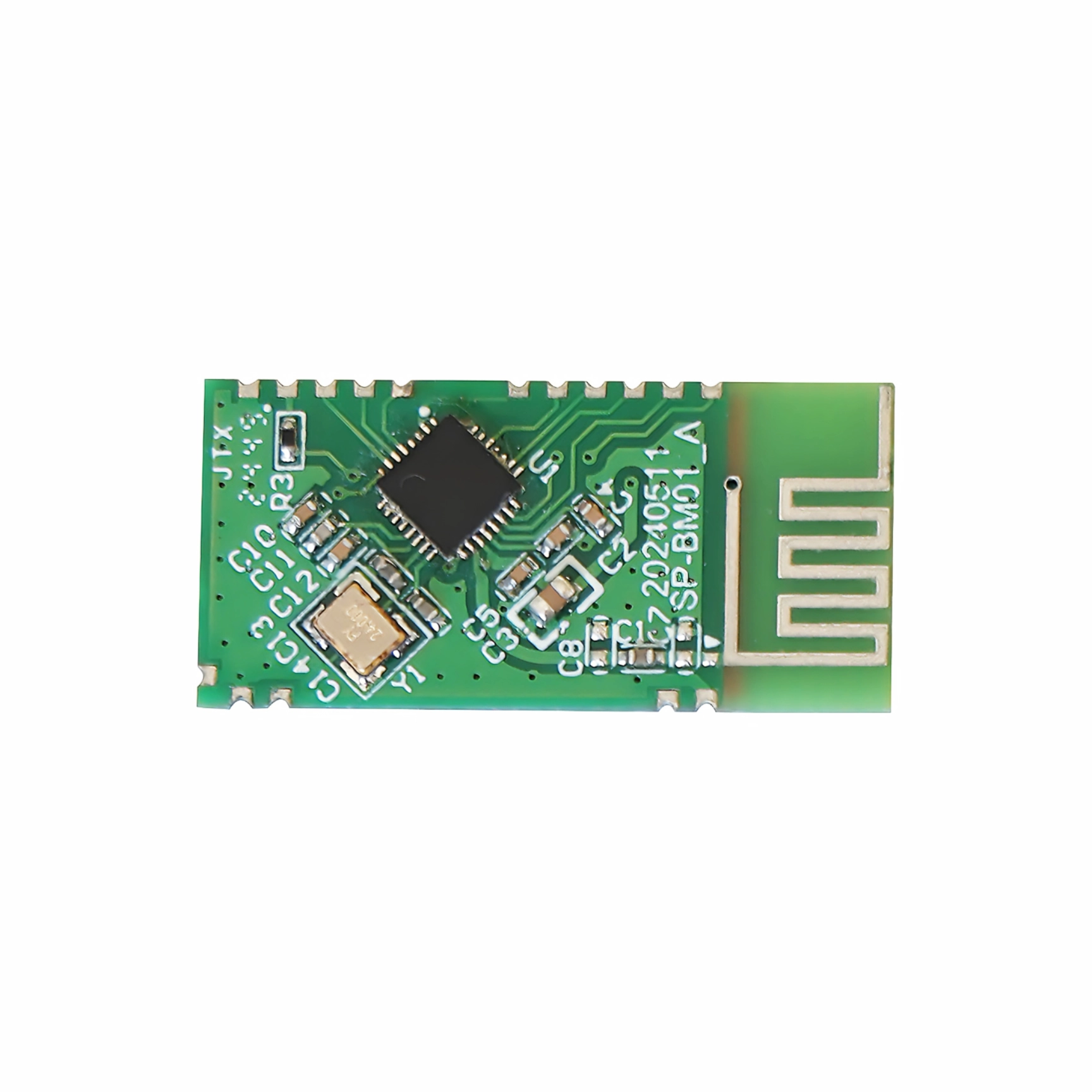

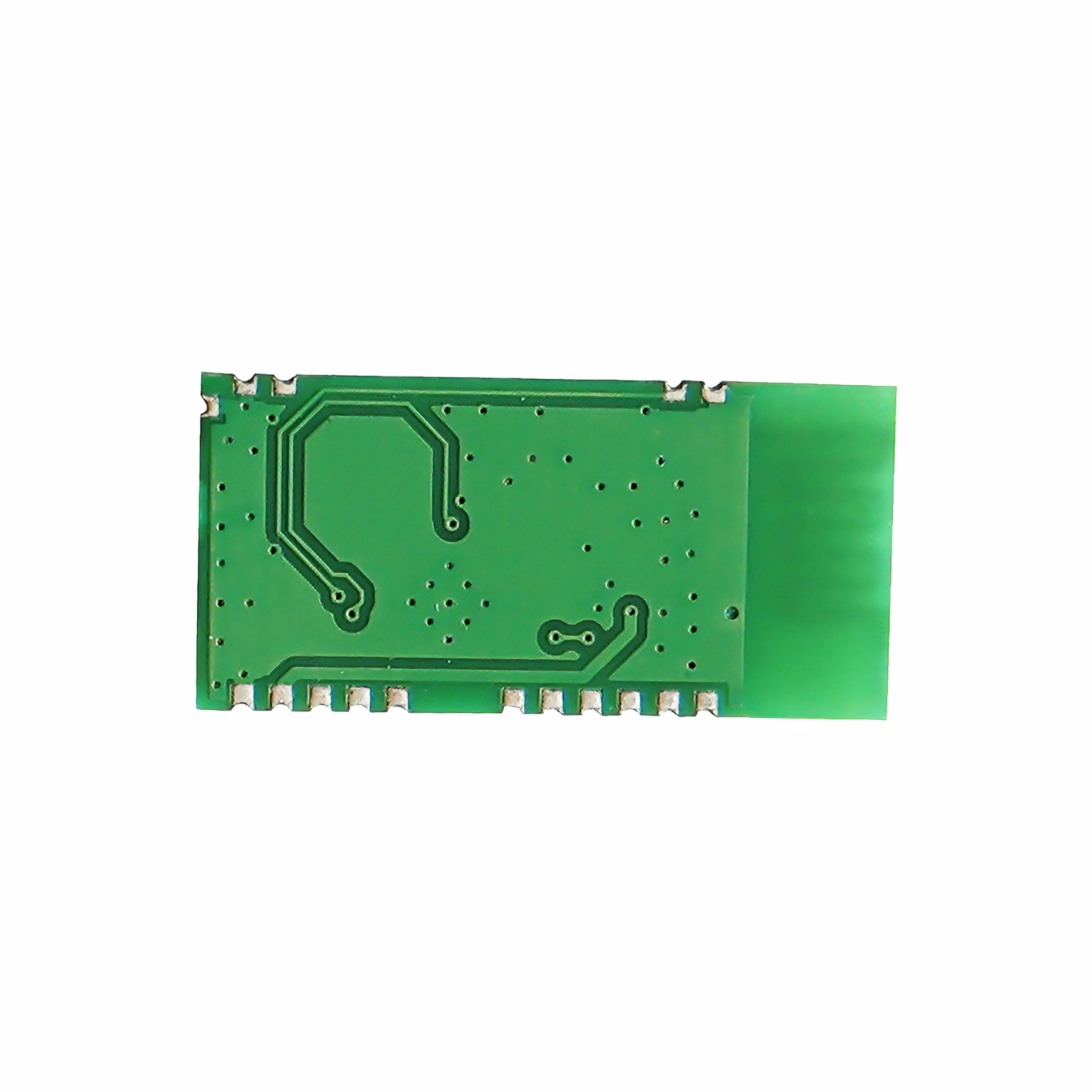

SP-BM01 Bluetooth Module for Thermal Receipt Printer

SP-BM01 Bluetooth Module for Thermal Receipt Printer

The SP-BM01 is a Bluetooth module developed based on the YC3020. It uses a Cortex-M0 core processor and integrates Bluetooth 5.0 dual-mode (BR/EDR + BLE). The module features a dual-core architecture, with the M0 core and BT core operating independently without interfering with each other. It offers excellent architecture, high performance, and ultra-low power consumption. The chip includes 512 KB Flash, 64 KB SRAM, and an 8 KB OTP memory area.

Model:
SP-BM01


Availability:



Inquire

Product Description

Product Introduction

The SP-BM01 is a Bluetooth module developed based on the YC3020. It uses a Cortex-M0 core processor and integrates Bluetooth 5.0 dual-mode (BR/EDR + BLE). The module features a dual-core architecture, with the M0 core and BT core operating independently without interfering with each other. It offers excellent architecture, high performance, and ultra-low power consumption. The chip includes 512 KB Flash, 64 KB SRAM, and an 8 KB OTP memory area.

The module provides an UART programming interface, allowing configuration settings to be read or written via AT commands through UART.

Product Advantage

1. The SP-BM01 is a Bluetooth transparent transmission module. Once the Bluetooth connection is established, it automatically enters transparent transmission mode. When the Bluetooth connection is disconnected, it automatically exits transparent transmission mode.

2. Supports OTA (Over-The-Air) upgrade, allowing the SP-BM01 firmware to be updated via a mobile app.

3. Module configuration can be read or written via AT commands through the UART interface.

4. The UART interface uses hardware flow control to ensure data integrity. Default UART parameters:

Parameter	Value
Baud Rate	230,400 bps
Data Bits	8 bits
Parity	None
Stop Bits	1 bit
Flow Control	RTS/CTS

POS_01 POS_04 POS_05 POS_06 POS_09 POS_11 POS_12 POS_14

Product Parameters

Bluetooth Standard	Bluetooth 5.0
Frequency	2400 MHz ~ 2480 MHz
Interface	UART / GPIO
Transmit Power	6 dBm
Receive Sensitivity	BT4.0 (BLE) -93 dBm; BT3.0 (BT & EDR) -90 dBm
Multi-Connection	BR up to 4; BLE 1
Size	27 mm × 13 mm × 1.7 mm
Operating Temperature	-40 ~ 85 °C
Operating Voltage	3.0 ~ 3.3 V
