Selecting the right panel printer involves much more than simply picking a receipt width. It dictates your device’s chassis design, power budget, and the overall end-user experience. Engineers and product managers face this baseline decision daily. Mismatches here often cause physical clearance conflicts or lead to poorly presented transaction data. Whether you are integrating a component into a self-service kiosk, a medical diagnostic device, or an industrial control panel, choosing between 58mm and 80mm formats is critical.
This guide breaks down the physical, operational, and commercial differences between these standard module sizes. We will help you specify the correct unit for your hardware build. You will learn how to evaluate cutout limits, manage peak power constraints, and optimize the final user interface. Our goal is to ensure you select a mechanism that fits your enclosure perfectly. By understanding these dimensions, you can avoid over-engineering your chassis or under-speccing your hardware performance.
58mm panel printers prioritize space and power efficiency, ideal for diagnostic equipment, handhelds, and basic ticketing.
80mm panel printers deliver standard POS-style readability and branding space, making them the default for self-service kiosks and retail integrations.
Integrating a 58mm auto cutter panel printer or 80mm auto cutter panel printer increases the mounting depth and power draw but significantly reduces paper jam risks in unattended environments.
Your final decision should be driven by a rigid evaluation of panel cutout limits, peak current capacity, and required paper roll diameter.
Hardware teams often underestimate how much a thermal printer dictates the final enclosure design. Device real estate is a strictly limited resource. Selecting an 80mm module means you must allocate a significantly larger panel cutout. You also need greater internal mounting depth to house the wider print mechanism and its corresponding paper bucket. This volume requirement heavily impacts how you route internal cables and position your main PCB.
Information density is another critical factor driving this decision. A 58mm printhead provides roughly two inches of usable horizontal space. It restricts text length per line and limits barcode readability. You must often condense data, which can frustrate end-users reading complex diagnostic results. Conversely, an 80mm width offers about three inches of print area. It easily accommodates complex QR codes, large brand logos, and detailed line items without breaking text into hard-to-read fragments.
Consumable economics also play a pivotal role in operational success. Your customers need reliable access to replacement paper. The 80mm paper roll serves as the global standard for modern point-of-sale systems. This widespread adoption ensures high availability and standardized pricing for your end-users everywhere. While 58mm paper generally costs less per unit, it limits layout flexibility. You must balance the physical space savings against the constraints imposed on your receipt formatting.

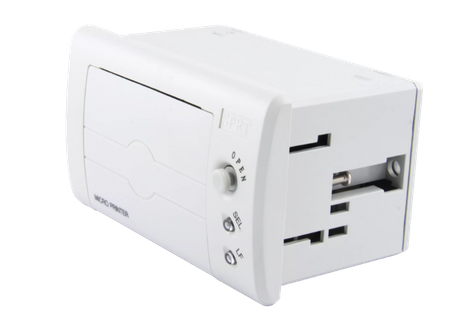

When engineering constraints demand minimal footprint and low power consumption, the 58mm Panel Printer serves as the industry baseline. Its success criteria revolve around maintaining a lightweight profile while delivering reliable data output. Designers choose this format when chassis space is too restricted for larger POS hardware.
Minimal depth requirements: They fit securely into shallow enclosures, requiring very little clearance behind the mounting bezel.
Lower peak current draw: The smaller thermal head requires fewer simultaneous active heating dots. This makes them highly compatible with 5V to 9V systems.
High cost-effectiveness: Due to fewer mechanical components and simpler motor assemblies, they remain highly affordable at scale.
Because of its compact nature, this size is dominant in specialized sectors rather than general retail. Medical and laboratory diagnostic equipment use them to print quick, simple test results. Industrial control panels and data loggers rely on them for localized event tracking. Mobile or battery-operated transaction terminals leverage them to extend battery life between charges.
The narrow print area severely limits complex graphics. If you attempt to scale down standard POS layouts, the resulting text often becomes illegible. A common mistake is cramming high-density QR codes into a 58mm layout. This frequently causes scanning failures for the end-user. Additionally, many ultra-compact units rely on manual tear bars. If you do not design the enclosure bezel well, manual tearing can lead to user error and subsequent paper feed jams.

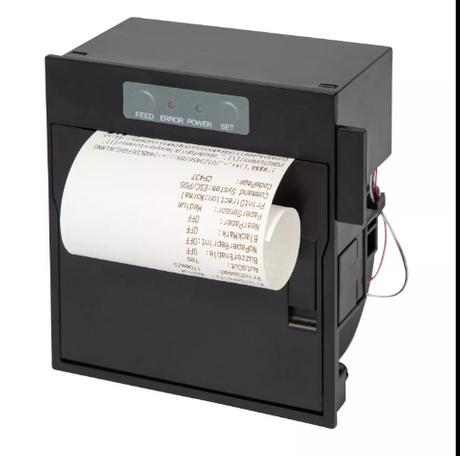

When user experience demands commercial-grade readability and high-volume throughput, the 80mm Panel Printer becomes the standard. It replicates the traditional retail receipt format perfectly. Users expect this familiar layout when interacting with modern self-service terminals.
Standardized user experience: It offers the exact receipt width customers receive at standard grocery or retail checkouts.
Higher performance speeds: Upgraded stepping motors and advanced thermal heads allow print speeds often exceeding 150mm/s.
Enhanced maintenance cycles: The larger module safely accommodates larger diameter paper rolls. This reduces the frequency of staff opening the machine for maintenance.
Engineers default to this size for high-traffic environments. Self-ordering kiosks in quick-service restaurants and retail stores depend on them for readable order tickets. ATMs and parking payment terminals utilize them to display clear financial transaction records. Gaming and lottery machines require the width to print highly detailed, secure bet slips.
These robust units require significant power. You typically need a dedicated 12V to 24V power supply to handle the thermal head's current spikes. A best practice is to isolate the printer's power lines from sensitive logic boards. They also generate more heat during continuous operation. You must design robust thermal management and ventilation paths inside the enclosure to prevent overheating during peak hours.
Specification Metric | 58mm Format | 80mm Format |
|---|---|---|
Standard Operating Voltage | 5V - 9V (DC) | 12V - 24V (DC) |
Typical Print Speed | 50mm/s - 90mm/s | 150mm/s - 250mm/s |
Characters Per Line (Standard) | 32 characters | 48 characters |
Ideal Form Factor | Handhelds, tight enclosures | Freestanding kiosks, ATMs |
Choosing a width is only the first half of the engineering equation. You must also decide how the paper separates from the roll. In unattended environments, the risk of manual tear is severe. Users tearing paper unevenly or yanking it prematurely is the leading cause of printer jams. This single user error can cause total module failure and require a technician dispatch.
To mitigate this, integrating a 58mm Auto Cutter Panel Printer offers a brilliant hybrid solution. It balances a small footprint with crucial jam prevention technology. This variation is ideal for space-constrained ticket dispensers, queue management totems, and hospital check-in points. It protects the printhead from external pulling forces while keeping the overall enclosure relatively small.
For larger deployments, the 80mm Auto Cutter Panel Printer represents the absolute industry standard for unattended self-service. These heavy-duty mechanisms support programmable cutting behaviors. You can configure them for partial cuts, which leave a small tab of paper to prevent receipts from falling onto the floor. You can also configure them for full cuts into a secure dispensing tray.
Implementation Note: Auto cutters add significant mechanical complexity. They incorporate physical blades and secondary motors. This requires deeper physical clearance behind the chassis bezel. Furthermore, you must ensure your MTBF (Mean Time Between Failures) calculations account for cutter lifespan. Industrial cutters are typically rated for 1 to 1.5 million cuts. You should build scheduled replacement intervals into your maintenance plans based on anticipated daily transaction volumes.
To finalize your specification sheet, you must systematically evaluate four specific engineering dimensions. Skipping any of these steps often leads to costly hardware revisions late in the prototyping phase.
Begin by measuring your enclosure's internal clearance meticulously. You need to account for both the mechanism housing and the sweep of the paper roll door. The 80mm mechanisms require a depth that frequently conflicts with internal cabling routes or adjacent PCB placements. Use standard CAD models provided by the manufacturer. Create a digital twin of your enclosure to verify there is enough room to open the module housing for paper reloading.
Thermal printing relies on rapidly heating microscopic dots. This process draws massive peak current during heavy black-pixel printing, such as rendering logos or thick barcodes. Ensure your system's power supply can handle the higher draw of the 80mm variant. It often spikes to 2A–3A at 24V. If your power supply cannot handle this sudden surge, you will experience severe voltage drops. These drops cause system reboots, logic board crashes, or faded print quality.
Hardware logic means nothing if your software cannot communicate with the module. Evaluate the available I/O ports carefully. USB is standard for PC or Android-based kiosk systems. However, RS232 and TTL interfaces remain preferred for direct microcontroller integration in embedded industrial equipment. Ensure the manufacturer provides stable drivers for your target operating system, whether it is Windows, Android, or Linux. Alternatively, confirm they support robust direct ESC/POS command integration for custom software environments.
Maintenance frequency directly impacts operational viability. Larger hardware widths naturally support larger roll diameters. While a small portable device might only hold a 40mm diameter roll, a kiosk should hold an 80mm diameter roll. Calculate the expected transactions per day. Multiply this by the average receipt length. Use this data to determine how often staff must open the panel to replace paper. High-capacity rolls reduce labor friction and improve terminal uptime dramatically.
Sourcing hardware from overseas manufacturers carries inherent risks. You must navigate specification sheets carefully to ensure the product matches its marketing claims. A rigorous vetting process protects your project timeline.
Avoiding "vaporware" specs is your first priority. Verify that advertised print speeds apply to your specific voltage and interface setup. A module might advertise 250mm/s, but it only achieves this under perfect 24V lab conditions with a highly optimized USB driver. If you run it over a slower RS232 baud rate, the actual output speed will bottleneck significantly.
Environmental factors frequently destroy poorly specified modules. Evaluate where the final device will live. If the unit will operate outdoors, in parking garages, or inside high-humidity factory floors, standard electronics will fail. You must request a conformal coating on the printer’s PCB. Evaluate the safe operating temperature range. Cold weather can slow down motor grease, while extreme heat degrades thermal paper before it even hits the printhead.
When finalizing your decision, use this simple shortlisting logic:
If the device is battery-powered, space is extremely tight, or it only prints simple alphanumeric data, default to the 58mm format.
If the device is unattended, runs on mains power, and prints critical financial, retail, or graphical receipts, specify an 80mm auto cutter module.
The choice between a 58mm and 80mm module ultimately hinges on a compromise. You must balance strict enclosure constraints against the required user experience. Compact modules save money and space but limit data layout. Larger modules consume more power and chassis volume but deliver professional, highly readable results. Auto cutters add complexity but drastically reduce the likelihood of field failures in unattended terminals.
Your next step is to audit your internal physical space immediately. Calculate your maximum power budget and document your required receipt data layout. Sketch out how complex your barcodes and logos need to be. Once you have these exact parameters, request physical evaluation units from hardware vendors. Testing the thermal output and power draw on your actual prototype board is the only way to guarantee a successful hardware launch.
A: Yes, but the narrow width strictly limits the size and complexity of the code. Dense QR codes holding a lot of data may suffer from poor scannability if they are not optimized for the smaller printhead resolution.
A: Typically, no. They are designed strictly as OEM hardware modules. They draw power directly from the host machine's internal main power supply or custom distribution board.
A: These terms refer to the communication interface. USB is the plug-and-play standard for PC and Android systems. RS232 and TTL are serial communication protocols preferred for direct microcontroller integration in embedded industrial equipment.
A: Utilize an auto cutter model to eliminate manual tearing. Design a clear, smooth exit chute in the kiosk fascia. Implement anti-pull bezels that physically prevent users from yanking the paper before the cutter finishes its cycle.
