SP-RMD15
SPRT
Product Parameters
| Printing Method | Thermal Line | |
| Printing Speed | 80 mm/s | |
| Resolution | 8 dots/mm (203dpi), 384dots/line | |
| Effective Printing Width | 48mm | |
| Character | Character Set | ASCII, GB18030(Chinese) |
| Print Font | Font A:12×24 Font B:8×16 | |
| Paper Spec | Paper Type | Thermal paper |
| Paper Width | 57.5± 0.5mm | |
| Paper Thickness | 0.06~0.08mm | |
| Paper Roll Diameter | Max: 30.0mm | |
| Roll Core Inner Diameter | 13mm(min.) | |
| TPH | 50km | |
| Barcode | UPC-A，UPC-E，EAN-13，EAN-8，CODE39，ITF25，CODEBAR，CODE93，CODE128 | |
| Emulation | ESC/POS | |
| Interface | RS232 | |
| Paper Supply Method | Drop-in easy paper loading | |
| Power Supply (Adapter) | DC5.0-8.5V, 3A/ DC9-24V, 3A | |
| Physical | Outline Dimension(WxDxH) | 80mm x 75mm x 45mm |
| Installation Port Size | 76.5mm x 72.5mm x 32mm | |
| Weight | 104g | |
| Environment | Operating Temp | 0~ 50 °C |
| Operating Humidity | 20~80% | |
| Application | Medical Analyzer/Geological Analyzer/Receipt | |
| Taxi meters/Industrial Instrument | ||
| Chemical Analyzer/Coupon | ||
| Portable Printers and terminals | ||
| Recorder/Metallic Analyzer/Ticket | ||
Product Description

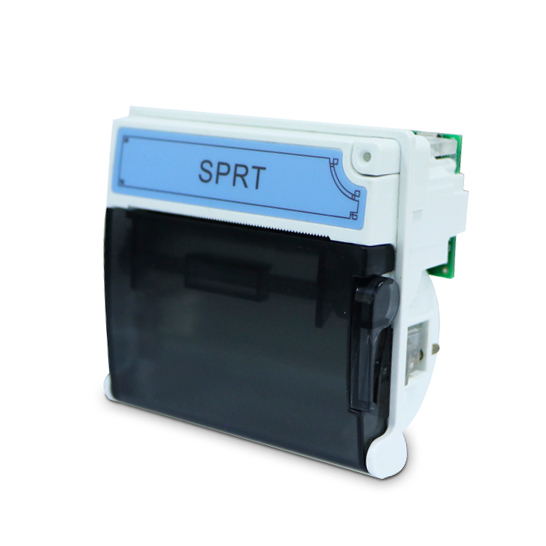

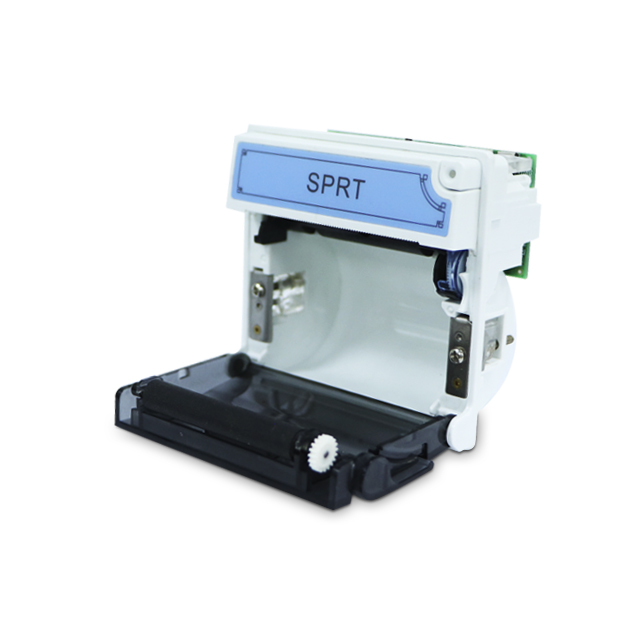

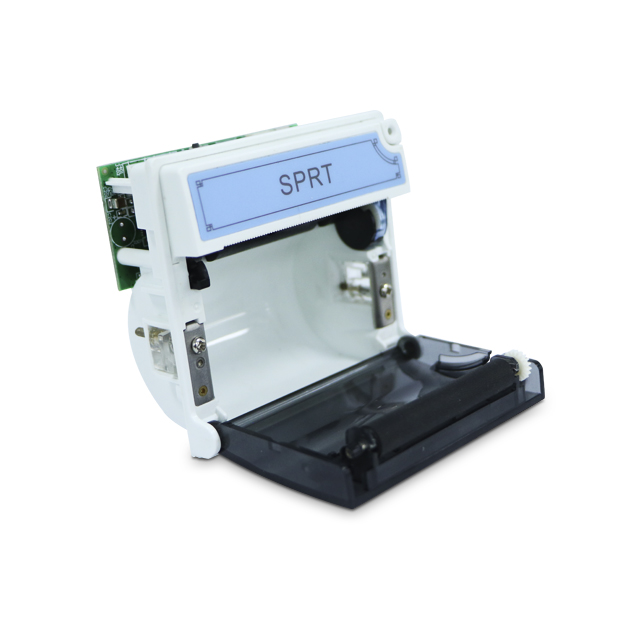

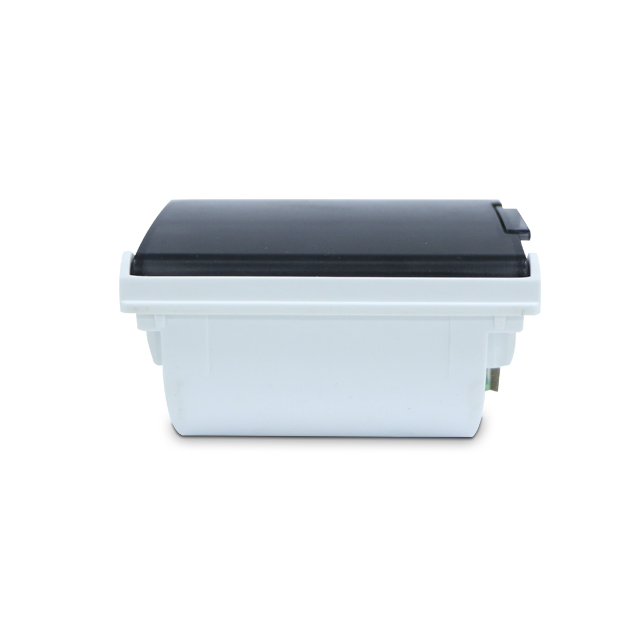

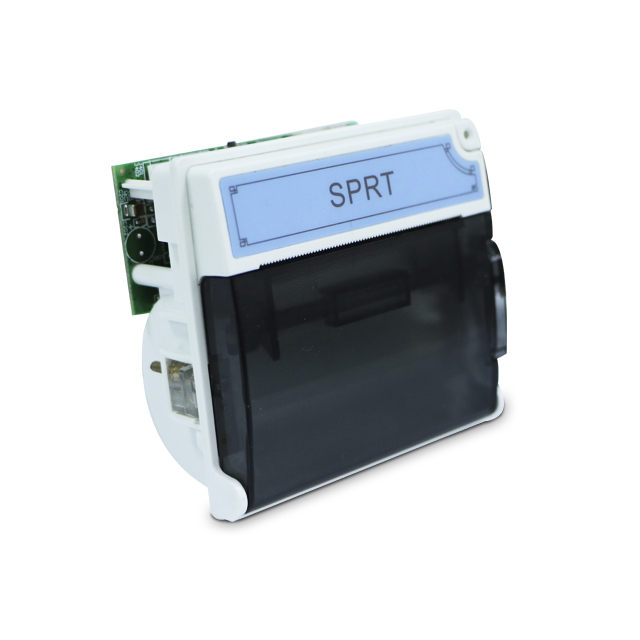

SPRT-RMD15 58mm thermal printer is specifically designed for integration with instruments and meters, featuring a high-speed printing capability of 80mm/s and equipped with paper-out alert and overheat protection to ensure stable and reliable operation. The product offers strong compatibility and comprehensive functionality, and comes with a transparent paper compartment cover for a sleek, modern appearance. It also adopts a front-fixed installation method for easy embedding into various devices. Suitable for applications in medical testing, industrial control, self-service terminals, and more, it provides an efficient, safe, and aesthetically pleasing printing solution.
Designed for intuitive use, ensuring simple setup and straightforward daily handling.
Supports diverse interfaces and system integration, adaptable to various business and industrial environments.
Equipped with a clear paper compartment cover, combining practicality with sleek aesthetics.
Enables secure and space-saving mounting, ideal for embedded and built-in application scenarios.
The compact printer series offers versatile size and functional options tailored for diverse industrial and commercial uses, primarily supporting POS receipt printing and test result output with instruments.
The 58mm model with auto cutter is ideal for fire safety wall-mounted controllers (e.g., in hotels and retail stores), medical diagnostic devices, and environmental monitoring equipment. The 58mm model with auto cutter suits self-service kiosks, bank card terminals, and health monitoring devices such as blood pressure monitors. Meanwhile, the 80mm model with auto cutter is commonly applied in medical check-in systems, bank queue machines, self-service terminals, visitor systems, and point-of-sale machines, delivering reliable performance across automated and transactional environments.
