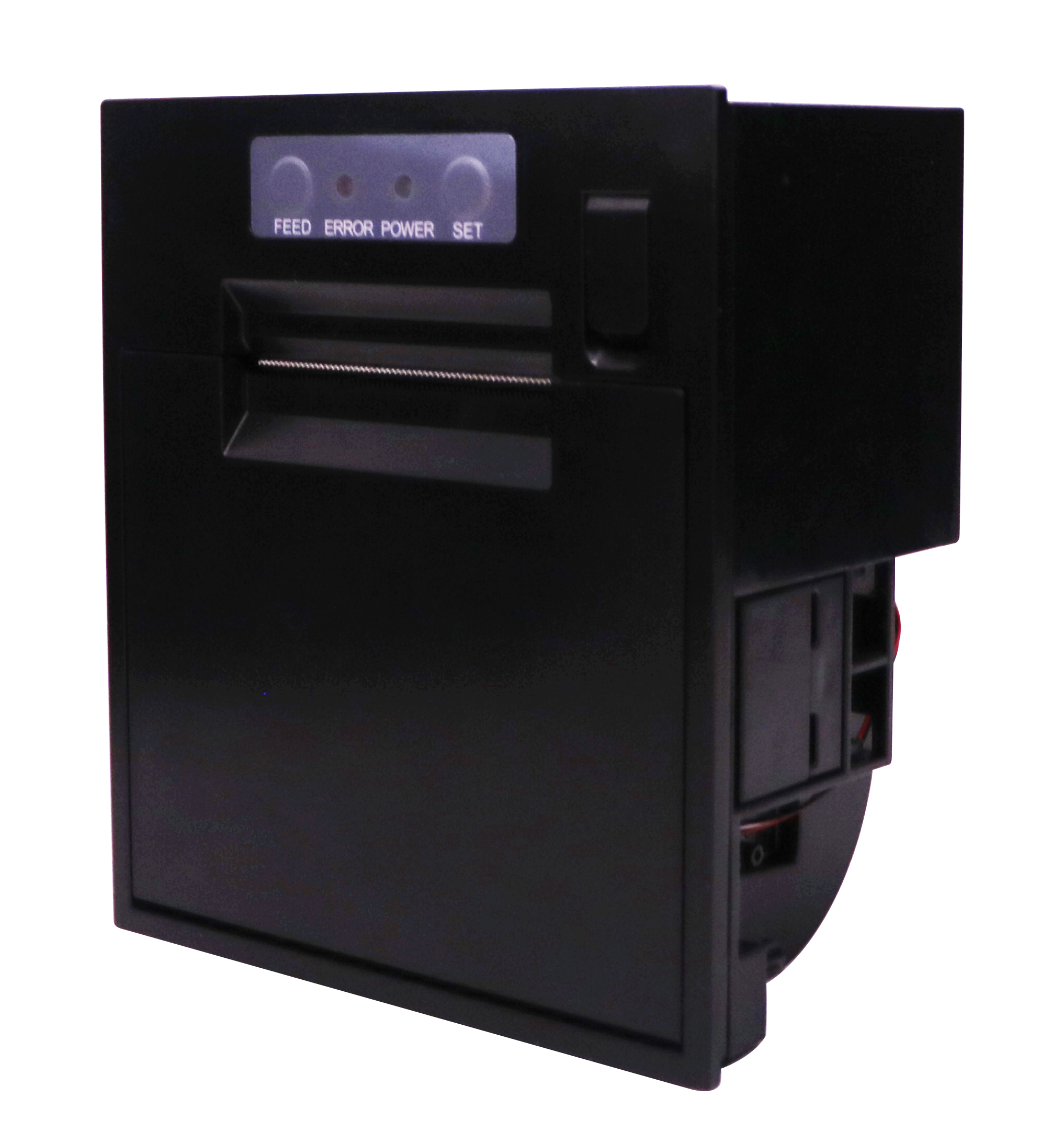

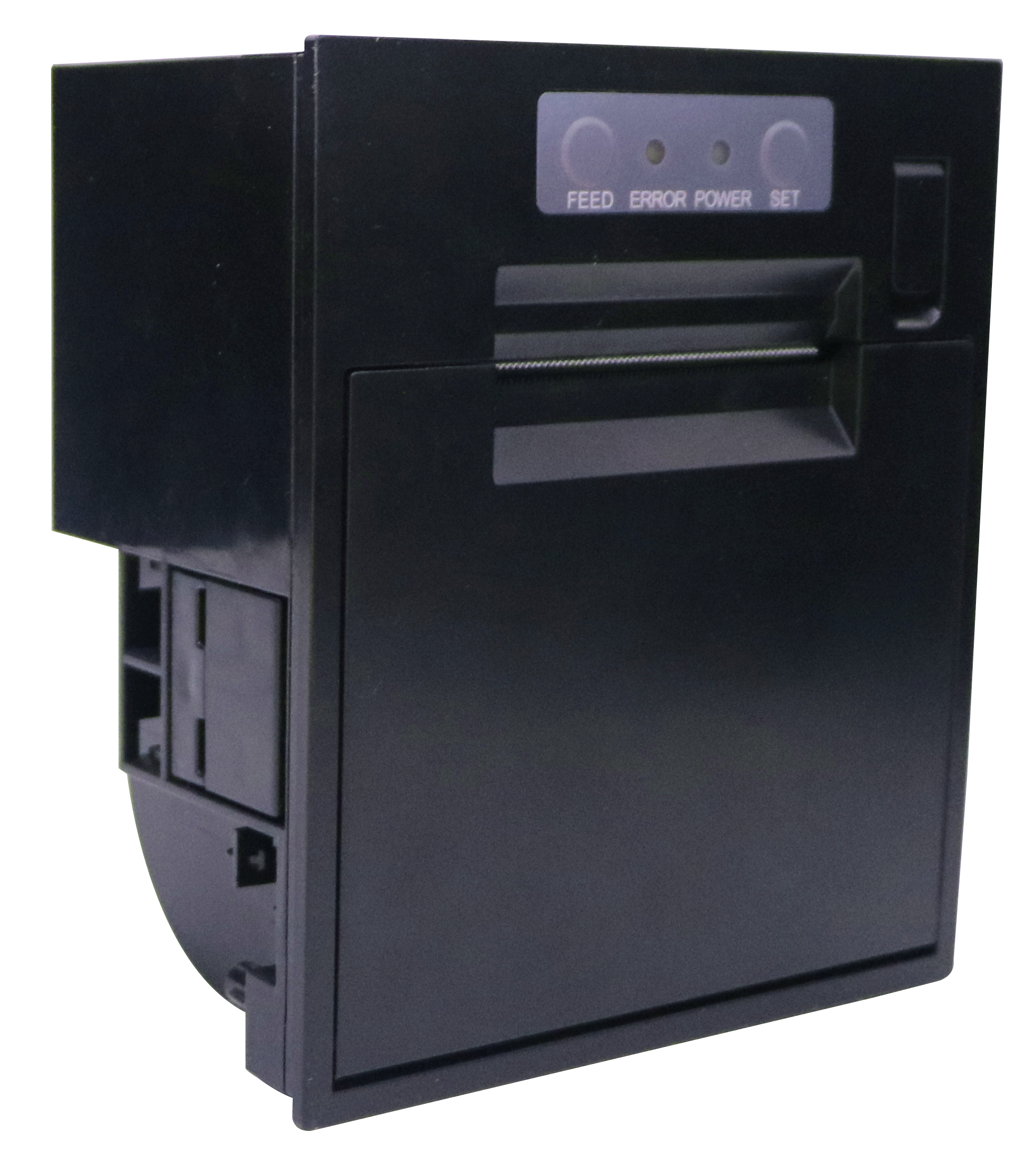

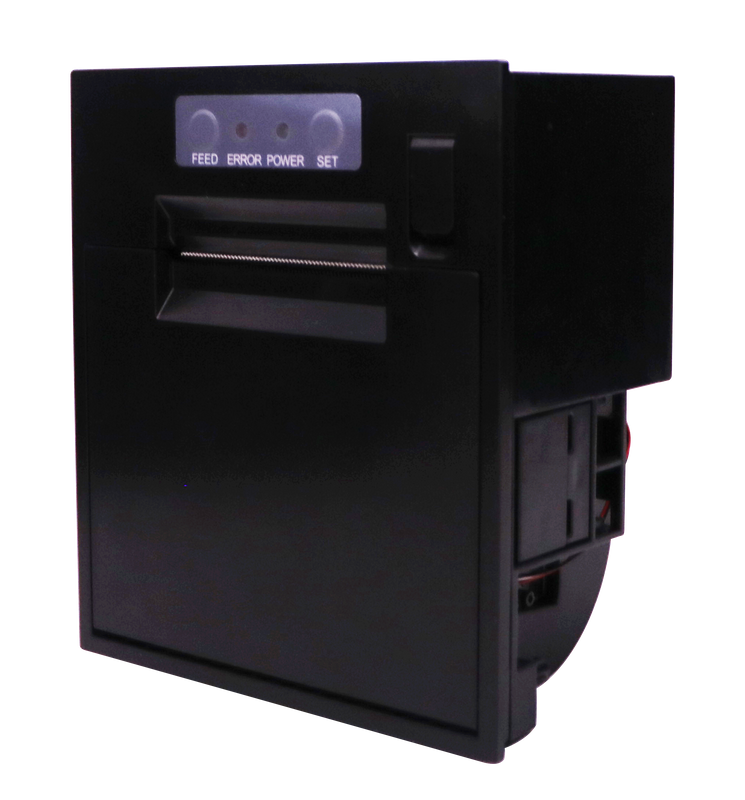

SP-RMD17
SPRT
Product Parameters
| Printing Method | Thermal Line | |
| Printing Speed | 70mm/s | |
| Resolution | 8 dots/mm (203dpi), 384dots/line | |
| Effective Printing Width | 48mm | |
| Character | Character Set | ASCII, GB18030(Chinese) |
| Print Font | ASCII: 12×24; Chinese: 24×24 | |
| Paper Spec | Paper Type | Thermal paper |
| Paper Width | 57.5± 0.5mm | |
| Paper Thickness | 0.06~0.08mm | |
| Paper Roll Diameter | Max: 60.0mm | |
| Roll Core Inner Diameter | 13mm(min.) | |
| TPH | 60km | |
| Barcode | 1D: UPC-A，UPC-E，EAN-13，EAN-8，CODE39，ITF25，CODEBAR，CODE93，CODE128 | |
| Emulation | ESC/POS | |
| Interface | RS232/Parallel/USB/BT(Reserved) | |
| Paper Supply Method | Drop-in easy paper loading | |
| Power Supply (Adapter) | DC 12V±10%, 2A | |
| Physical | Outline Dimension(WxDxH) | 132mmx115mm×79.5mm |
| Installation Port Size | 128.5mm×111.5mm(L×W) I Depth:77mm | |
| Environment | Operating Temp | 0~ 50 °C |
| Operating Humidity | 20~80% | |
| Application | Medical Analyzer/Geological Analyzer/Receipt | |
| Taxi meters/Industrial Instrument | ||
| Chemical Analyzer/Coupon | ||
| Portable Printers and terminals | ||
| Recorder/Metallic Analyzer/Ticket | ||
Product Description
SP-RMD17 is engineered with anti-static protection to ensure stable operation in sensitive environments, alongside a large-gear design that effectively reduces mechanical wear and extends product lifespan. Its innovative front-open cover structure allows for easier paper loading and significantly decreases the frequency of paper replacement, enhancing both convenience and operational efficiency. Suitable for a wide range of applications, it is commonly used in self-service terminals, medical testing devices, and industrial manufacturing systems, providing reliable and durable printing performance across diverse fields. Compact, user-friendly, and built for continuous operation, it delivers consistent quality in demanding settings.

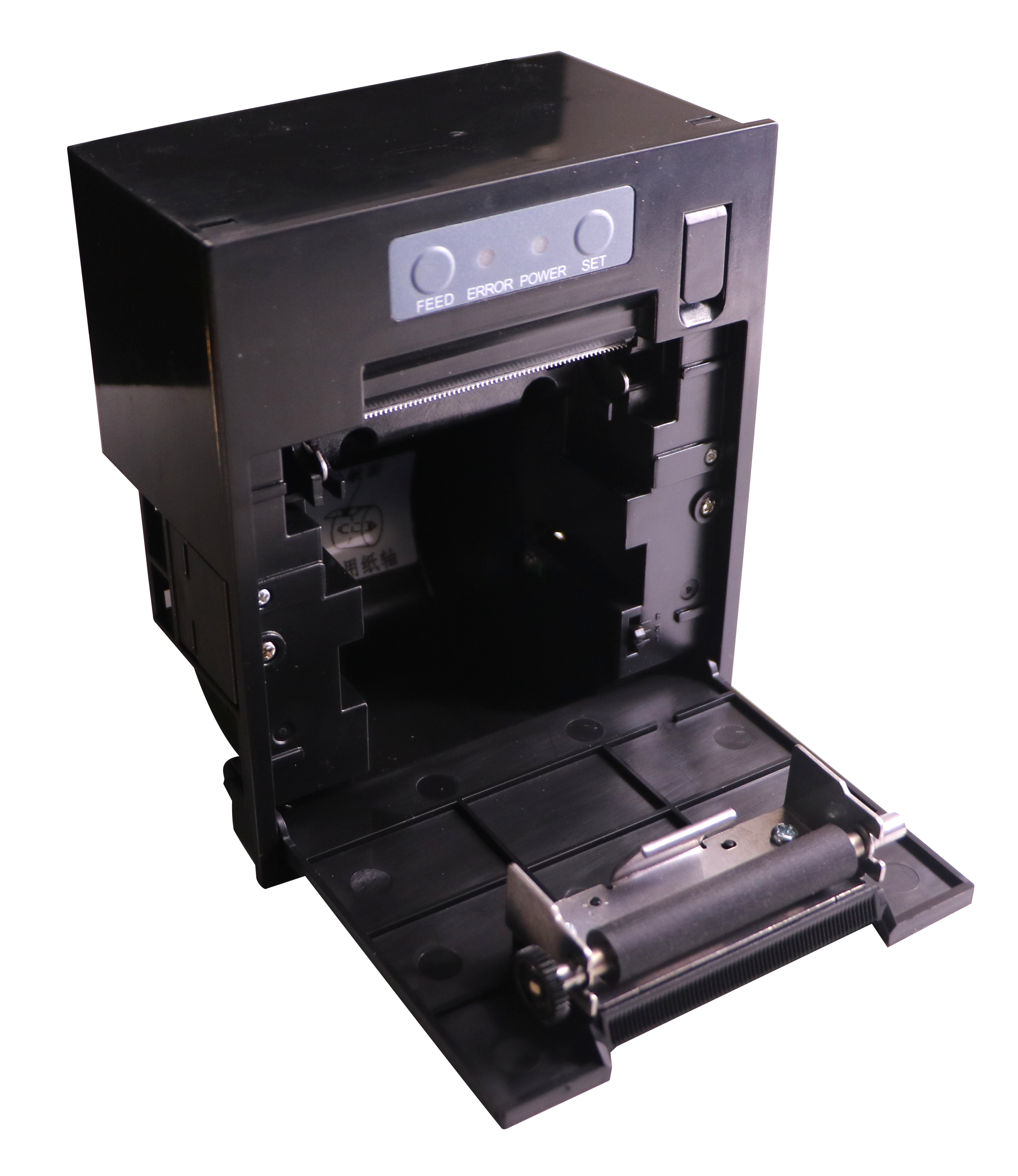

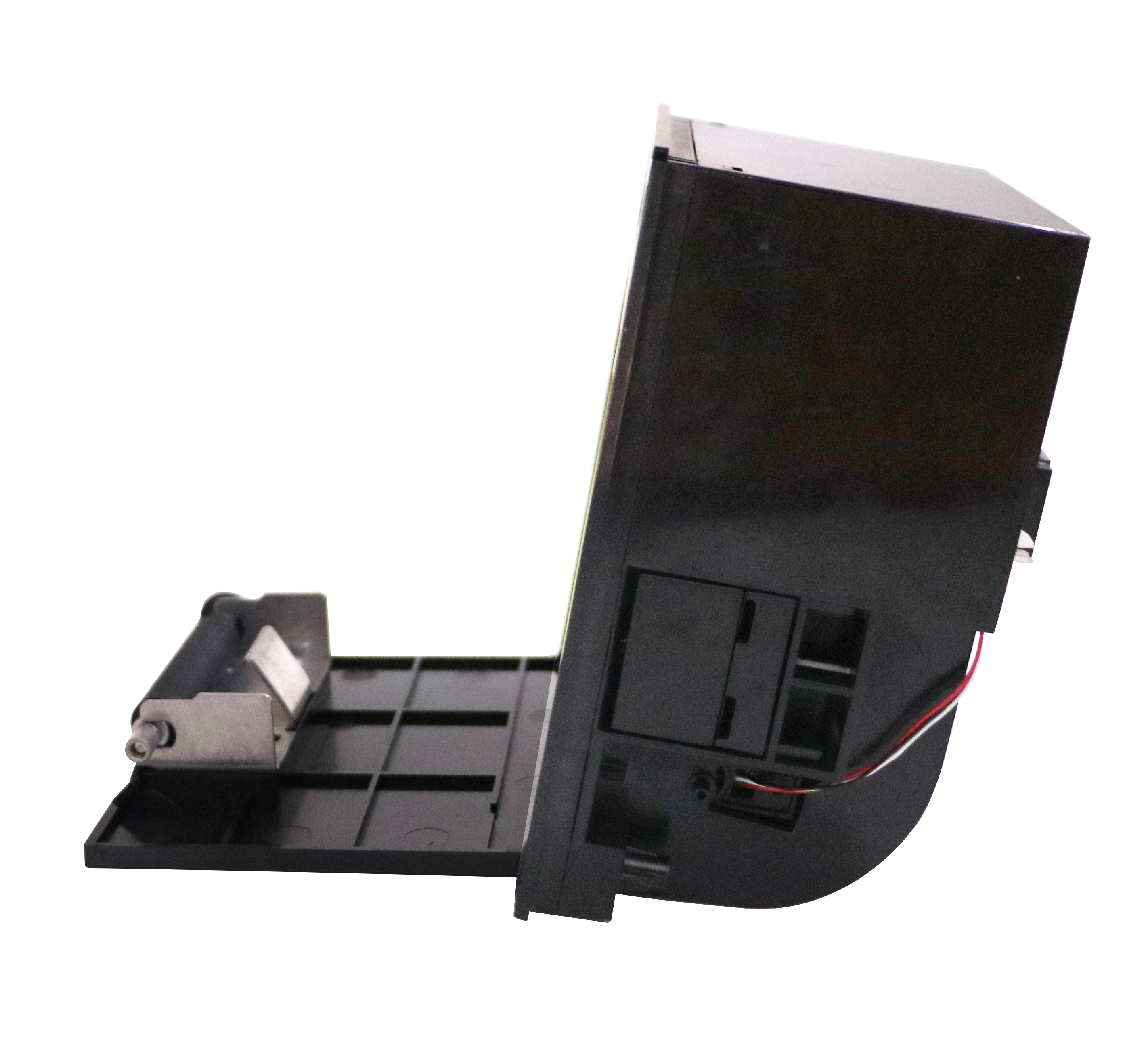

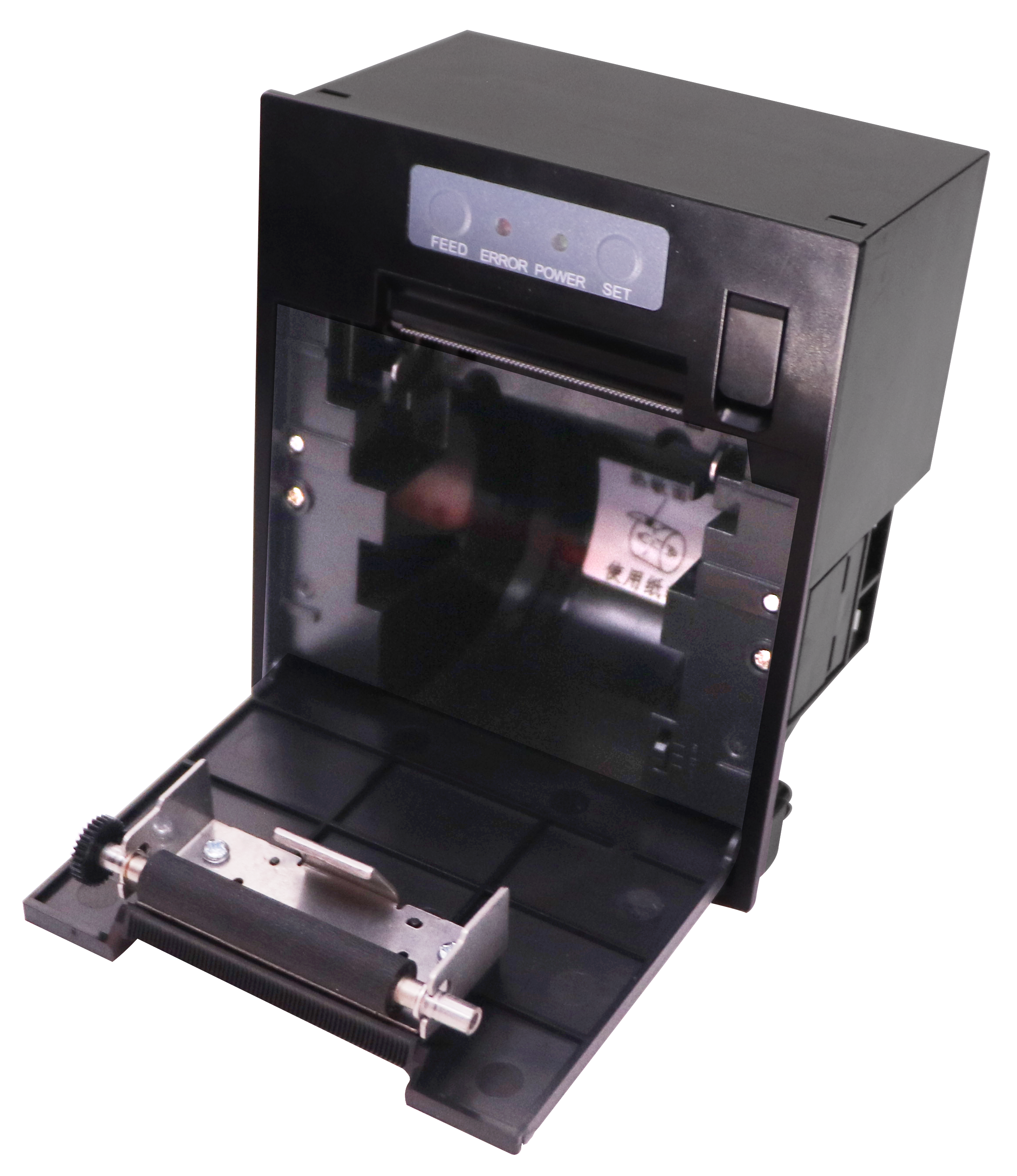

Opening Cover – Reduces mechanical wear and tear while saving valuable integration space in compact setups.
Ensures safe, stable, and efficient operation in varied environments.
Printhead – Offers compatibility with common receipt/label paper, with a printhead lifespan of up to 60km.
The compact printer series offers versatile size and functional options tailored for diverse industrial and commercial uses, primarily supporting POS receipt printing and test result output with instruments.
The 58mm model with auto cutter is ideal for fire safety wall-mounted controllers (e.g., in hotels and retail stores), medical diagnostic devices, and environmental monitoring equipment. The 58mm model with auto cutter suits self-service kiosks, bank card terminals, and health monitoring devices such as blood pressure monitors. Meanwhile, the 80mm model with auto cutter is commonly applied in medical check-in systems, bank queue machines, self-service terminals, visitor systems, and point-of-sale machines, delivering reliable performance across automated and transactional environments.
